Toe-In Adjustment (Front)

Ensure steering wheel is centered. Loosen tie rod end adjusting sleeve clamp bolts or lock nuts. Turn adjusting sleeve or tie rod to adjust toe-in. Tighten tie rod end adjusting sleeve clamp bolt or lock nut. On Crown Victoria, Grand Marquis or Town Car, see Fig 1.

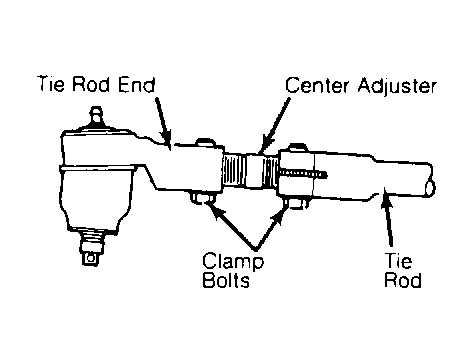

Fig 1: Adjusting Front Toe-In (Crown Victoria, Grand Marquis & Town Car)

Courtesy of FORD MOTOR CO.
