Service Intervals & Specifications

REPLACEMENT INTERVALS

Component Interval (Miles)
Air Filter 30,000
Automatic Transmission Fluid 30,000
Cam Timing Belt 60,000
Coolant 30,000
Crankcase Ventilation Filter 30,000
Manual Transmission Oil 60,000
Oil & Filter 7500
PCV Valve 60,000
Spark Plugs (1)
California 60,000
All But California 100,000
Spark Plug Wires 60,000
Transfer Case Oil 60,000
(1) Replace spark plugs at 60,000 miles for California and states that, under the authority of Section 177 of the Clean Air Act, have adopted and placed into effect the California standards. Replace spark plugs at 100,000 miles for all others.
BELT ADJUSTMENT

Application (1) New Belt Lbs. (kg) (2) Used Belt Lbs. (kg)
4.0L (3) (3)
(1) When checking belt routing and tension, refer to appropriate illustration. See Fig 1 & 2.
(2) Any belt operated for 10 minutes.
(3) Tension is correct if indicator is within limit marks.

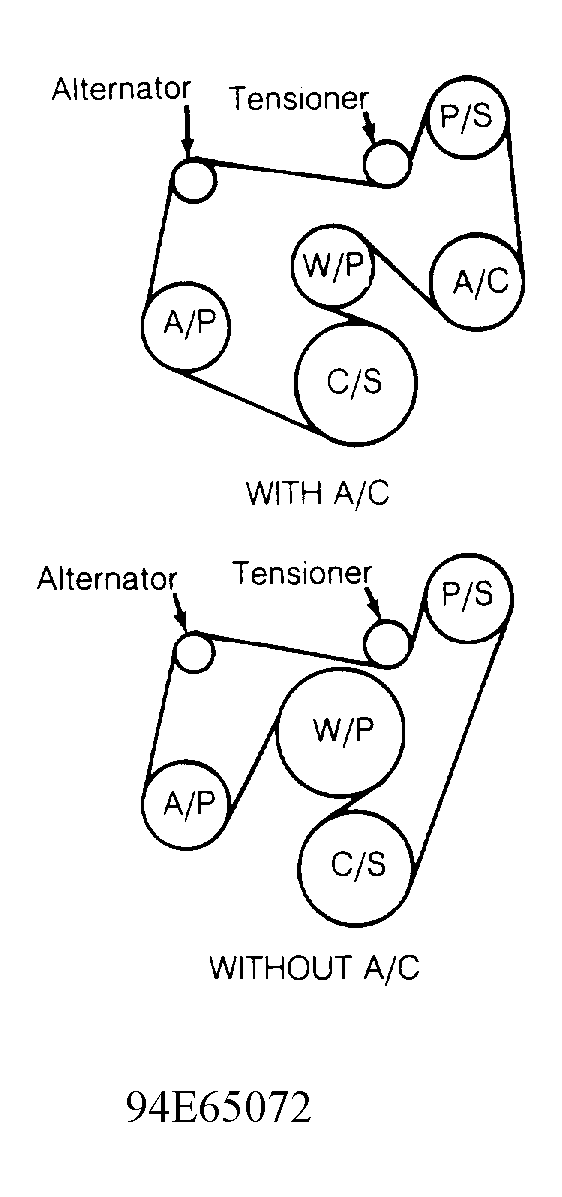

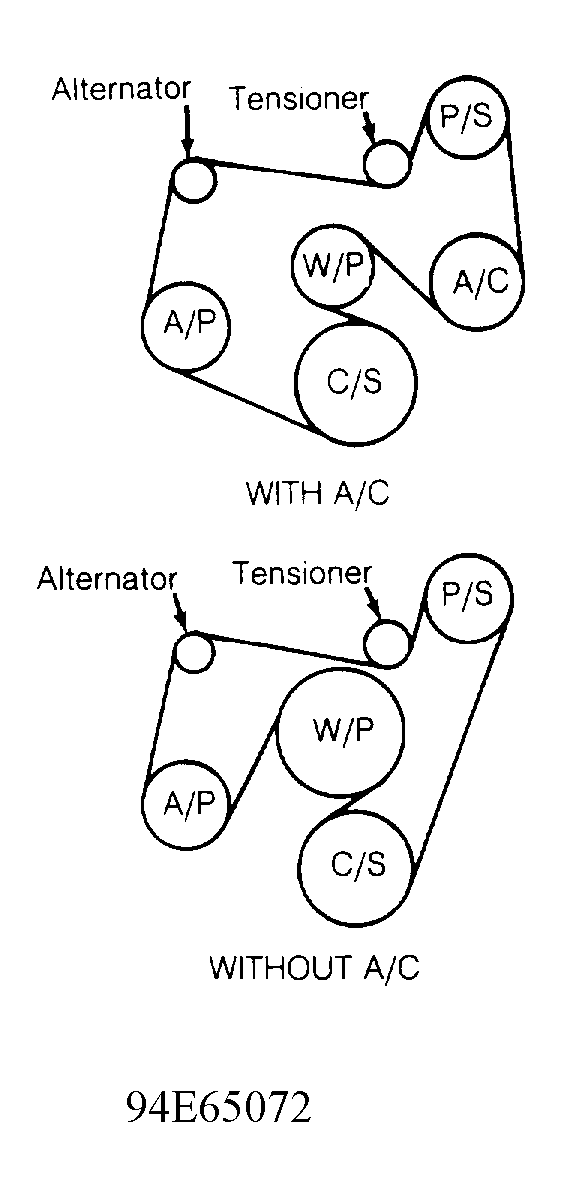

Fig 1: Checking Belt Routing & Tension (Ranger & Explorer)
G94E65072Courtesy of FORD MOTOR CO.
