Power Circuits

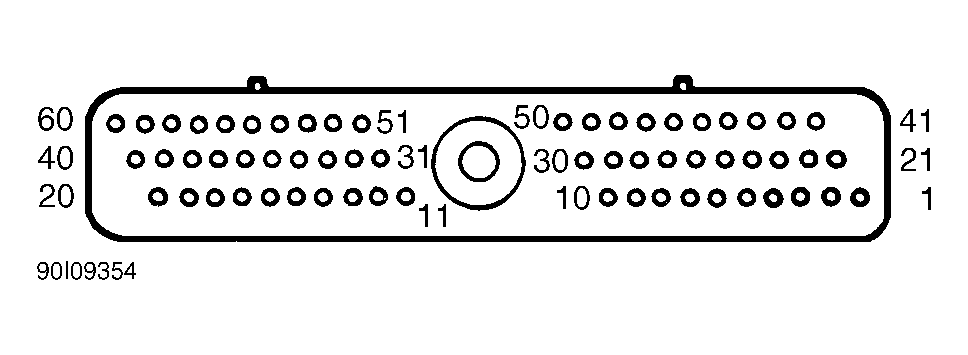

Using a voltmeter, check for battery voltage between PCM terminal No. 1 (KAPWR) and ground. Check for battery voltage at terminals No. 37 and 57 (VPWR). If battery voltage is not present, power is not being supplied from EEC power relay. See CIRCUIT TEST B in TESTS W/CODES - EEC-IV article in the ENGINE PERFORMANCE section.
PCM LOCATION
| Application | Location |
|---|---|
| Explorer | Behind Right Kick Panel |
