Circuit & Terminal Identification
NOTE:
To identify main power window switch circuits, refer to the MAIN POWER WINDOW SWITCH CIRCUITS

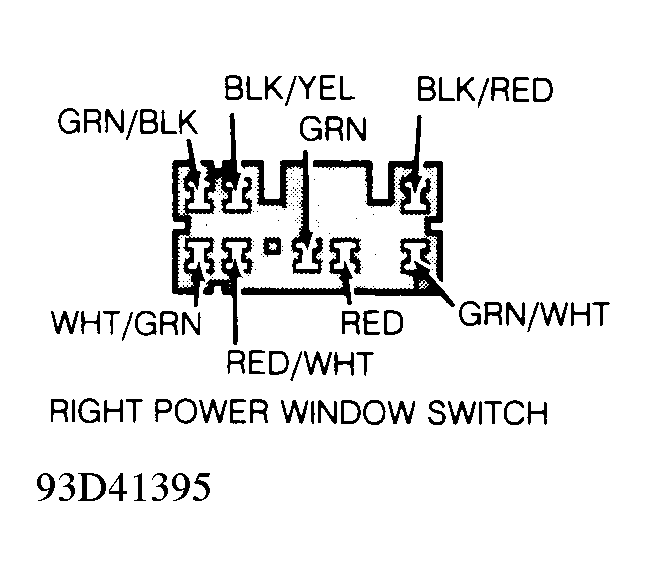

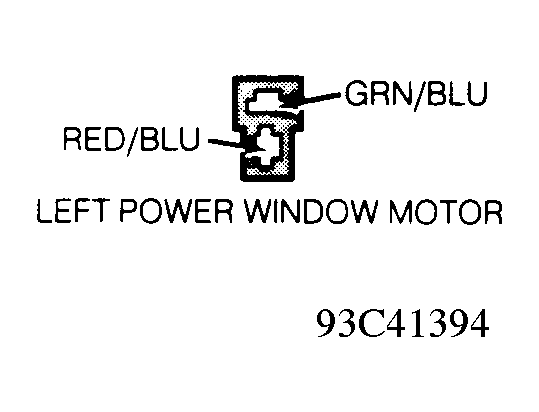

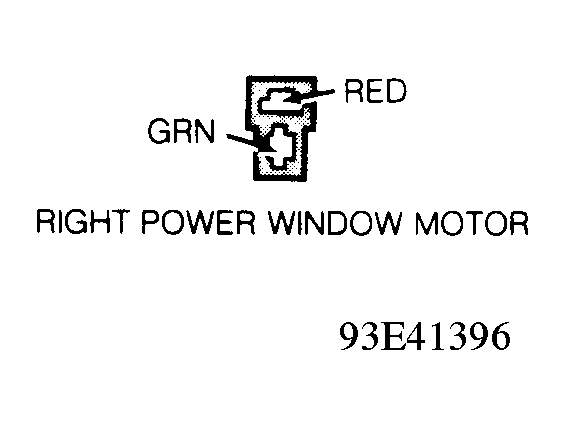

table. To identify power window switch terminals, see Fig 1
-6.

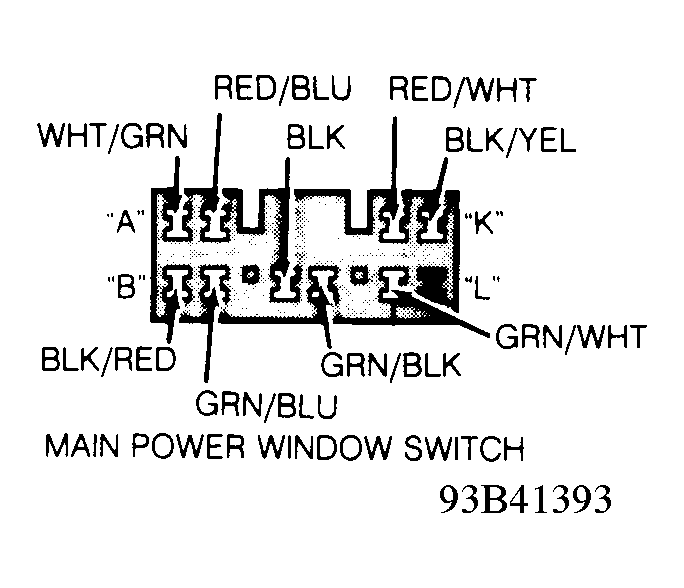

MAIN POWER WINDOW SWITCH CIRCUITS
| Pin | Circuit | Function |
|---|---|---|
| A | WHT/GRN | Door Lock Switch Power |
| B | BLK/RED | Main Switch Power |
| C | RED/BLU | Left Window Feed/Return |
| D | GRN/BLU | Left Window Feed/Return |
| F | BLK | Ground |
| H | GRN/BLK | Door Lock Switch Output |
| I | RED/WHT | Right Window Feed/Return |
| J | GRN/WHT | Right Window Feed/Return |
| K | BLK/YEL | Power Supply |
| L | Not Used | Not Used |
