Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

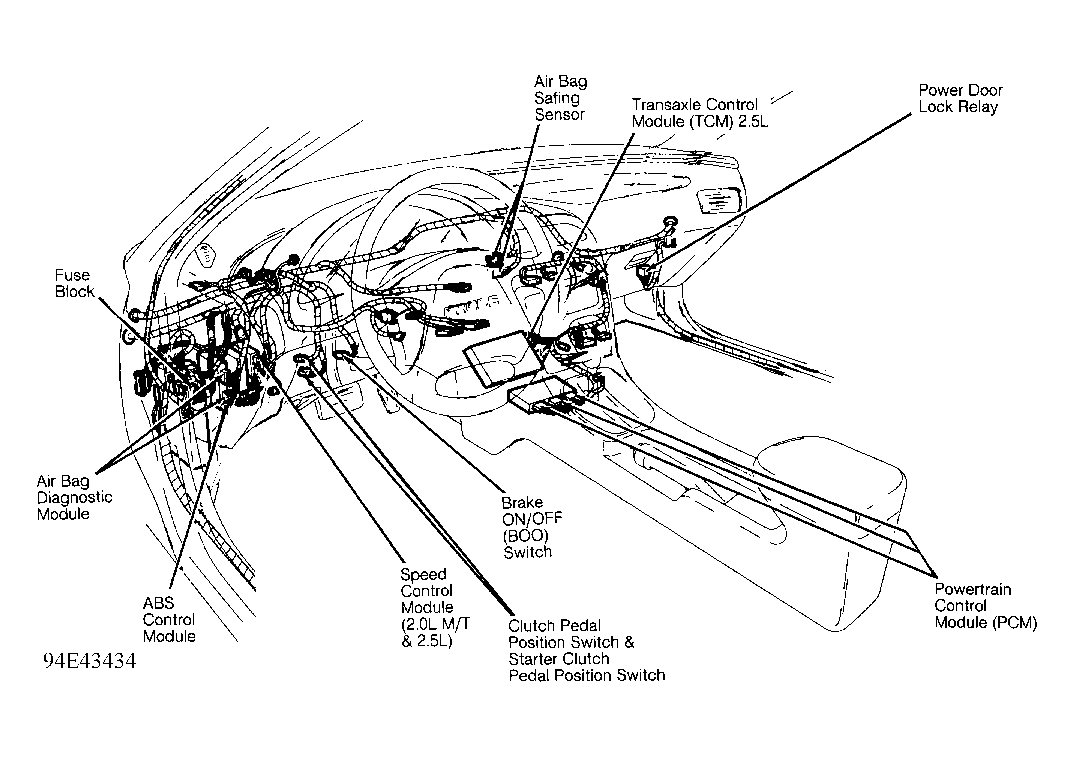

| ABS Control Module | Behind left side of dash, to left of steering column. See Figure . | |
| Air Bag Diagnostic Module | Behind left side of dash, to right of fuse block. See Figure . | |

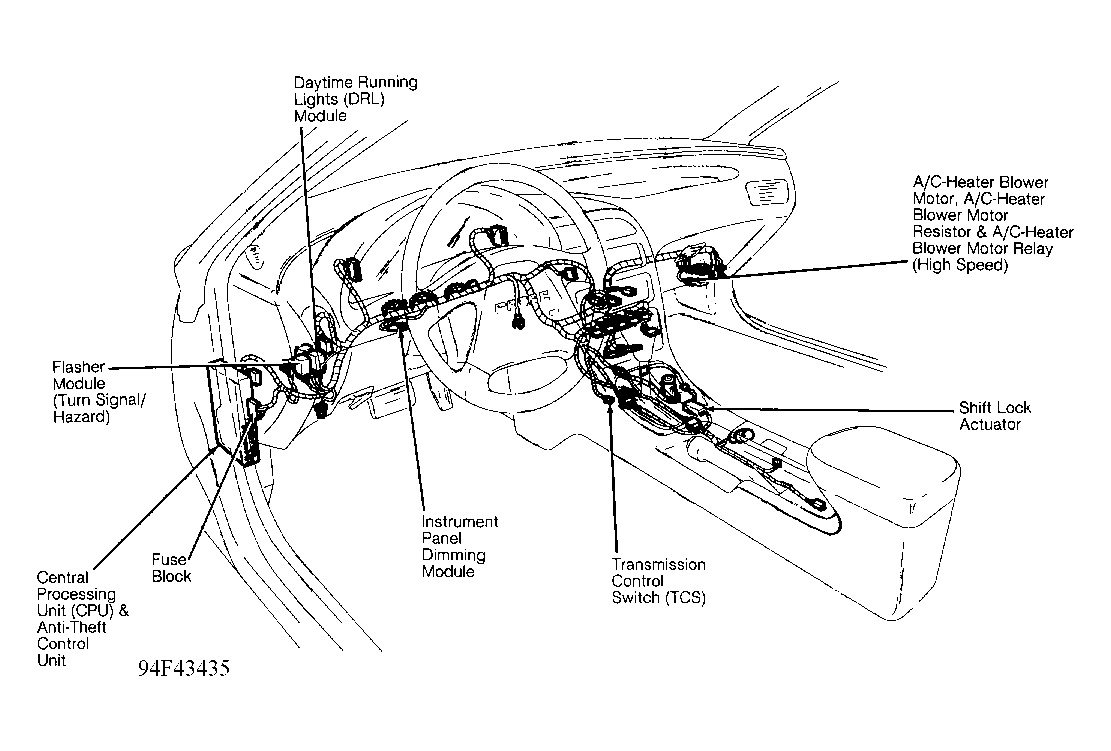

| Anti-Theft Control Unit | Behind left side of dash, on CPU. See Figure . | |
| Central Processing Unit (CPU) | Behind left side of dash, on rear of fuse block. See Figure . | |
| Daytime Running Lights (DRL) Module | Behind left side of dash, to left of steering column. See Figure . | |
| Flasher Module (Turn Signal/Hazard) | Behind left side of dash, to left of steering column. See Figure . | |
| Ignition Control Module (2.0L) | ||

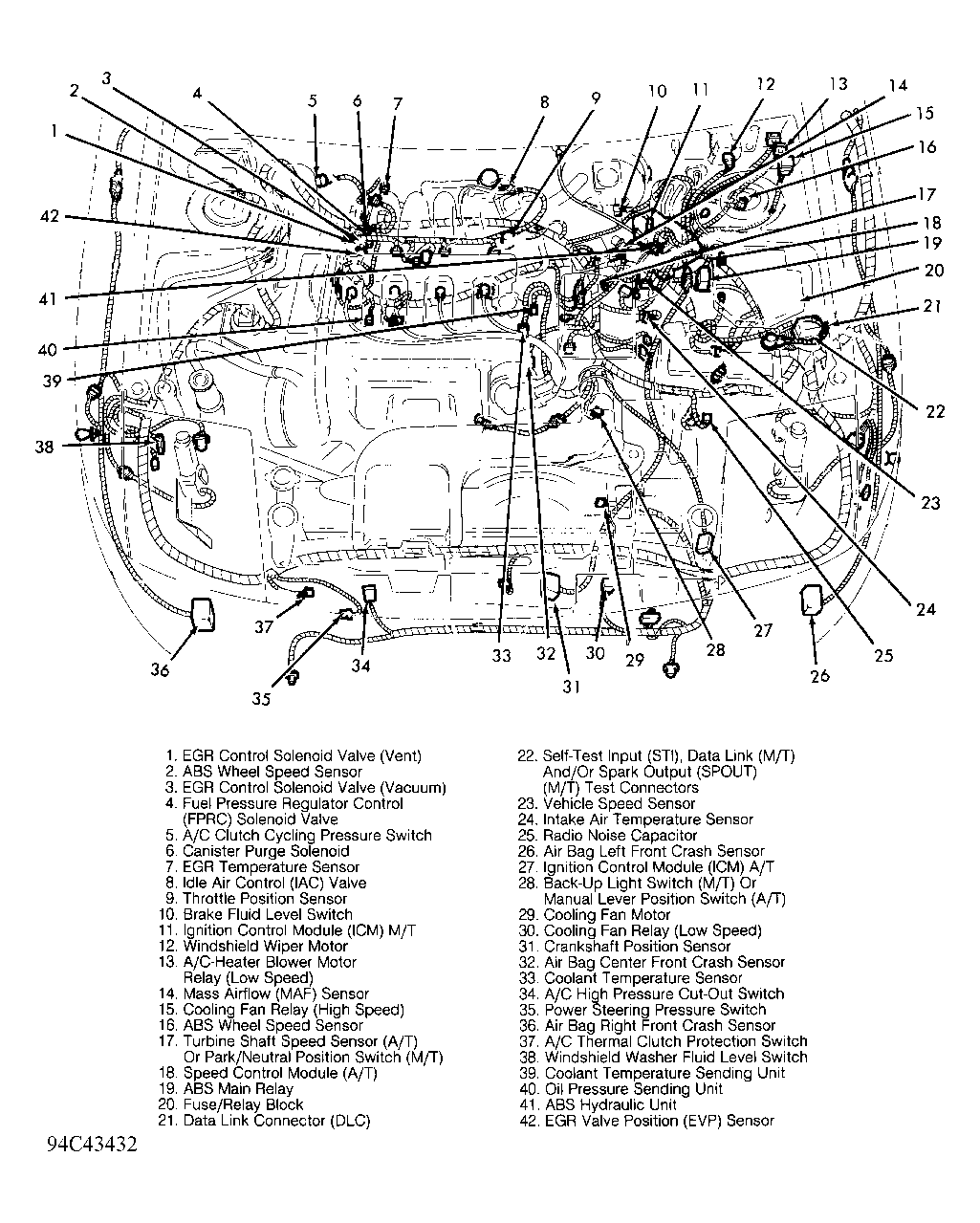

| A/T | In left front of engine bay near radiator, on frame rail. See Figure . | |
| M/T | In left rear of engine bay, on side of strut tower. See Figure . | |
| Instrument Panel Dimming Module | Behind left side of dash, to left of steering column. See Figure . | |
| Powertrain Control Module (PCM) | Behind center of dash, forward of center console, near floor. See Figure . | |

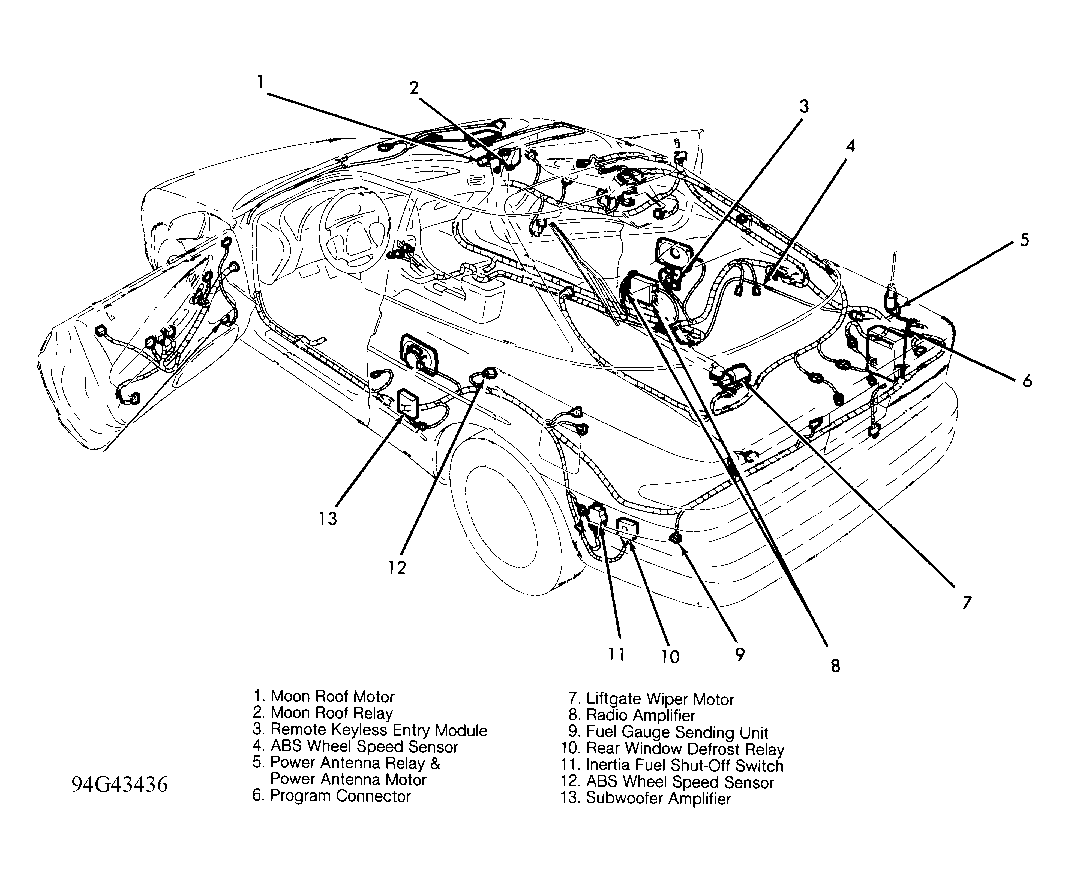

| Remote Keyless Entry Module | On right rear quarter panel, behind trim panel. See Figure . | |
| Speed Control Module | ||
| 2.0L A/T | In left rear of engine bay, near strut tower. See Figure . | |
| 2.0L M/T & 2.5L | Behind left side of dash, left of steering column. See Figure . | |
| Transaxle Control Module (TCM) 2.5L | Behind center of dash, forward of PCM. See Figure . | |
