Solenoid Test

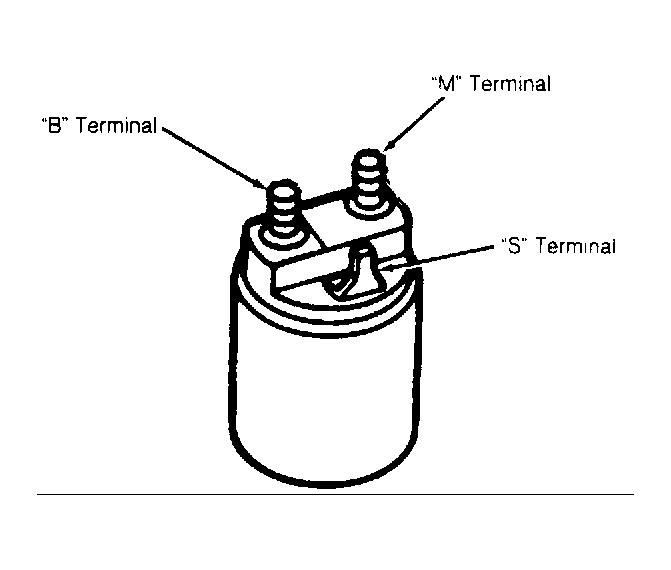

Check for continuity between terminals "S" and "M". See Fig 1 . If there is no continuity, replace solenoid. Connect one ohmmeter probe to solenoid body and other probe to terminal "S". Replace solenoid if there is no continuity. Connect ohmmeter probes between terminals "M" and "B". Replace solenoid if continuity is indicated.
