Fuel Pump Circuit

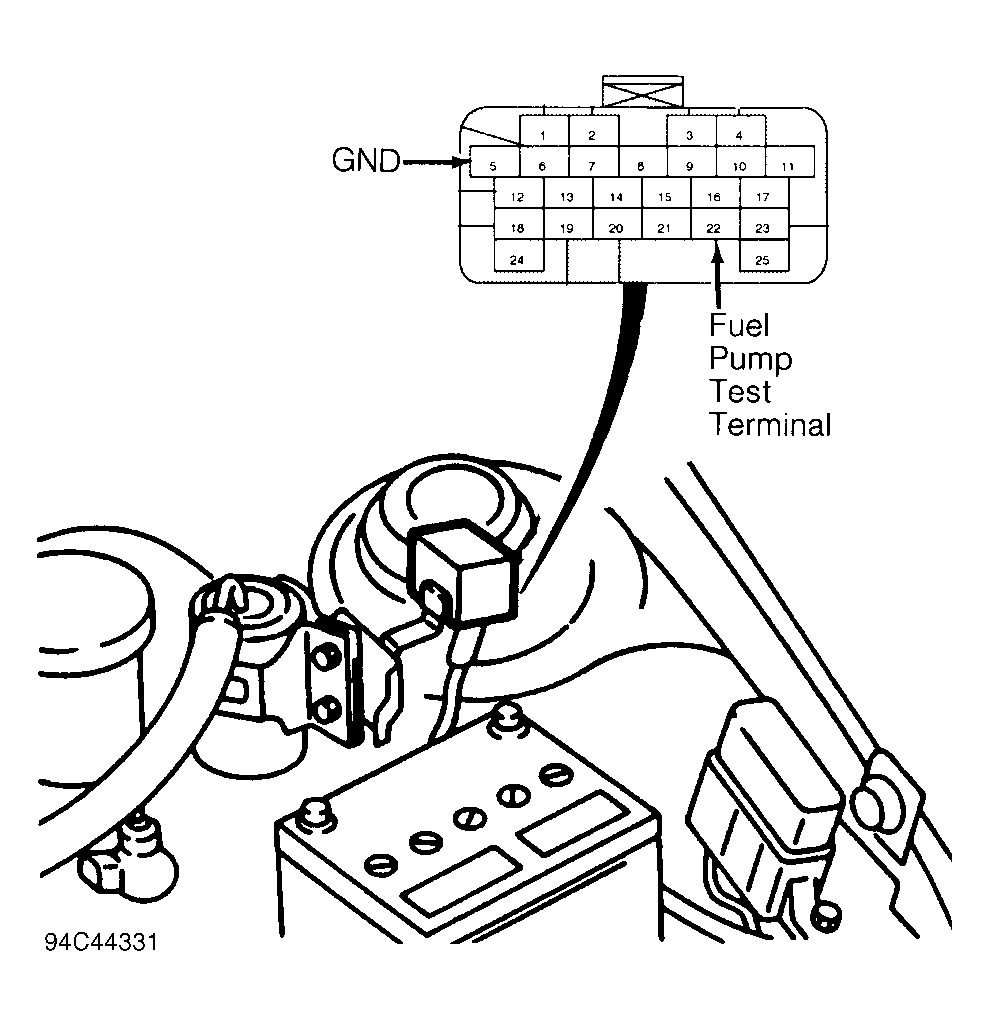

  1. Turn ignition on. Connect jumper wire between fuel pump test connector terminal and ground. Test connector is terminal No. 22 of Data Link Connector, located behind battery, at left shock tower. See Figure . Turn ignition on to activate fuel pump.
  2. Listen for fuel pump sound. If there is no sound, inspect main fuse, inertia switch (located at left rear of passenger compartment), fuel pump relay, fuel pump, and all electrical connections.
