Ignition Coil Resistance

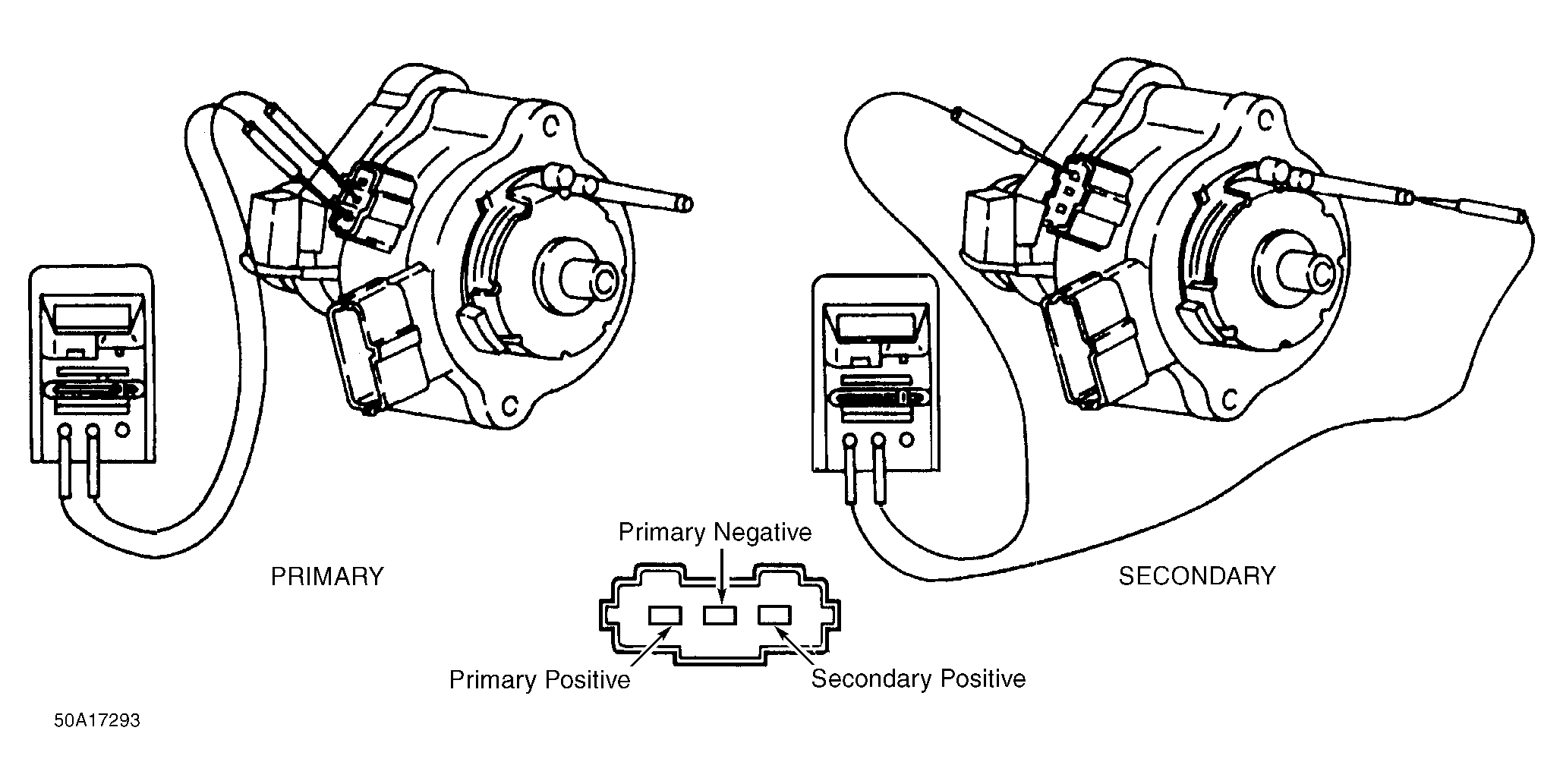

Measure resistance between primary terminals of coil. Measure resistance between positive primary terminal and high voltage terminal. See Fig 1 . See IGNITION COIL RESISTANCE table. Insulation resistance between coil case and primary positive terminal should be infinite. Replace coil if resistance measurements are not within specification.
IGNITION COIL RESISTANCE
| Application | Primary (Ohms) | Secondary (Ohms) |
|---|---|---|
| Aspire | 0.5-0.7 | 20,000-31,000 |
