Pinpoint Test E - Memory Function Does Not Operate From Remote Transmitter

1. Turn ignition on. Program transmitter. See REMOTE TRANSMITTER  under PROGRAMMING. If system now responds normally, transmitter is okay. Refer to TROUBLE SHOOTING chart if necessary. If system does not respond normally, go to next step.
2. Replace transmitter batteries. Turn ignition on. Program transmitter. See REMOTE TRANSMITTER  under PROGRAMMING. If system operates normally, refer to TROUBLE SHOOTING chart if necessary. If system does not operate normally, go to next step.
3. Turn ignition on. Program transmitter. See REMOTE TRANSMITTER  under PROGRAMMING. If system responds normally, replace original transmitter. If system does not respond normally, go to next step.
4. Turn ignition off. Unplug Black and Gray REM. Measure resistance between points listed below.
   • Blue/Green wire between Gray REM connector and program connector.

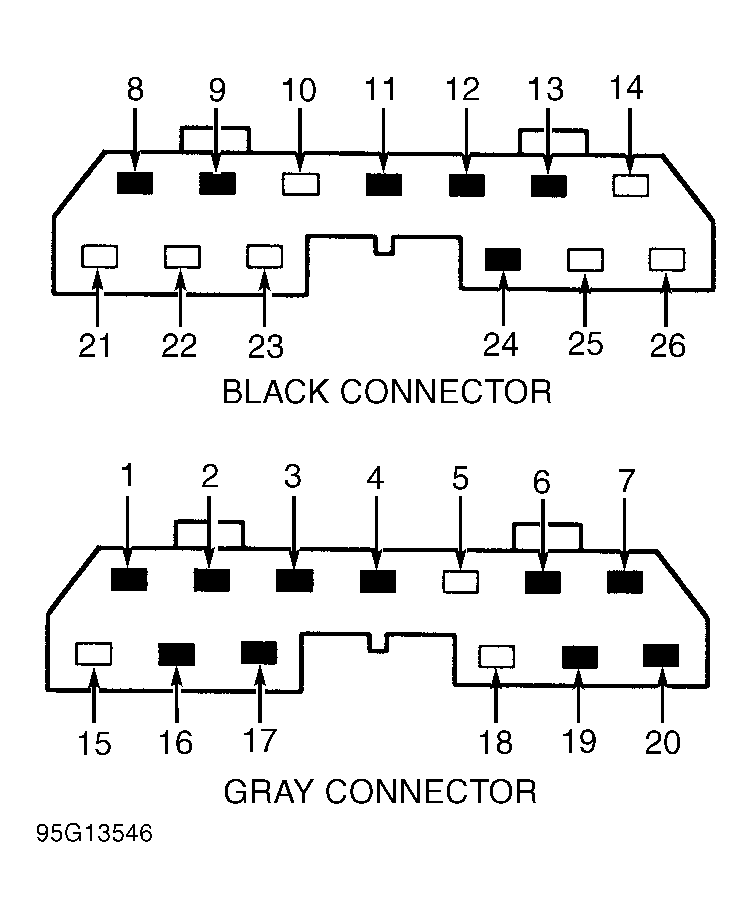

See Figure and Figure.

• Blue/White wire between Black REM connector and program connector.

See Figure and Figure.

• Blue/Green wire between Gray REM connector and ground.
• Blue/White wire between Black REM connector and ground.
• Blue/Green and Blue/White wire terminals of program connector.

Resistance should be less than 5 ohms for wires between REM and program connector. Resistance should be more than 10,000 ohms between REM and ground, and between program connector terminals. If all resistances are as specified, temporarily substitute known good REM, then retest system. If any resistance is not as specified, repair wire(s) in question.
