Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | ||||
|---|---|---|---|---|---|
| Clutch Master Cylinder Mounting Bolts | 14-18 (19-24) | ||||
| Clutch Slave Cylinder Mounting Bolts | 12-16 (16-22) | ||||
| Flywheel Bolts | |||||
| 2.0L Engine | 71-75 (96-102) | ||||
| 2.5L Engine | 45-49 (61-66) | ||||
| Pressure Plate Bolts | 13-18 (18-24) | ||||
| Transaxle-to-Engine | |||||
| 2.0L Engine - Lower | 28-38 (38-51) | ||||
| 2.0L Engine - Bottom | 14-18 (19-25) | ||||
| 2.0L Engine - Left | 38-51 (28-38) | ||||

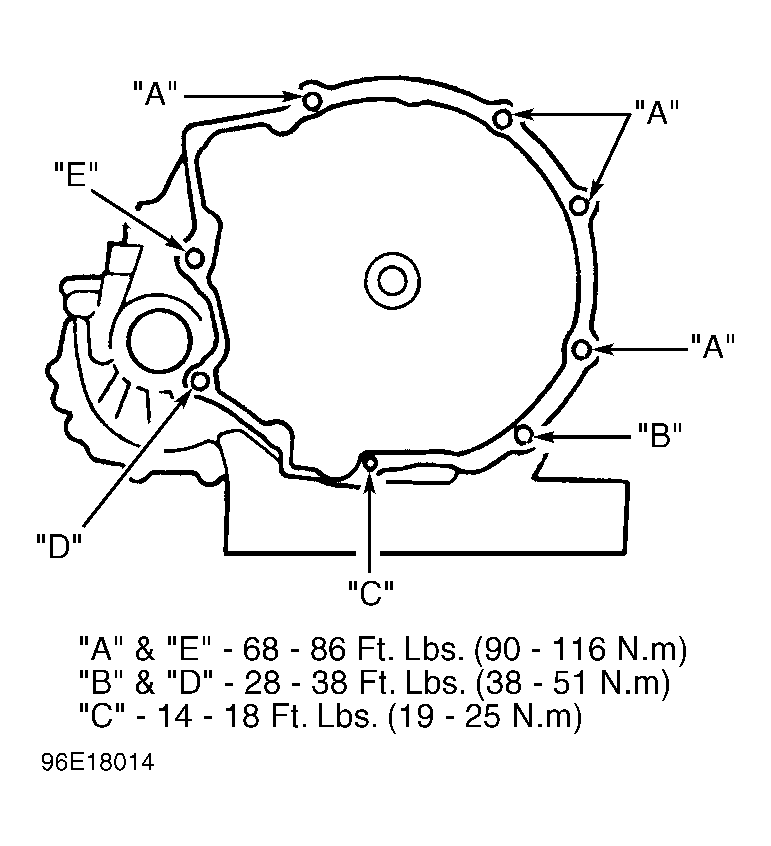

| 2.5L Engine | (1) | ||||
|
|||||
