Engine Controls

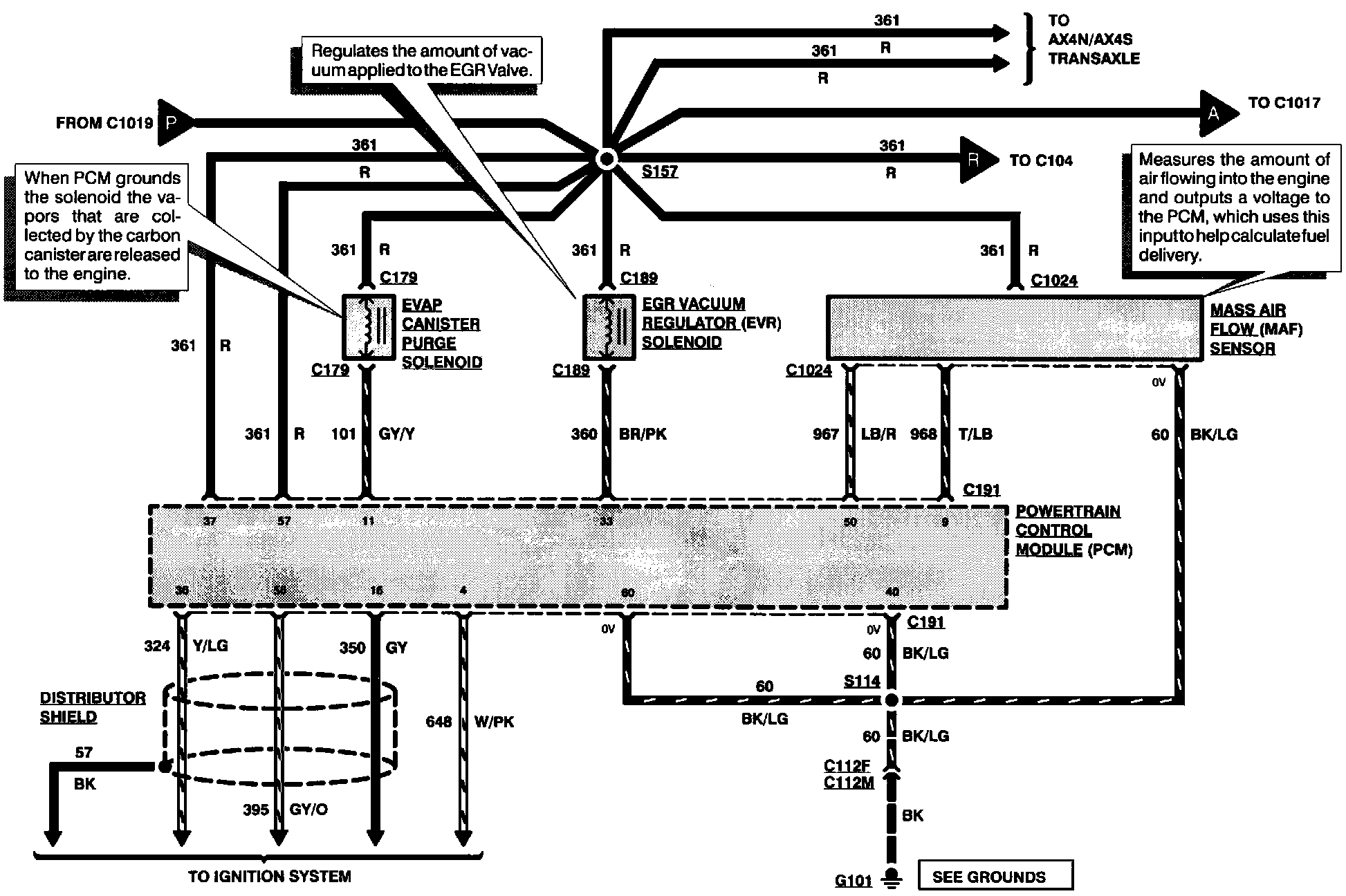

Engine Controls (Part 1 Of 7):

EGR VACUUM REGULATOR SOLENOID
EVAPORATIVE CANISTER PURGE SOLENOID
MASS AIR FLOW SENSOR

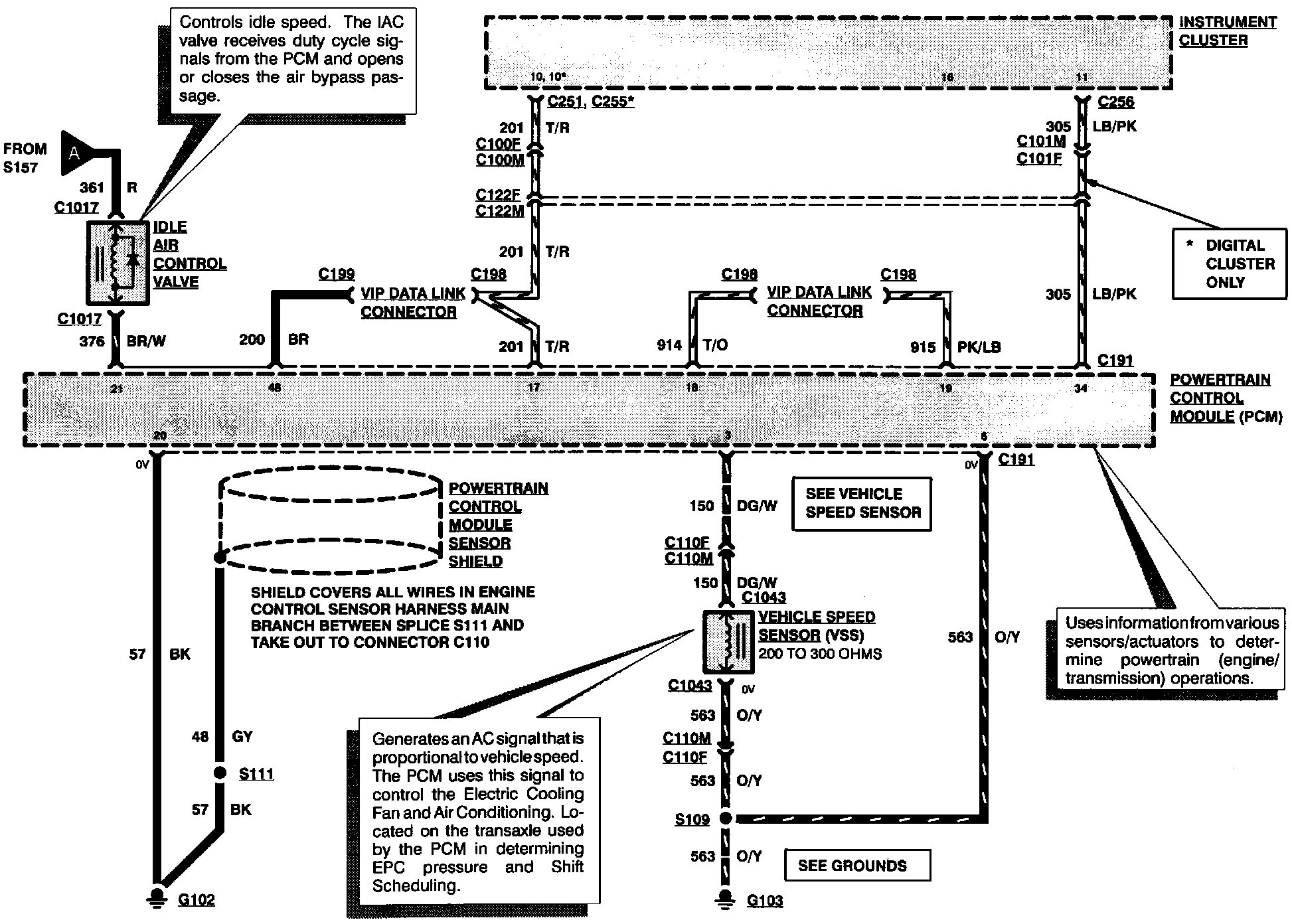

Engine Controls (Part 2 Of 7):

IDLE AIR CONTROL VALVE
VEHICLE SPEED SENSOR

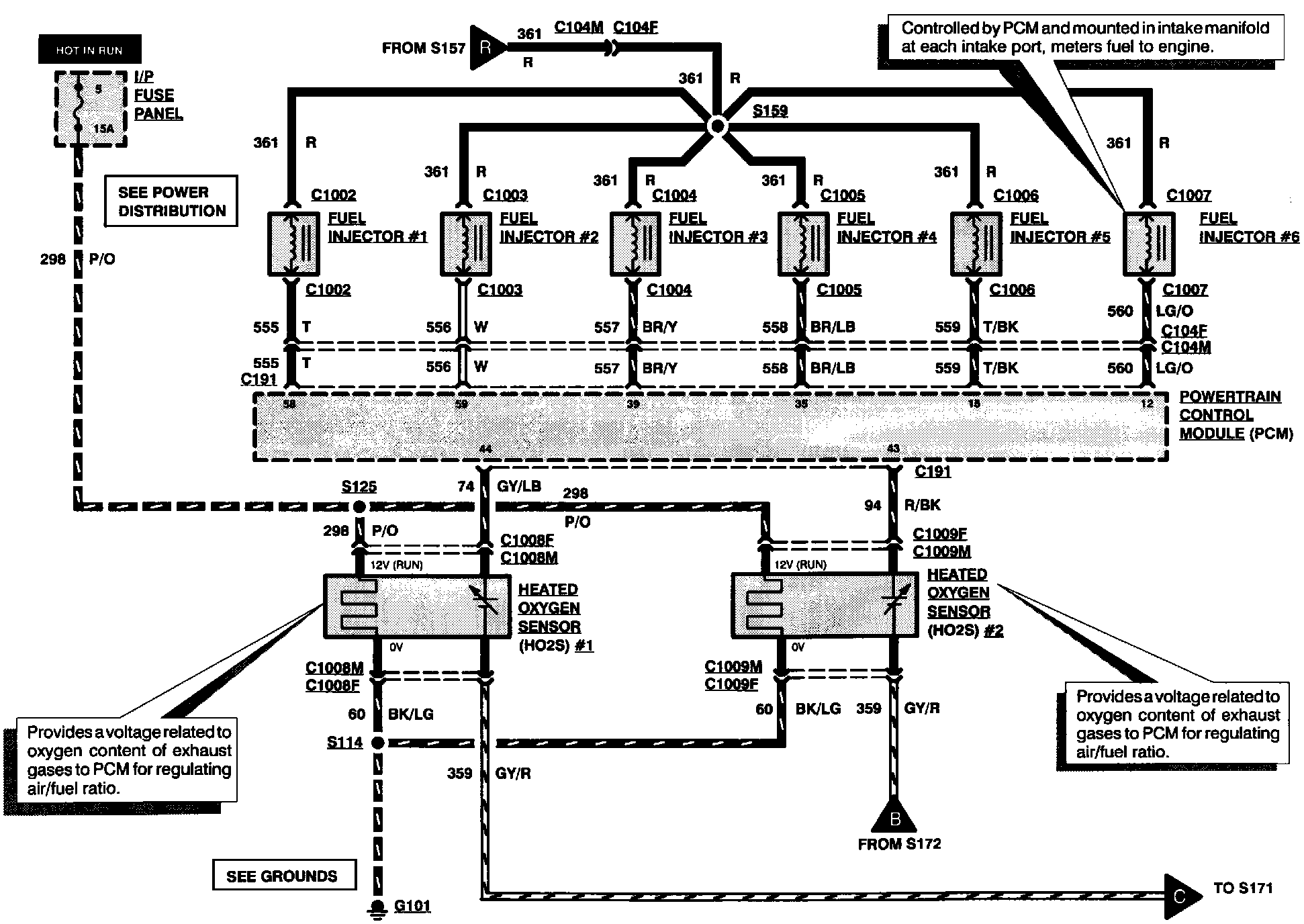

Engine Controls (Part 3 Of 7):

FUEL INJECTORS
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2

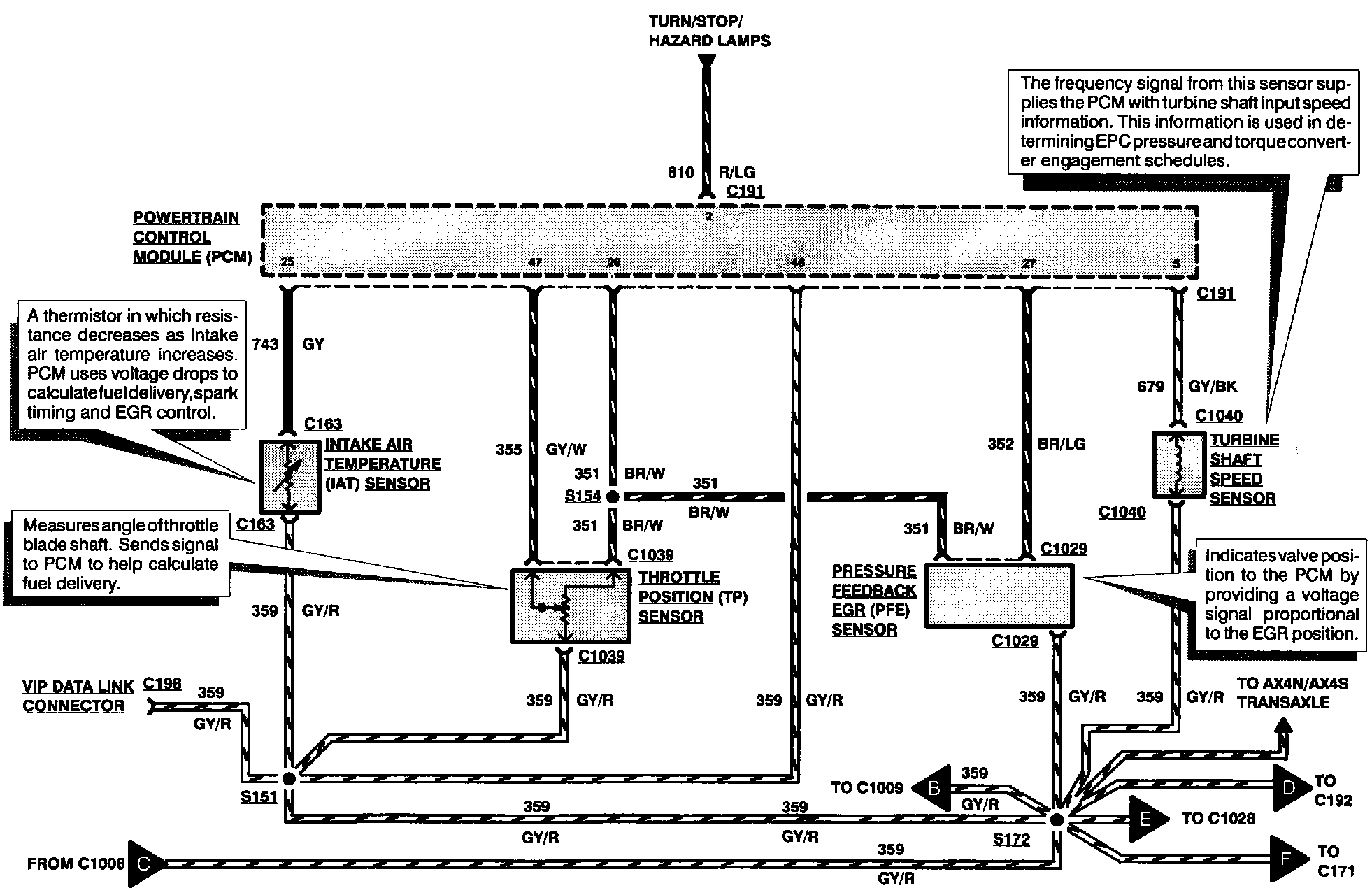

Engine Controls (Part 4 Of 7):

INTAKE AIR TEMPERATURE SENSOR
PRESSURE FEEDBACK EGR SENSOR
THROTTLE POSITION SENSOR
TURBINE SHAFT SPEED SENSOR

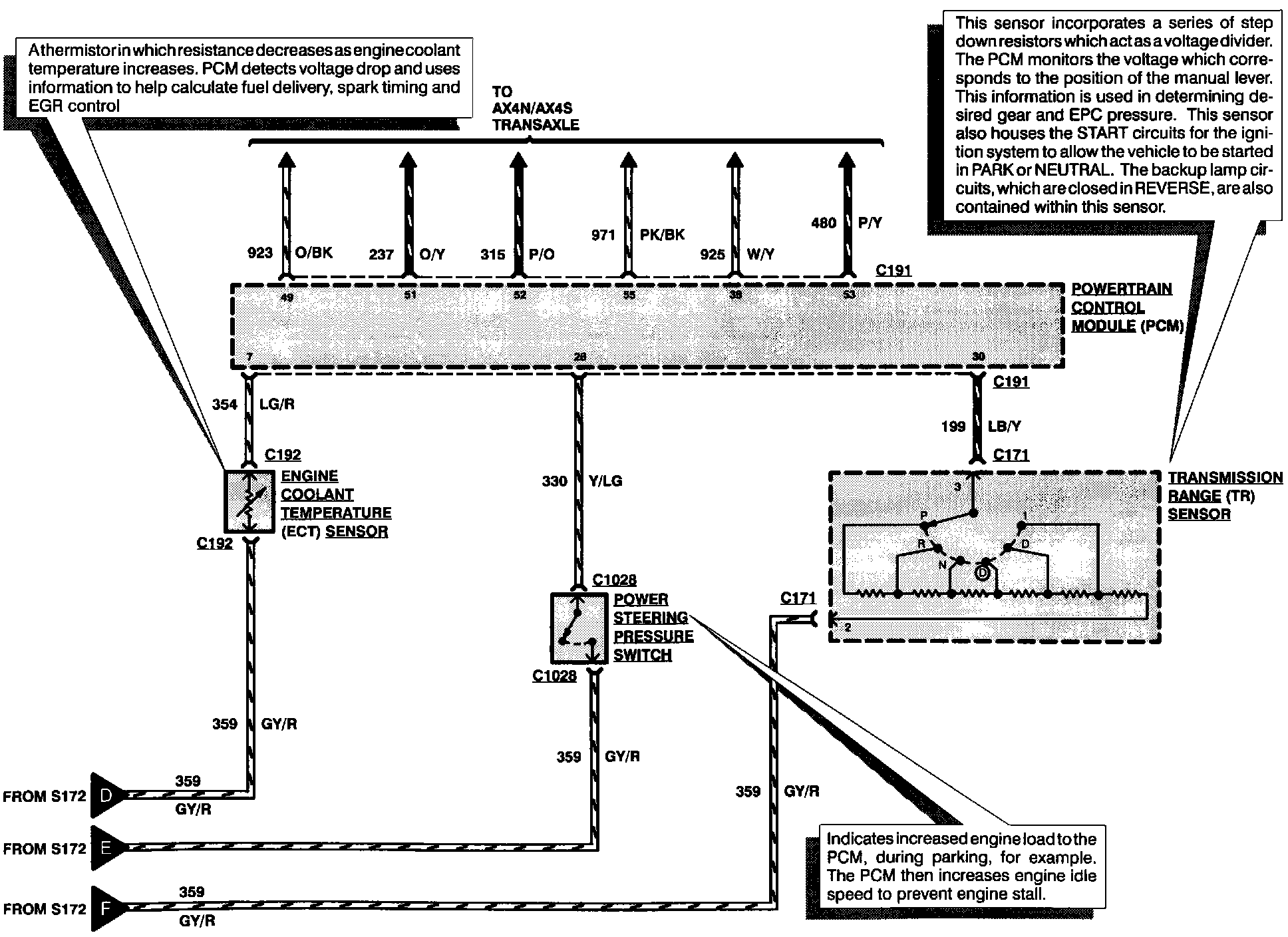

Engine Controls (Part 5 Of 7):

ENGINE COOLANT TEMPERATURE SENSOR
POWER STEERING PRESSURE SWITCH

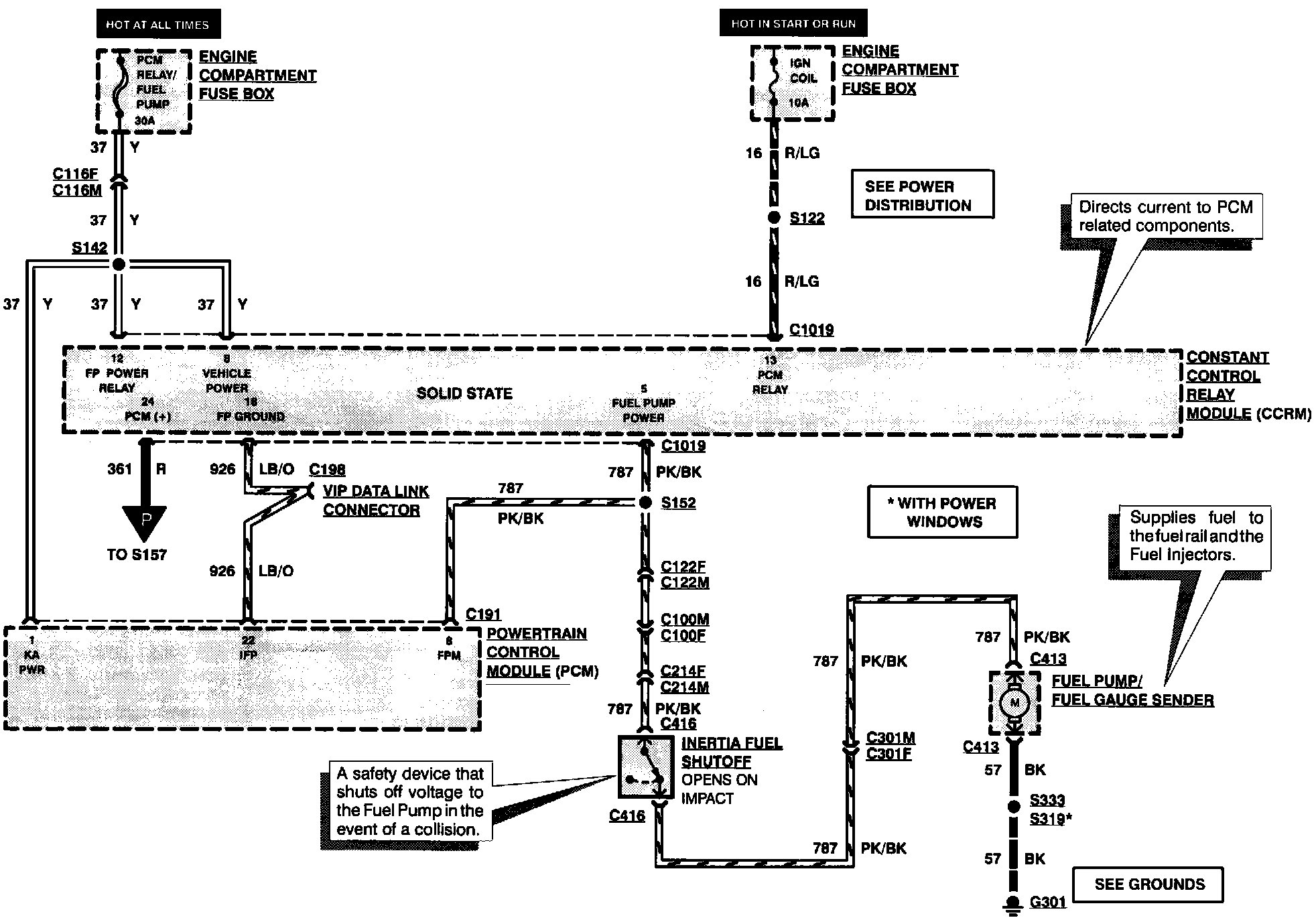

Engine Controls (Part 6 Of 7):

INERTIA FUEL SHUTOFF

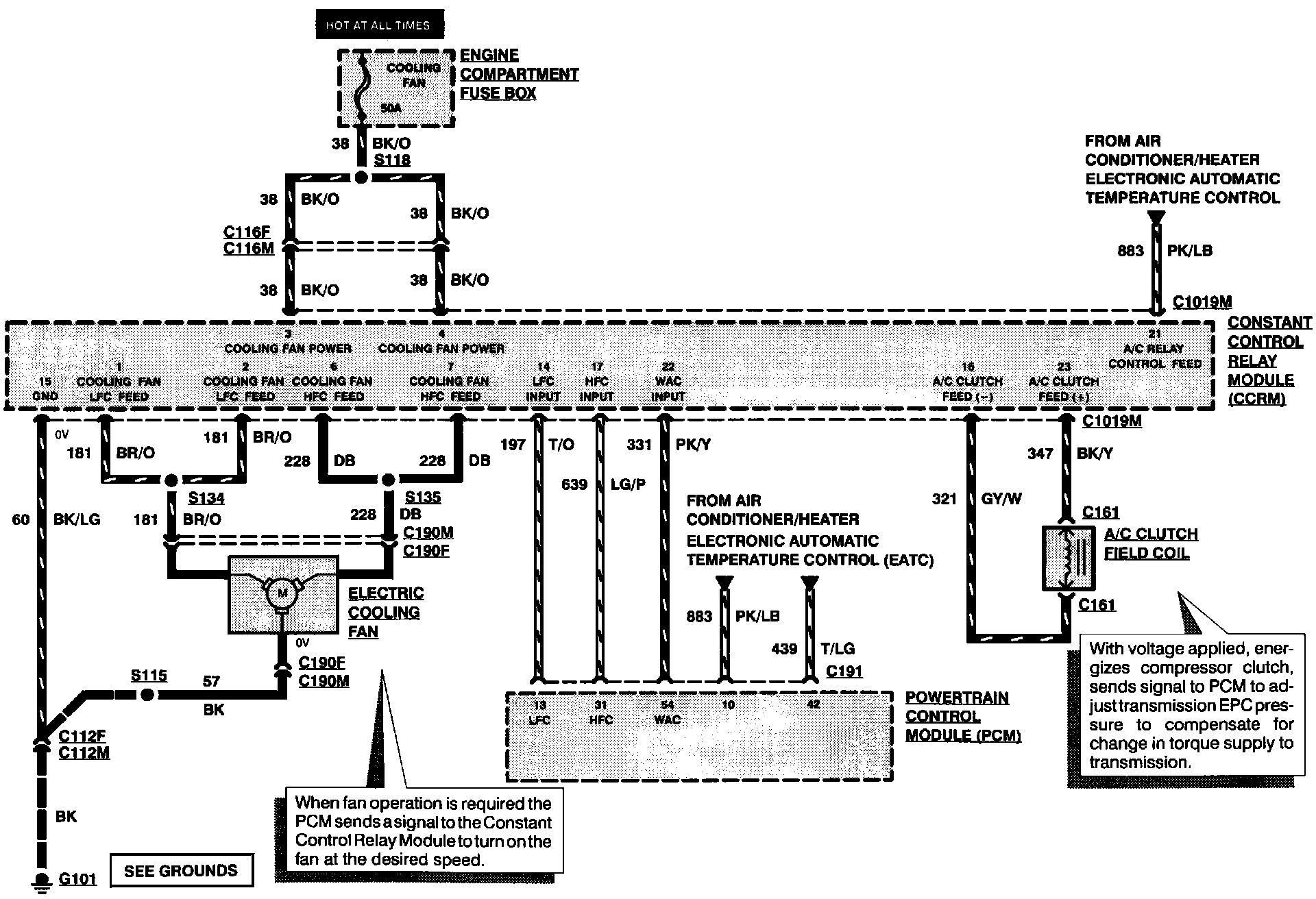

Engine Controls (Part 7 Of 7):

A/C CLUTCH FIELD COIL
ELECTRIC COOLING FAN
