Oscilloscope Patterns and Waveforms


Push Start ICM Waveforms:




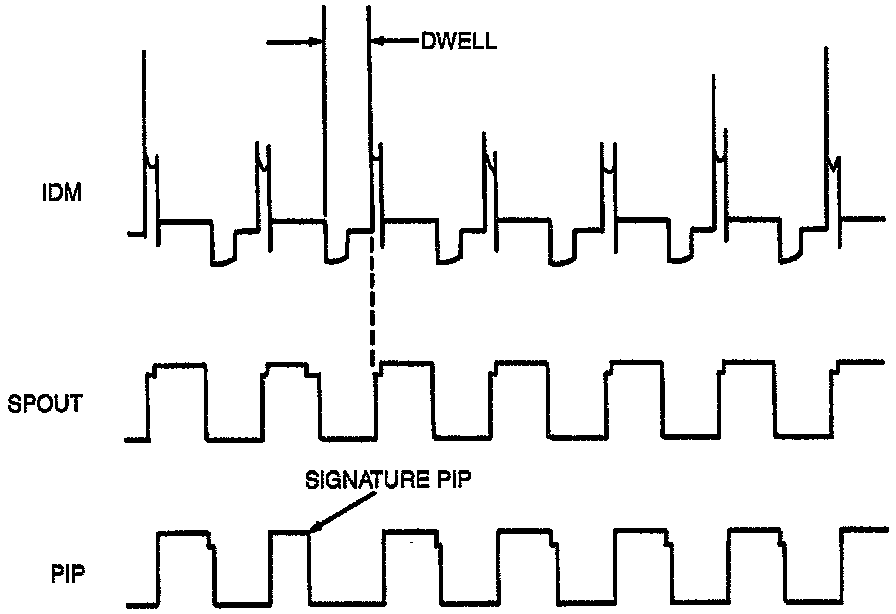

Push Start ICM Waveforms


Computer Controlled Dwell ICM Waveforms:

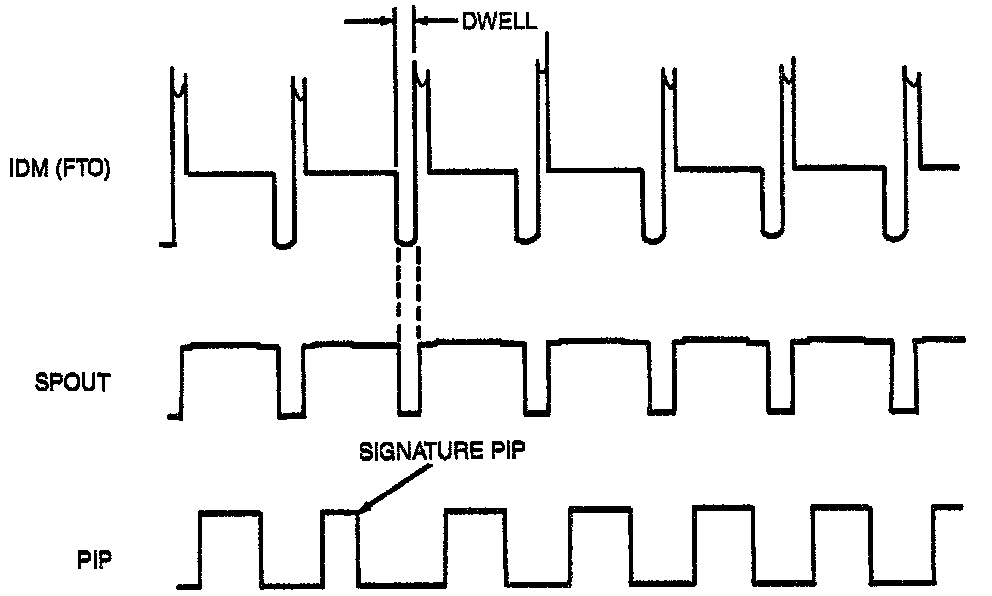

Computer Controlled Dwell (CCD) ICM Waveforms
