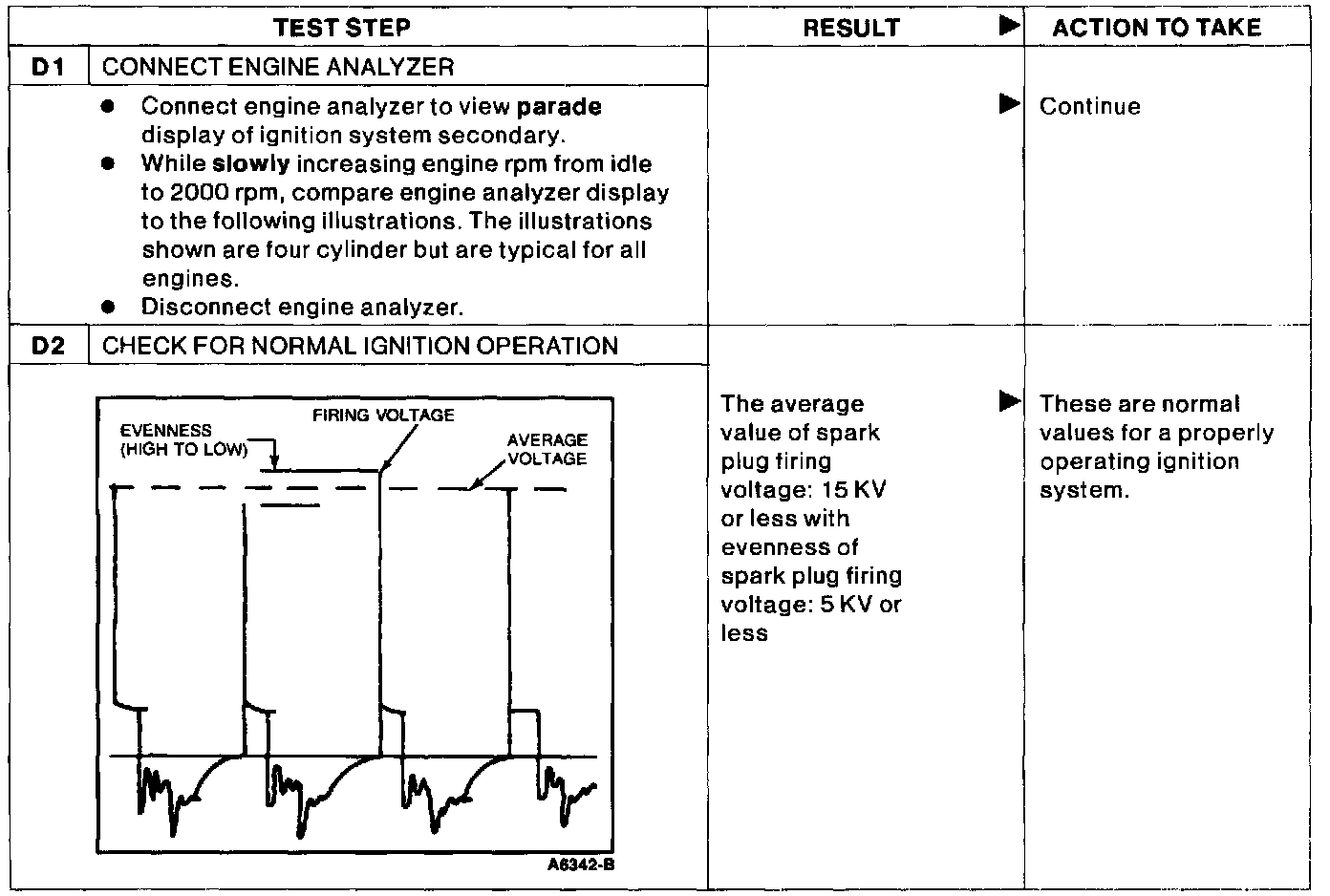

D1-D2

NOTE: To provide accurate results, it is essential that the calibration of your engine analyzer be maintained. Refer to your equipment manual. If this is not available, an estimate of the calibration can be made by connecting the spark tester (D81P-6666-A or equivalent) to a properly operating ignition system and measuring the firing voltage of the spark tester only. Do not include the firing voltage of the rotor-to-cap gap. The spark tester firing voltage should be approximately 28 Kv.
