Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

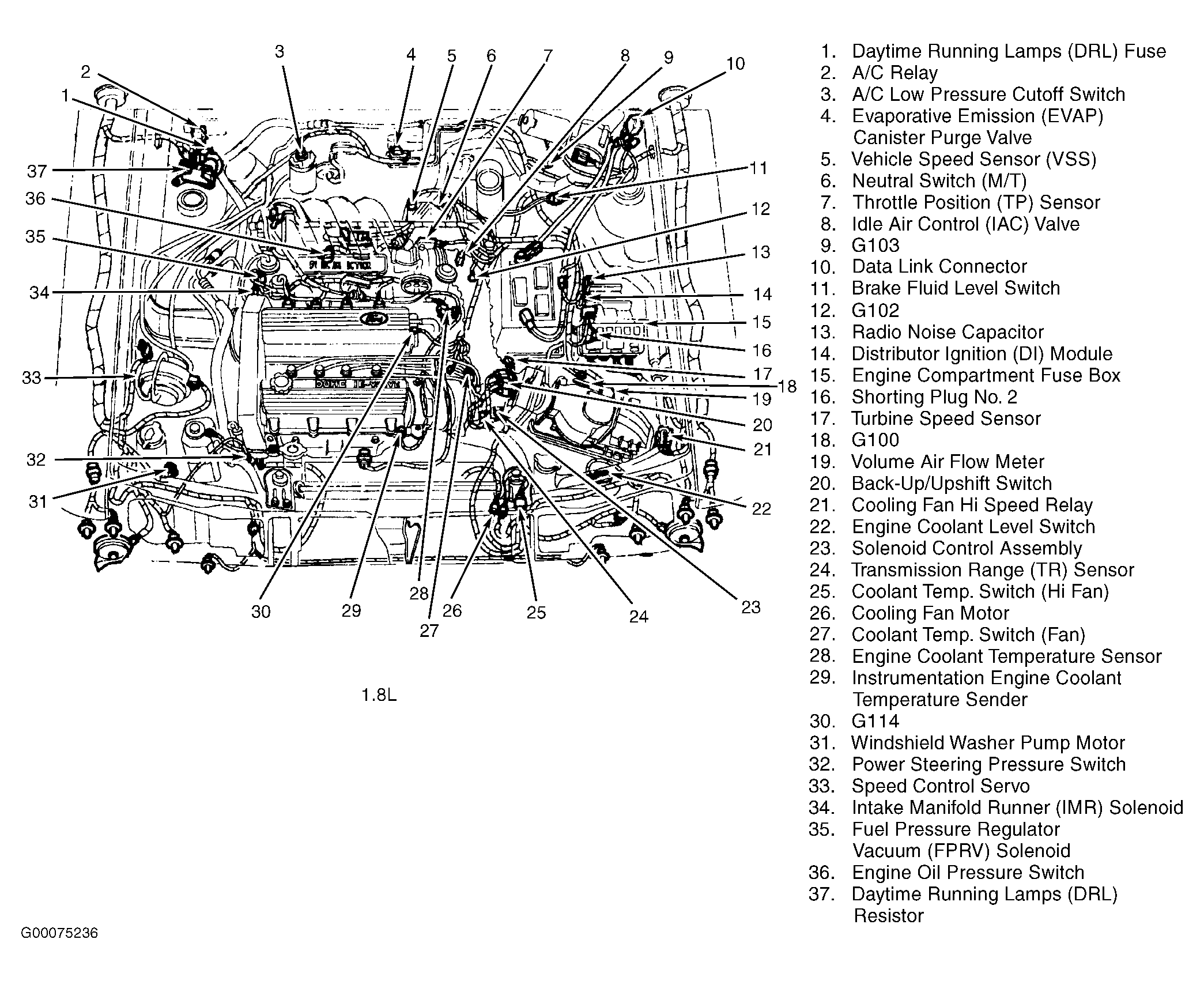

Fig 1: Engine Compartment (1.8L)
G00075236

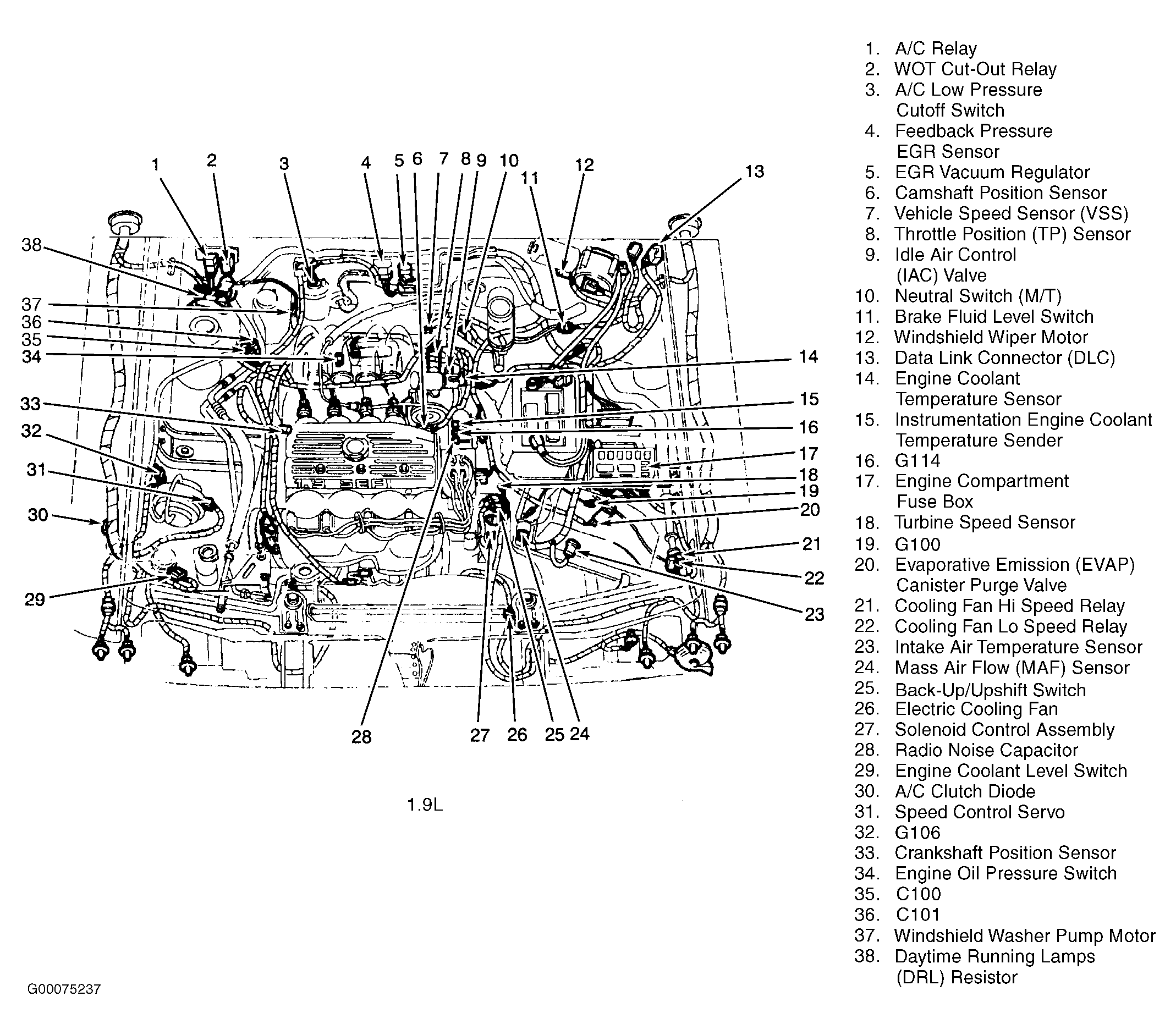

Fig 2: Engine Compartment (1.9L)
G00075237

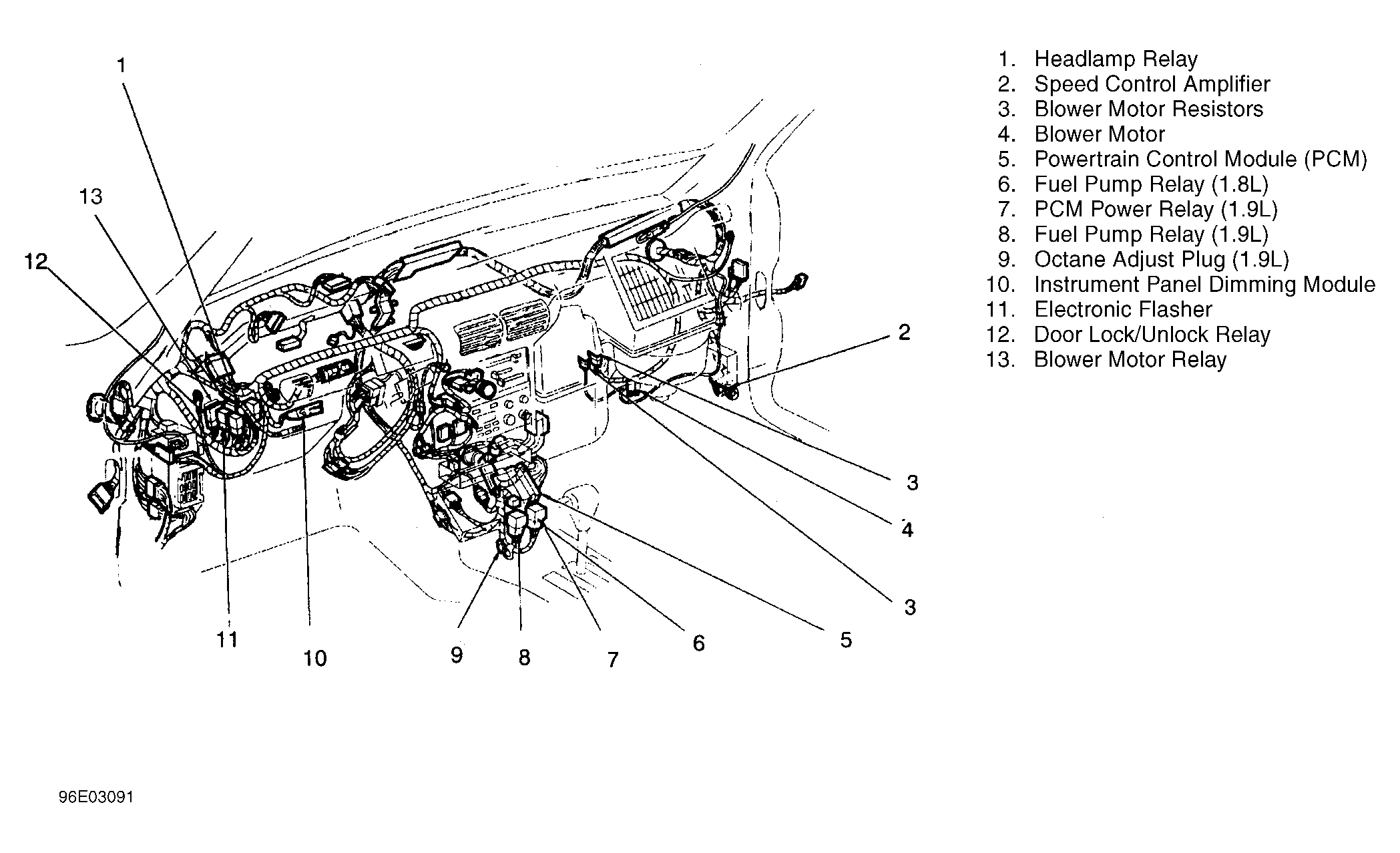

Fig 3: Dash
G96E03091

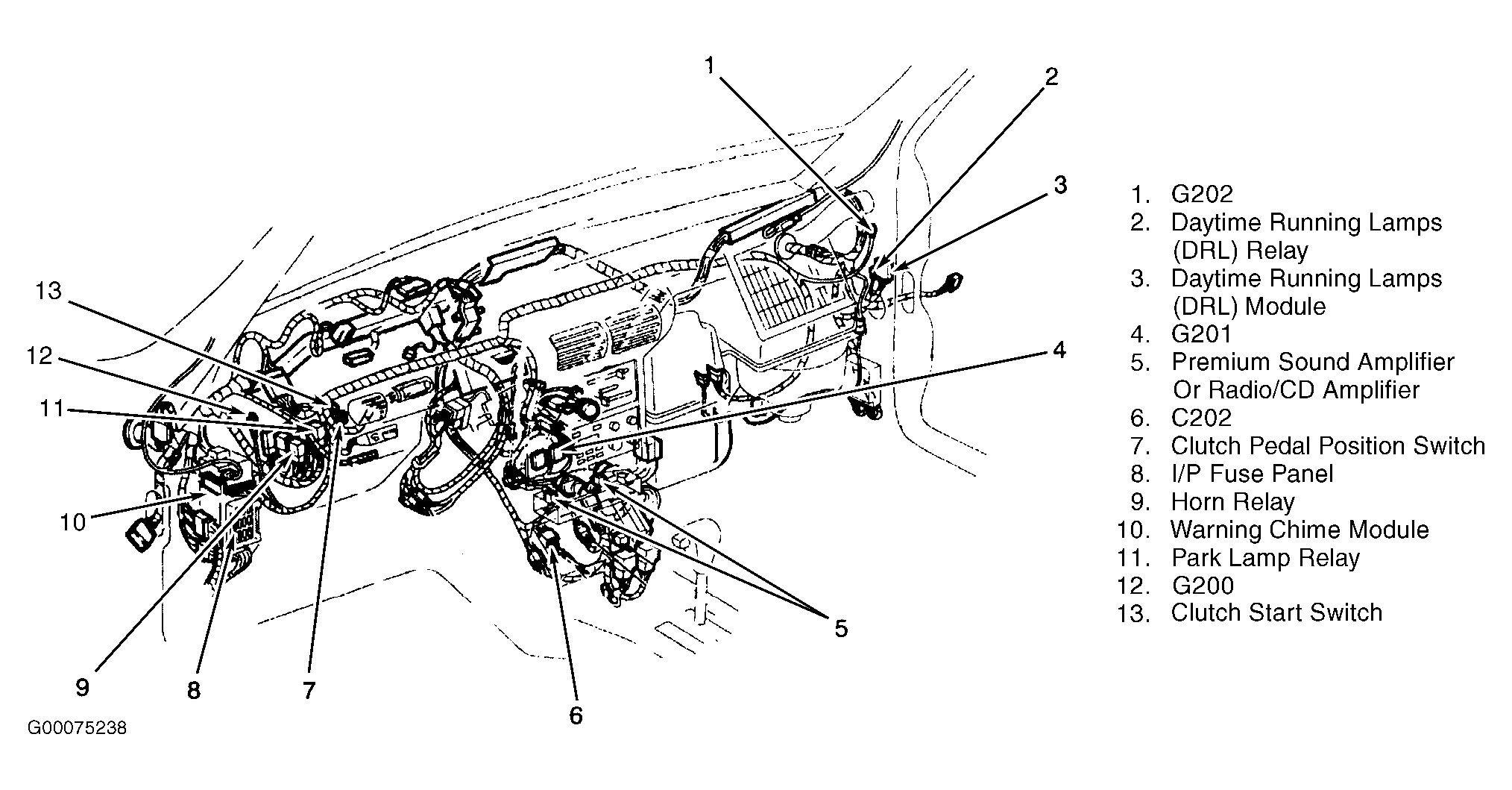

Fig 4: Dash
G00075238
