Service Point Locations: Notes

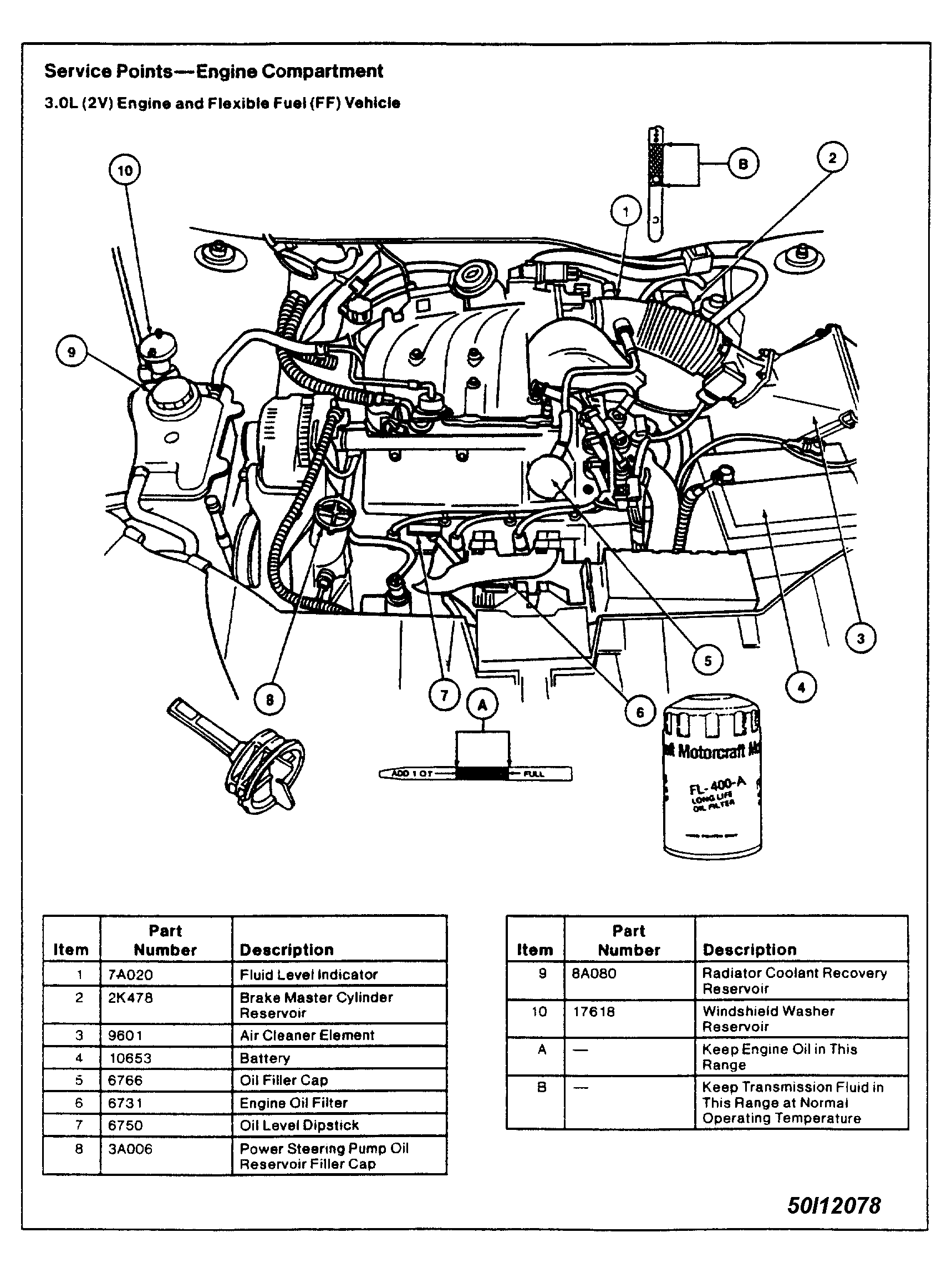

Fig 1: Service Point Locations (3.0L OHV V6)
G50I12078Courtesy of FORD MOTOR CO.

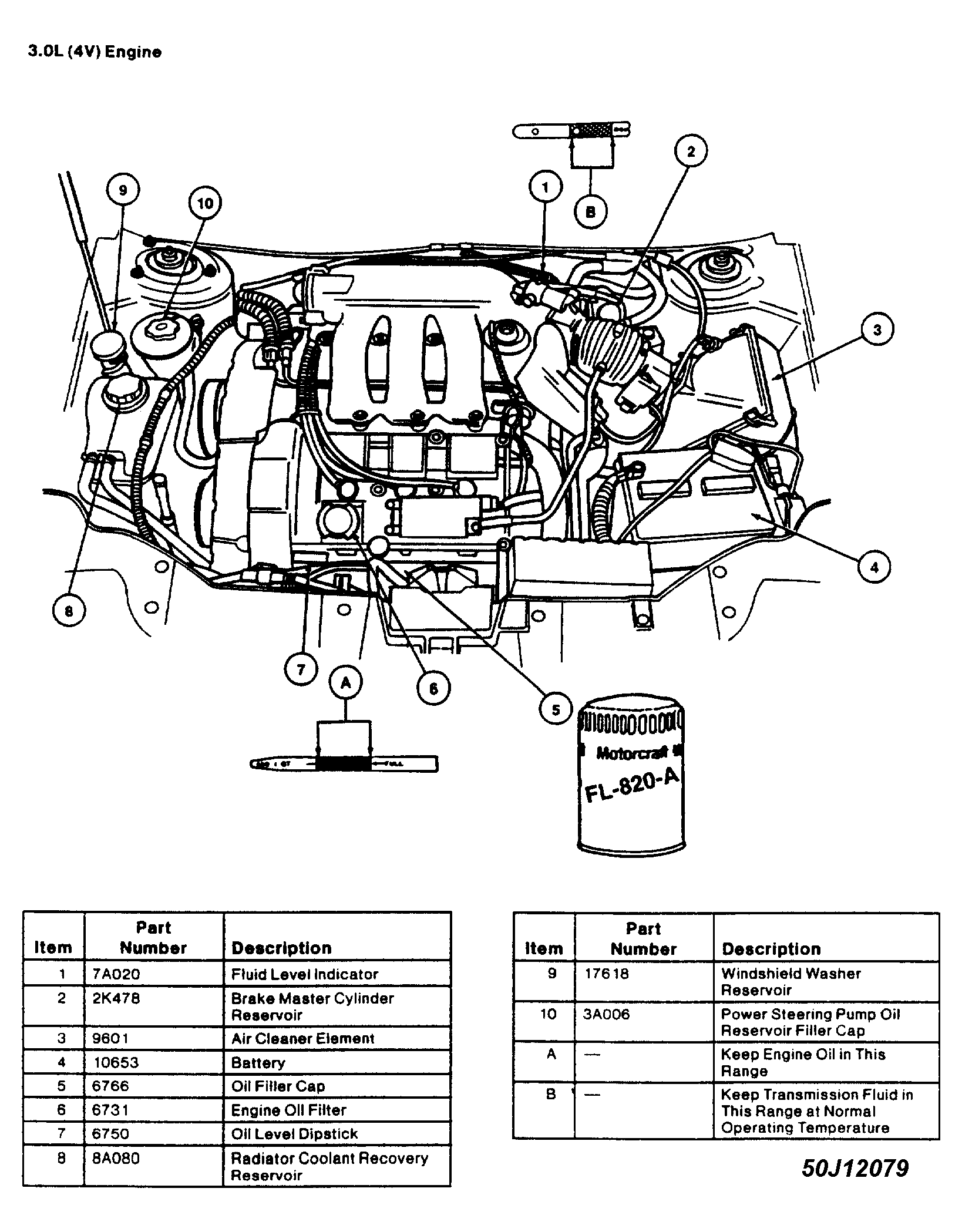

Fig 2: Service Point Locations (3.0L DOHC V6)
G50J12079Courtesy of FORD MOTOR CO.

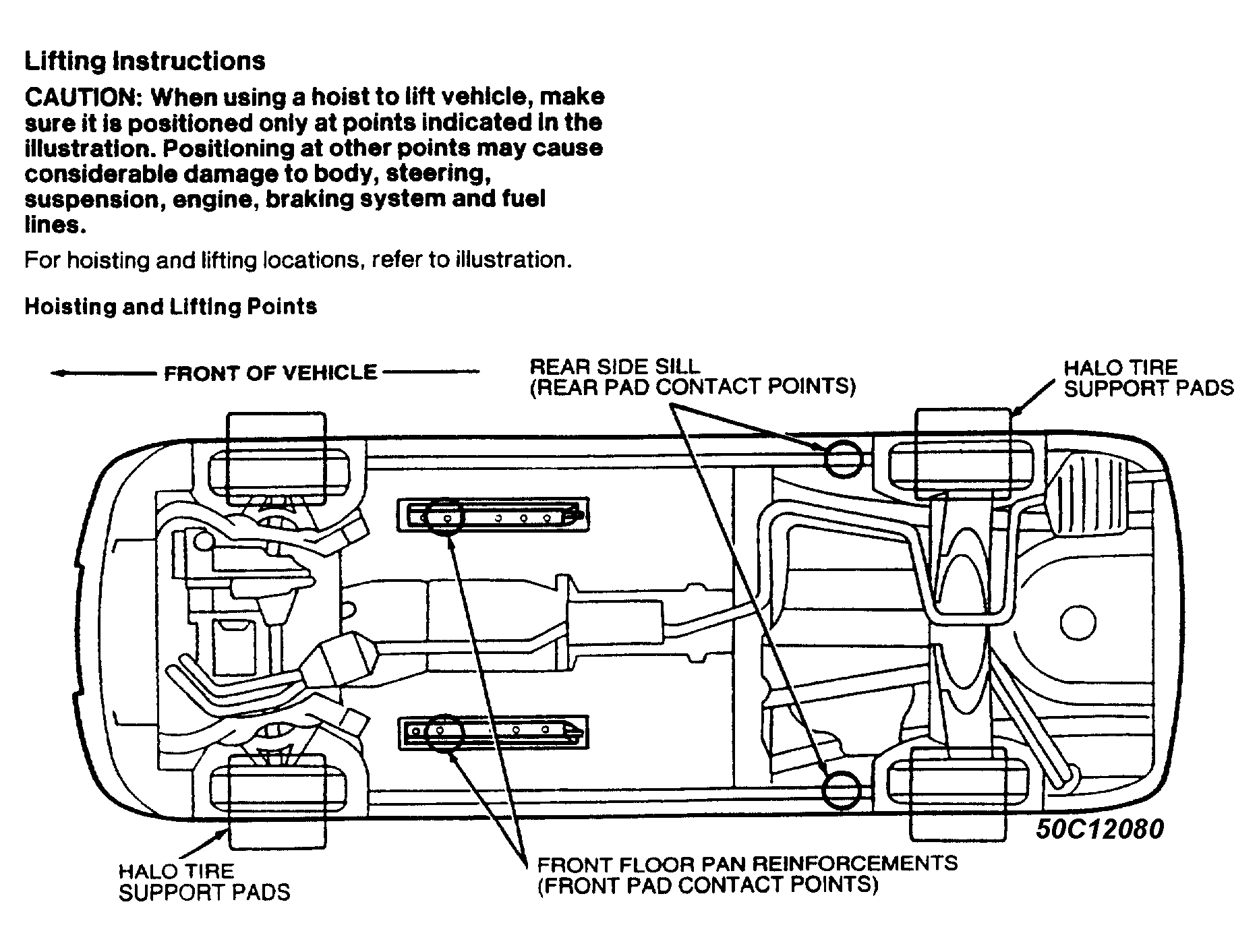

Fig 3: Lift Point Locations
G50C12080Courtesy of FORD MOTOR CO.

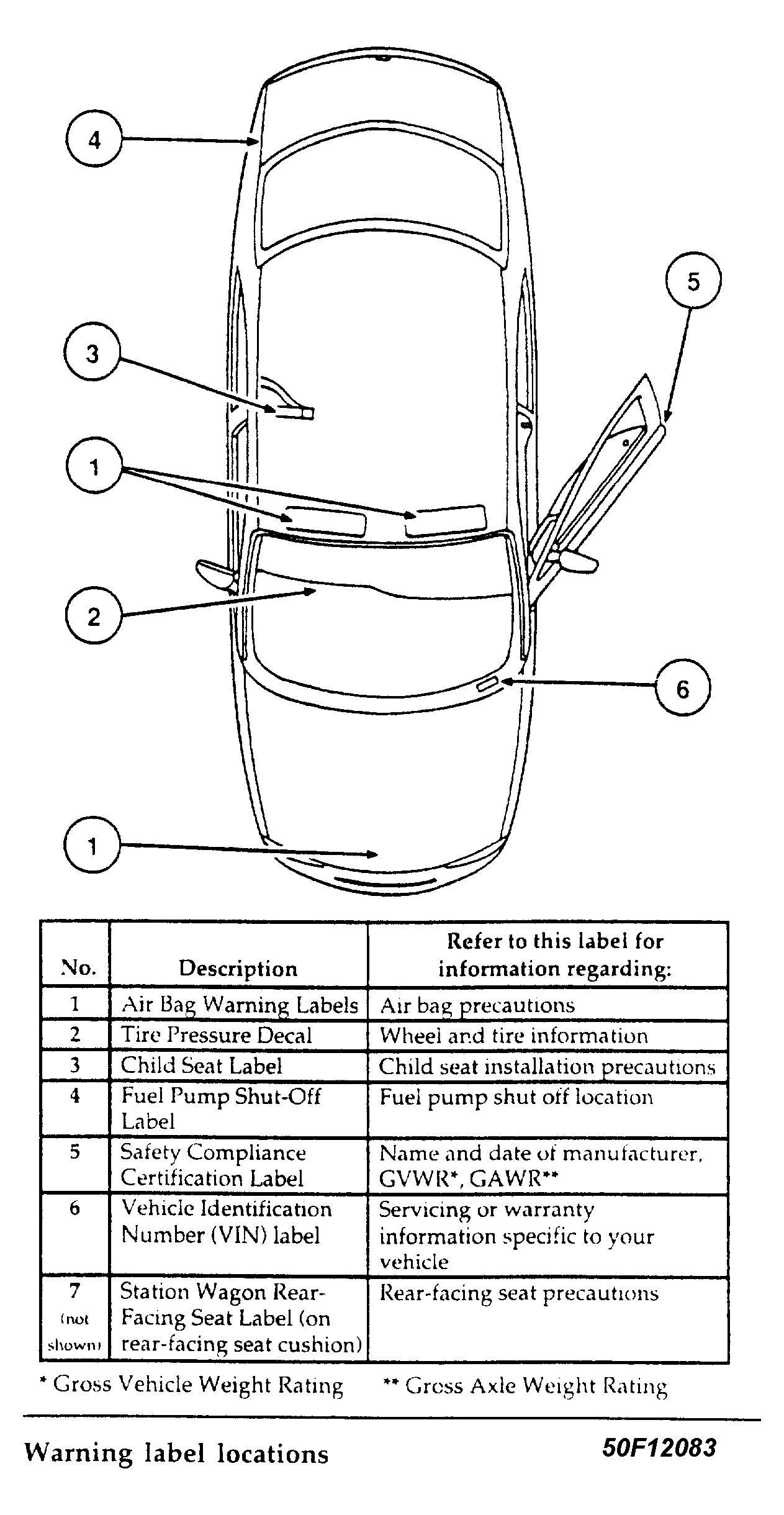

Fig 4: Identification and Warning Label Locations
G50F12083Courtesy of FORD MOTOR CO.
