Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module (2.0L) | In left rear of engine compartment, near brake booster. See Figure . |
| ABS Control Module (2.5L) | In left rear of engine compartment, near brake booster. See Figure . |
| Central Timer Module | Under left side of dash, on interior fuse panel. |
| Flasher Module | On top of steering column, on combination switch. See Figure . |
| Fuel Pump Module | Under center of rear seat. See Figure . |

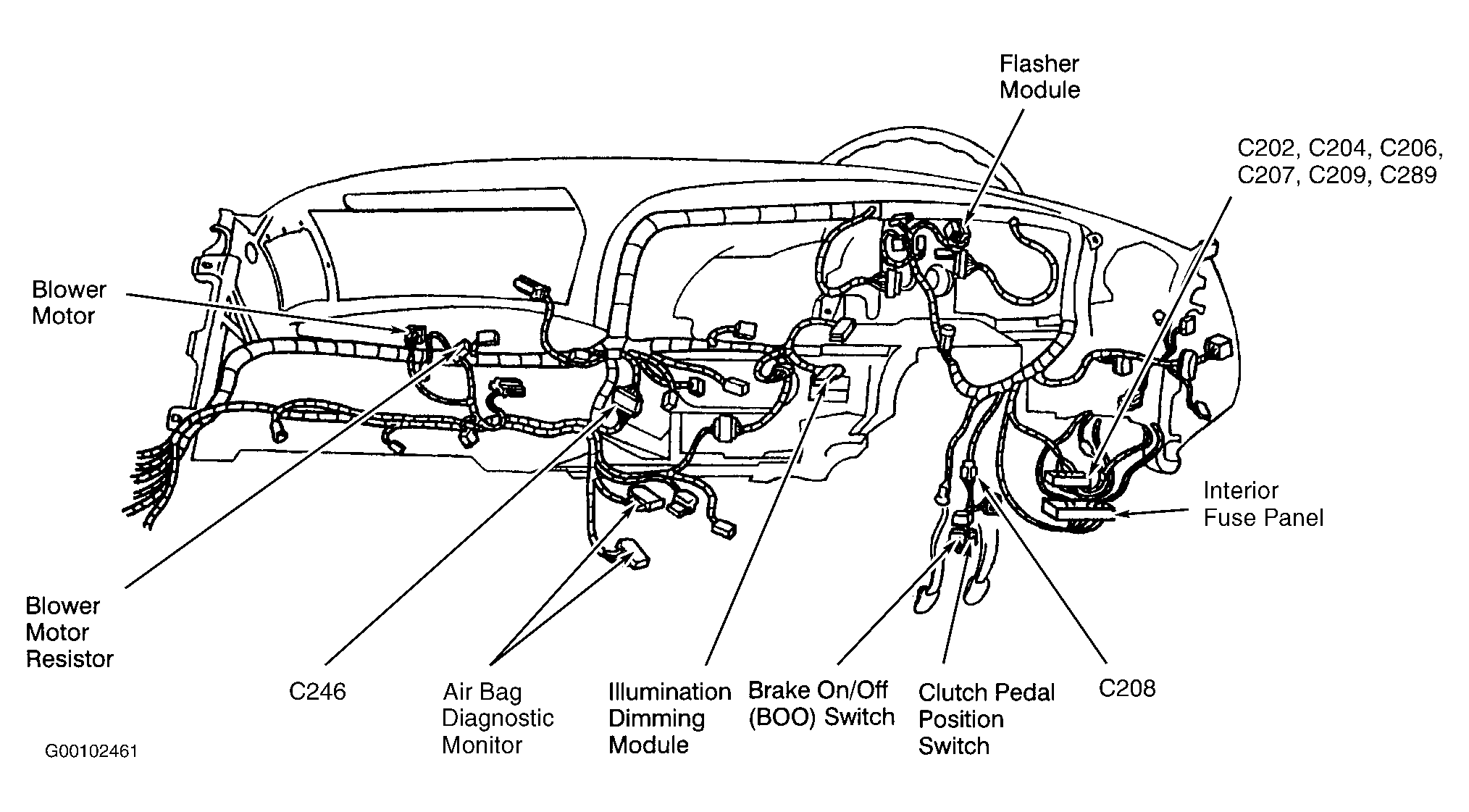

| Illumination Dimming Module | Behind dash, right of steering column. See Figure . |
| Intake Manifold Runner Control (IMRC) | Upper left rear of engine. |

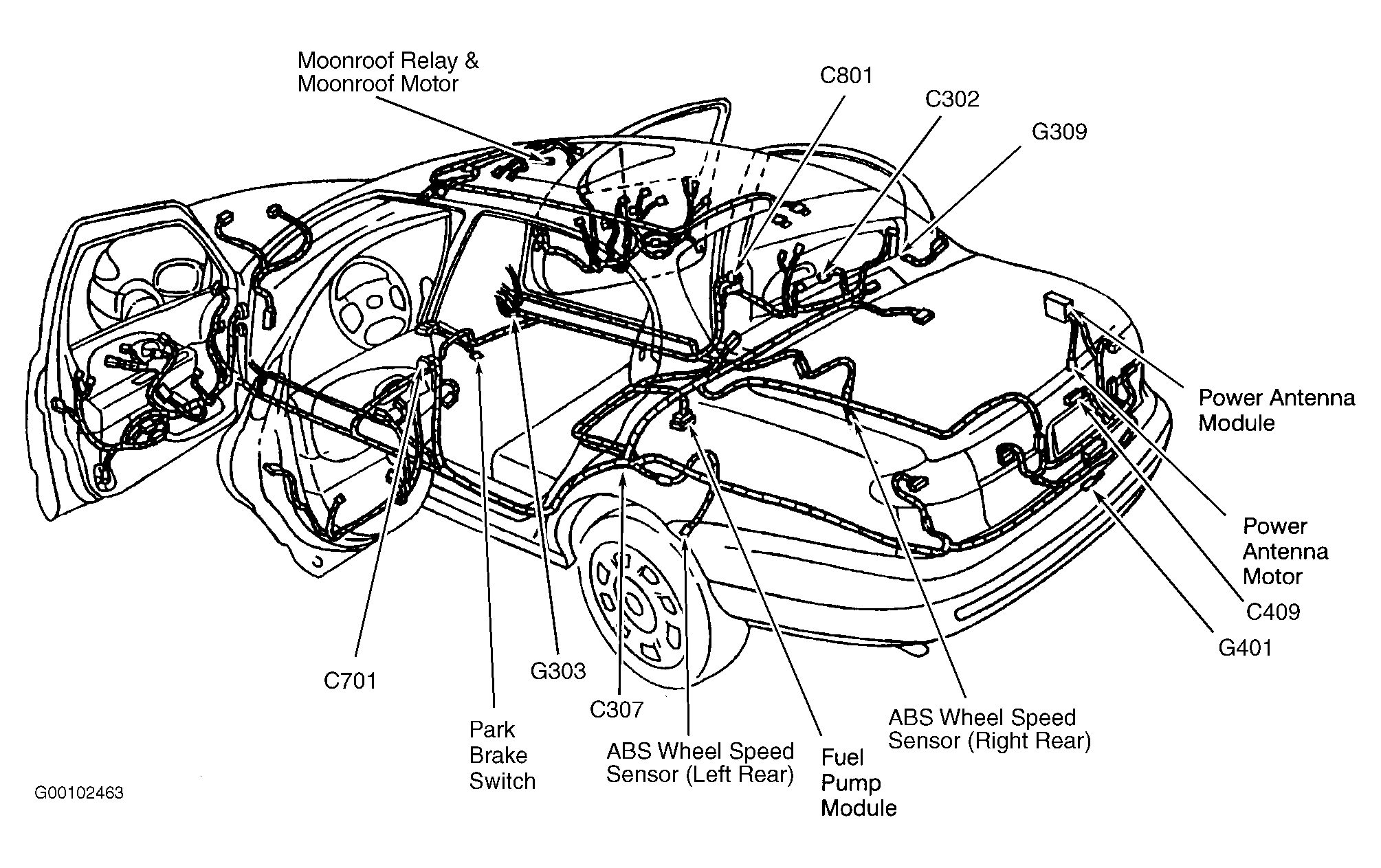

| Power Antenna Module | In right rear of luggage compartment, behind panel. See Figure . |

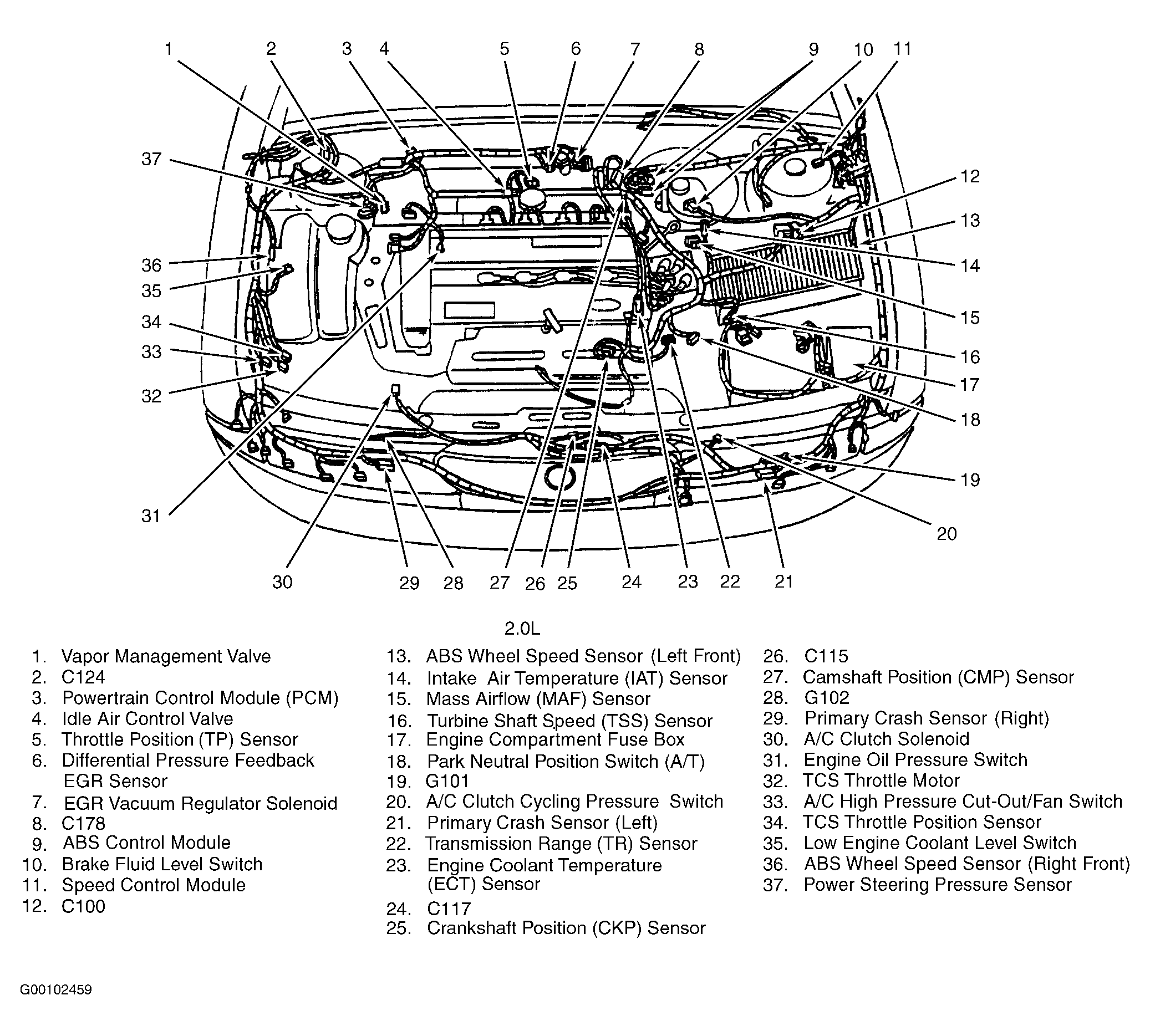

| Powertrain Control Module (PCM) (2.0L) | In right rear corner of engine compartment, behind power steering reservoir. See Figure . |

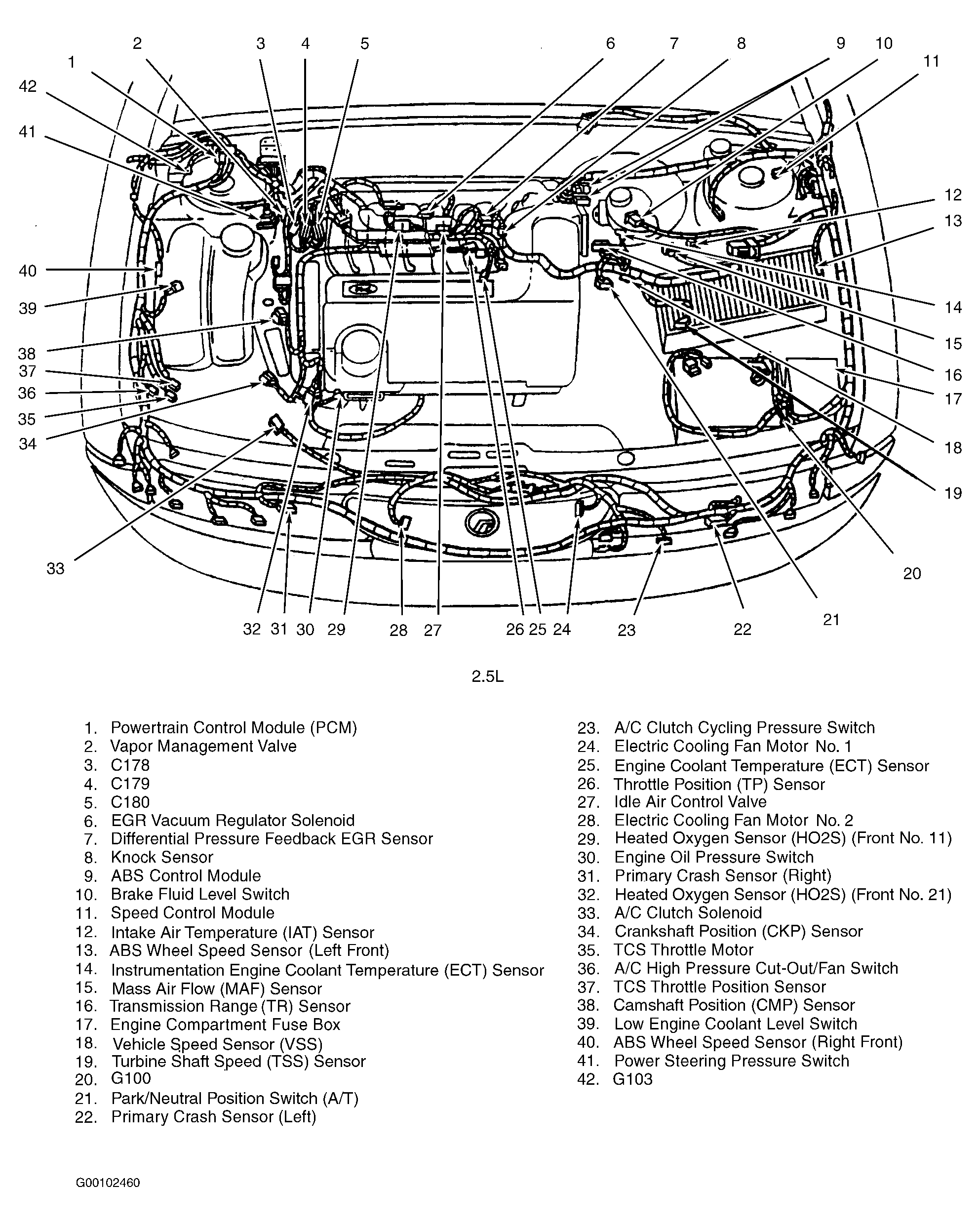

| Powertrain Control Module (PCM) (2.5L) | In right rear corner of engine compartment, behind power steering reservoir. See Figure . |

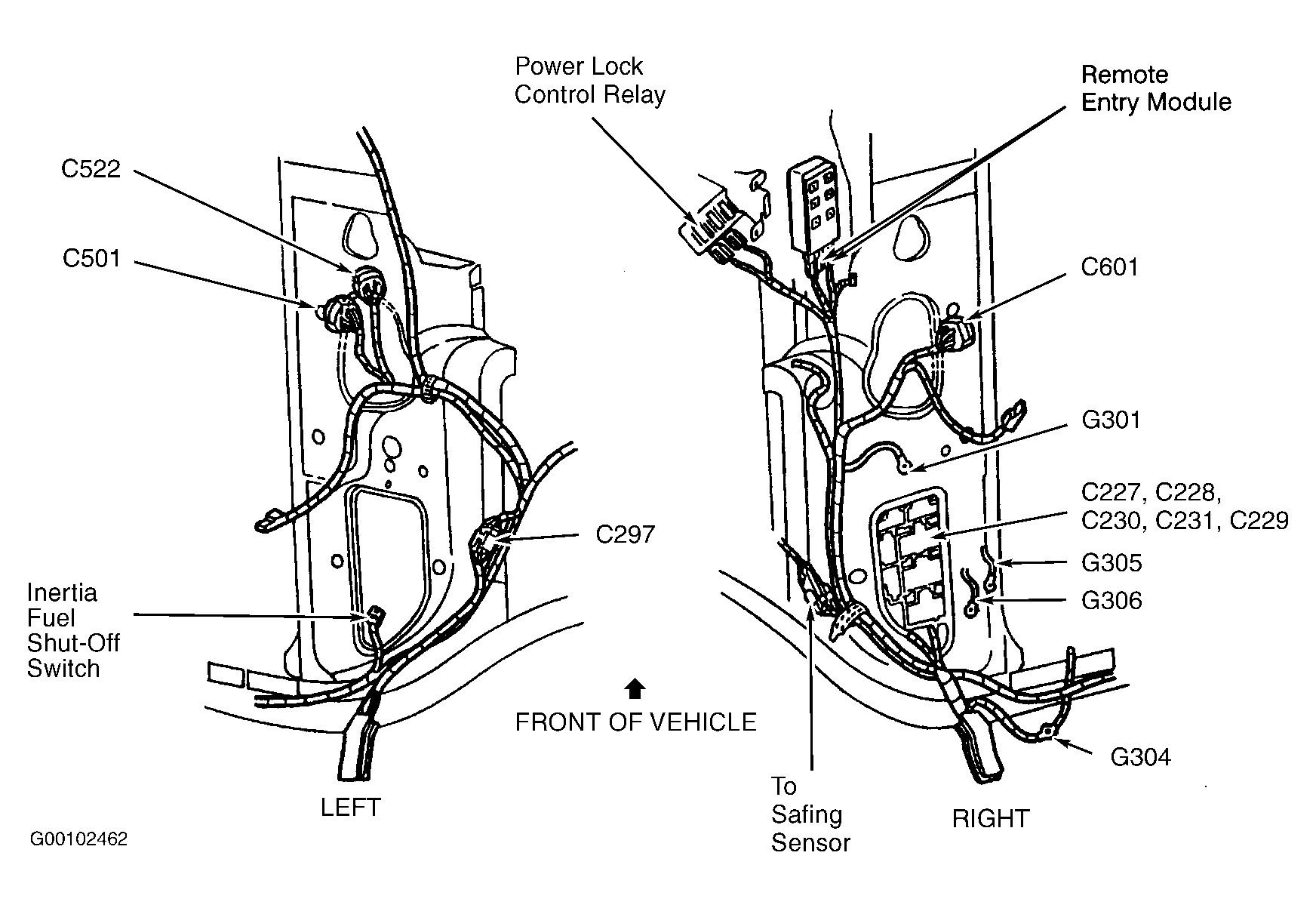

| Remote Entry Module | Under right side of dash, behind glove box. See Figure . |
| Speed Control Module (2.0L) | In left rear corner of engine compartment, near strut tower. See Figure . |
| Speed Control Module (2.5L) | In left rear of corner engine compartment, near strut tower. See Figure . |
