Additional Service Information

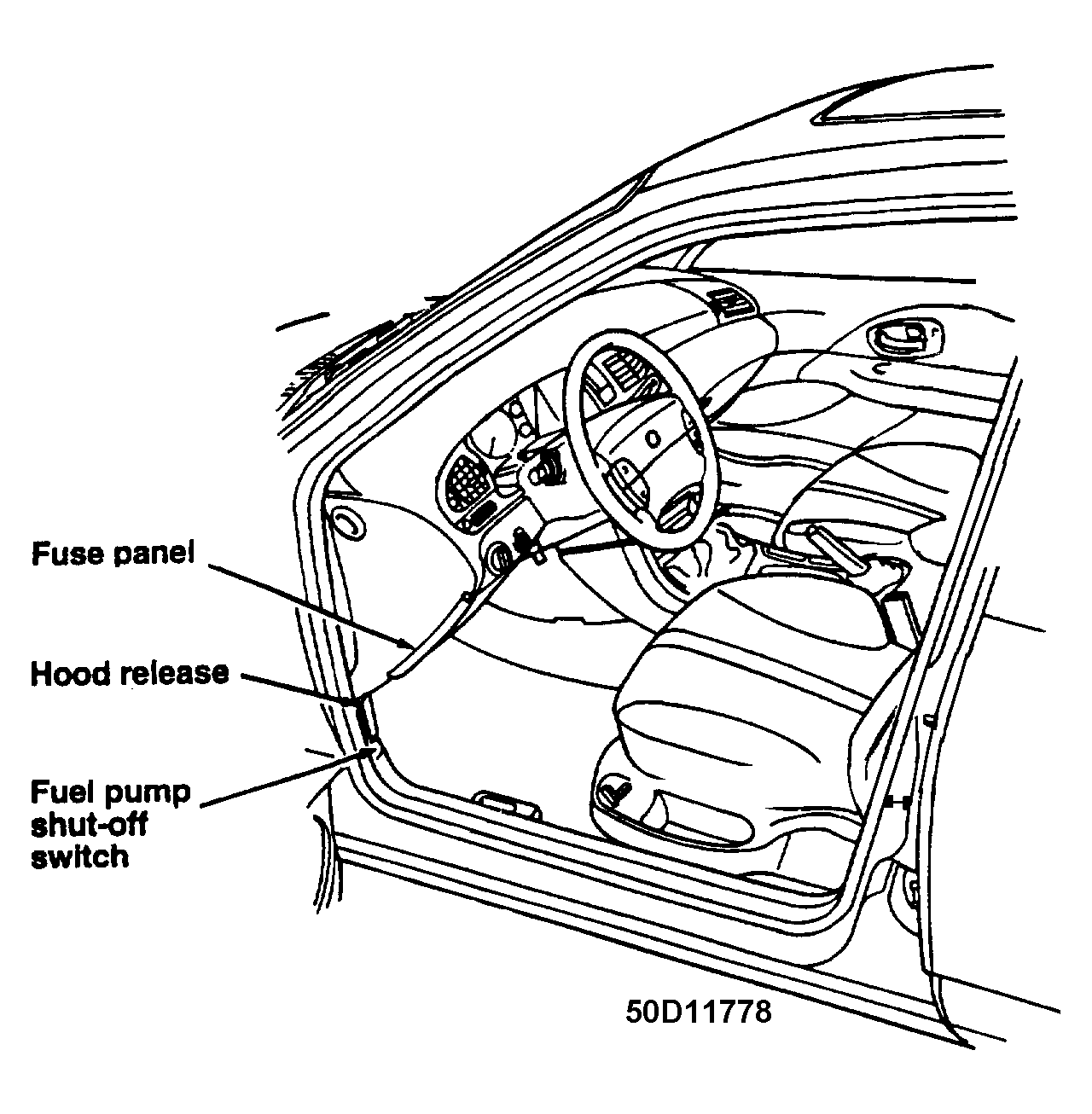

Fig 1: Fuel Pump Shutoff Location
G50D11778Courtesy of FORD MOTOR CO.

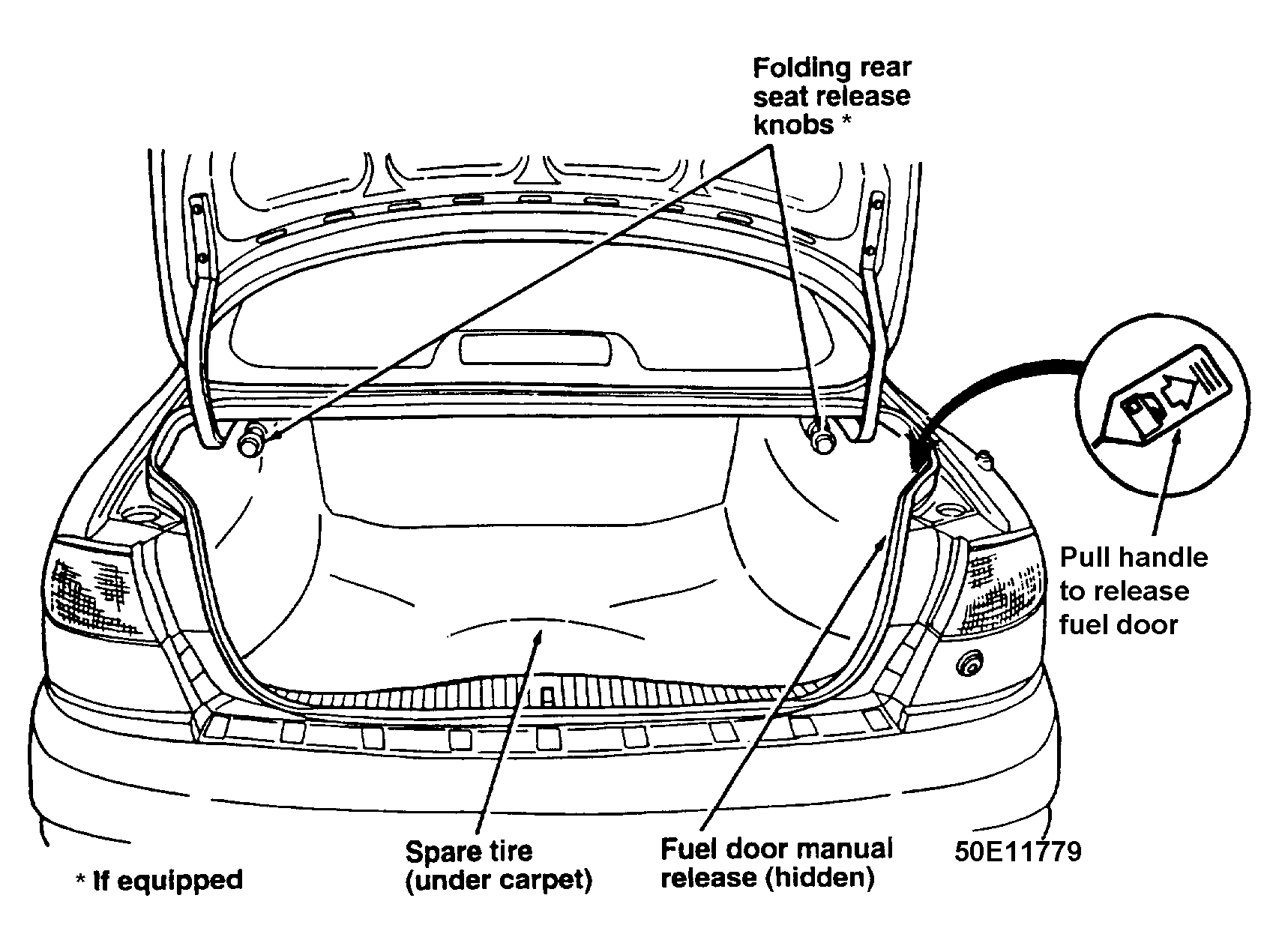

Fig 2: Fuel Door Release (Manual Override)
G50E11779Courtesy of FORD MOTOR CO.

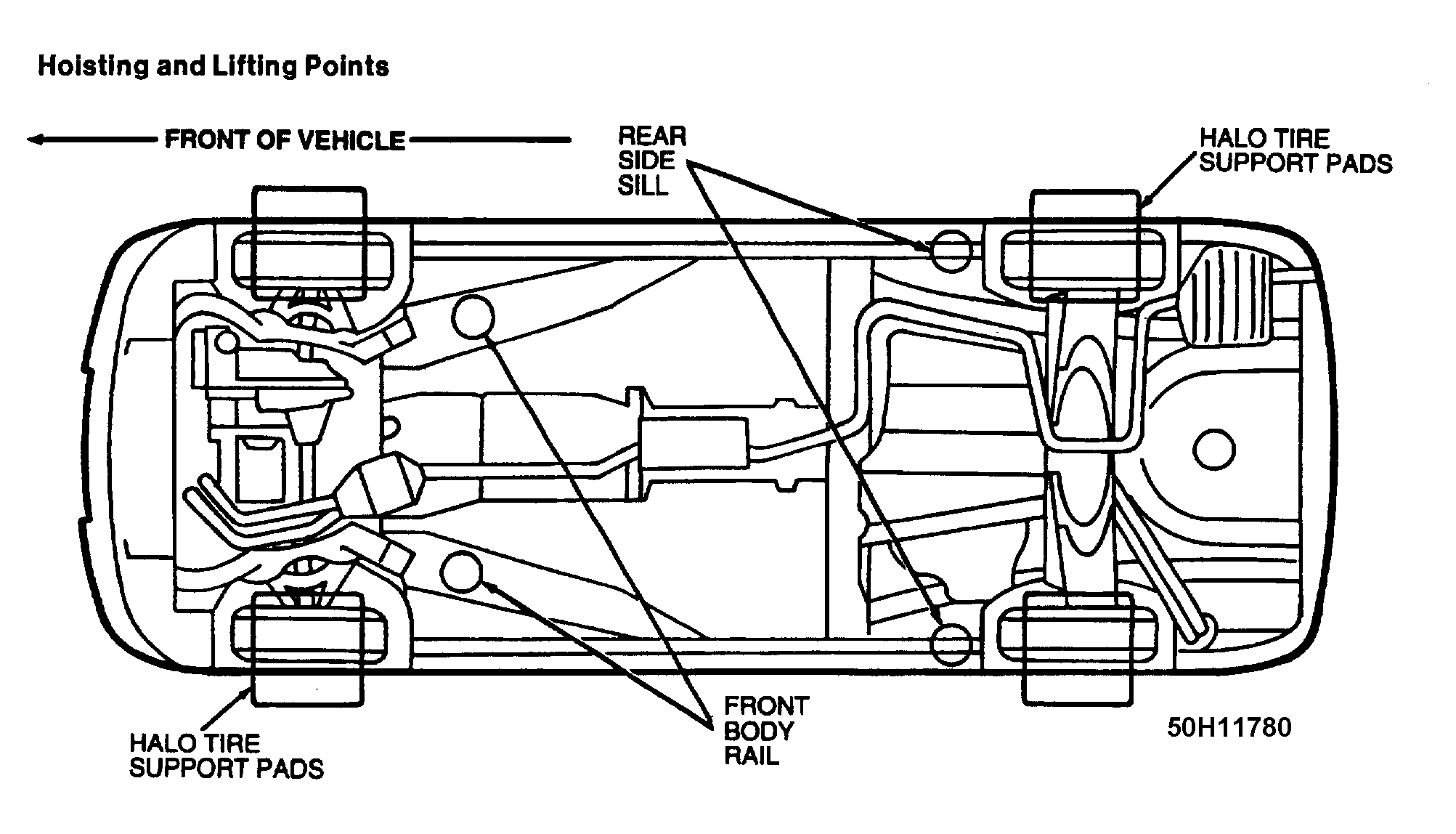

Fig 3: Hoist Point Locations
G50H11780Courtesy of FORD MOTOR CO.
