Mirror Motor

  1. Turn ignition off. Remove door trim panel. Disconnect mirror motor harness connector. Apply battery voltage to terminal No. 5 and ground to terminal No. 4. See Fig 1 . Switch ground to terminal No. 6. Mirror should move left, then down.
  2. Apply ground to terminal No. 5 and battery voltage to terminal No. 4. Switch battery voltage to terminal No. 6. Mirror should move right, then up.

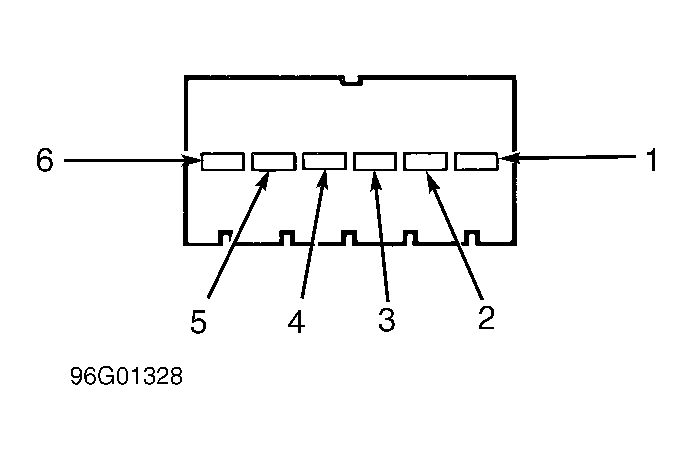

Fig 1: Identifying Power Mirror Motor Terminals
G96G01328Courtesy of FORD MOTOR CO.
