Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

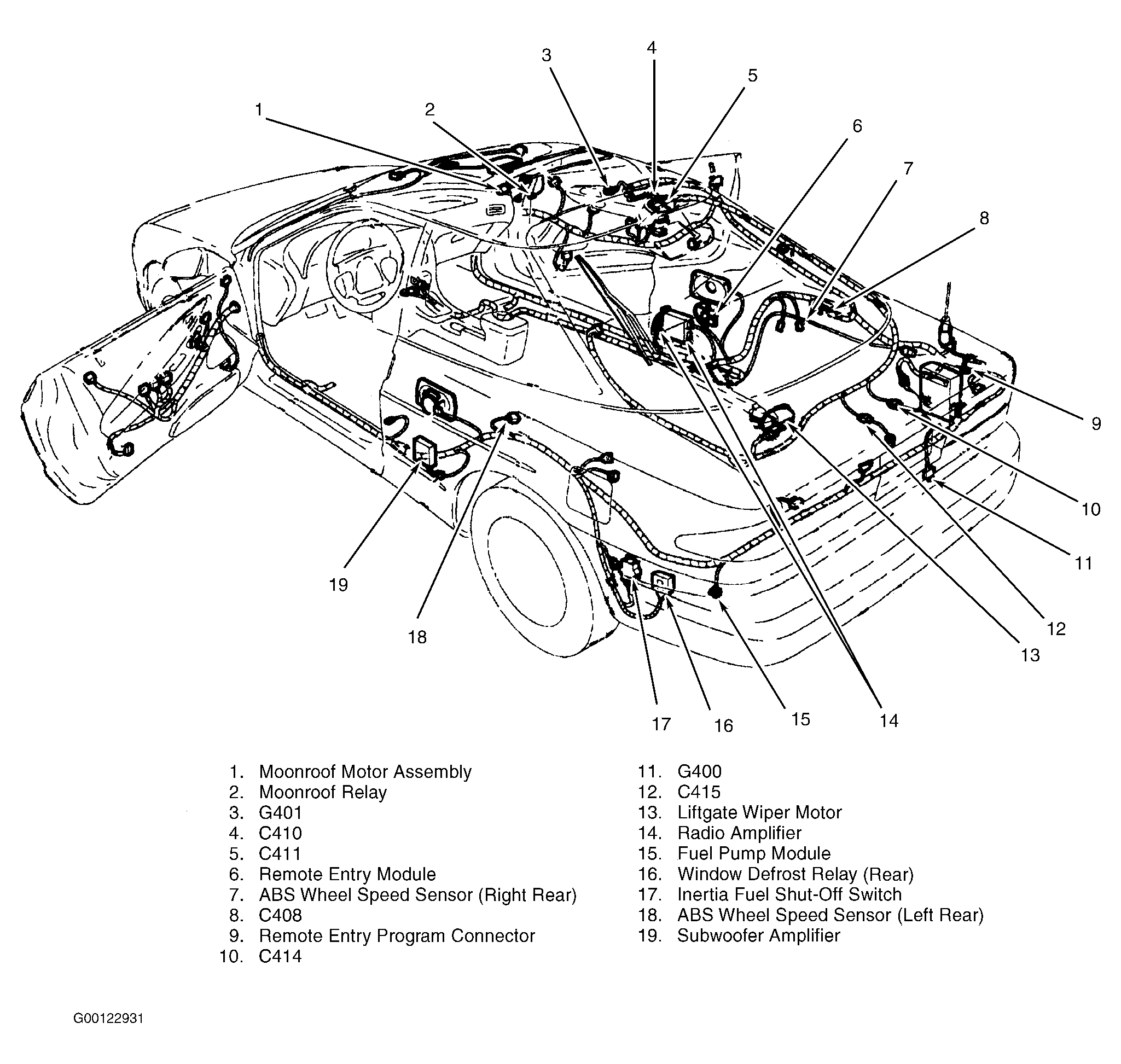

Fig 1: Vehicle Overview
G00122931

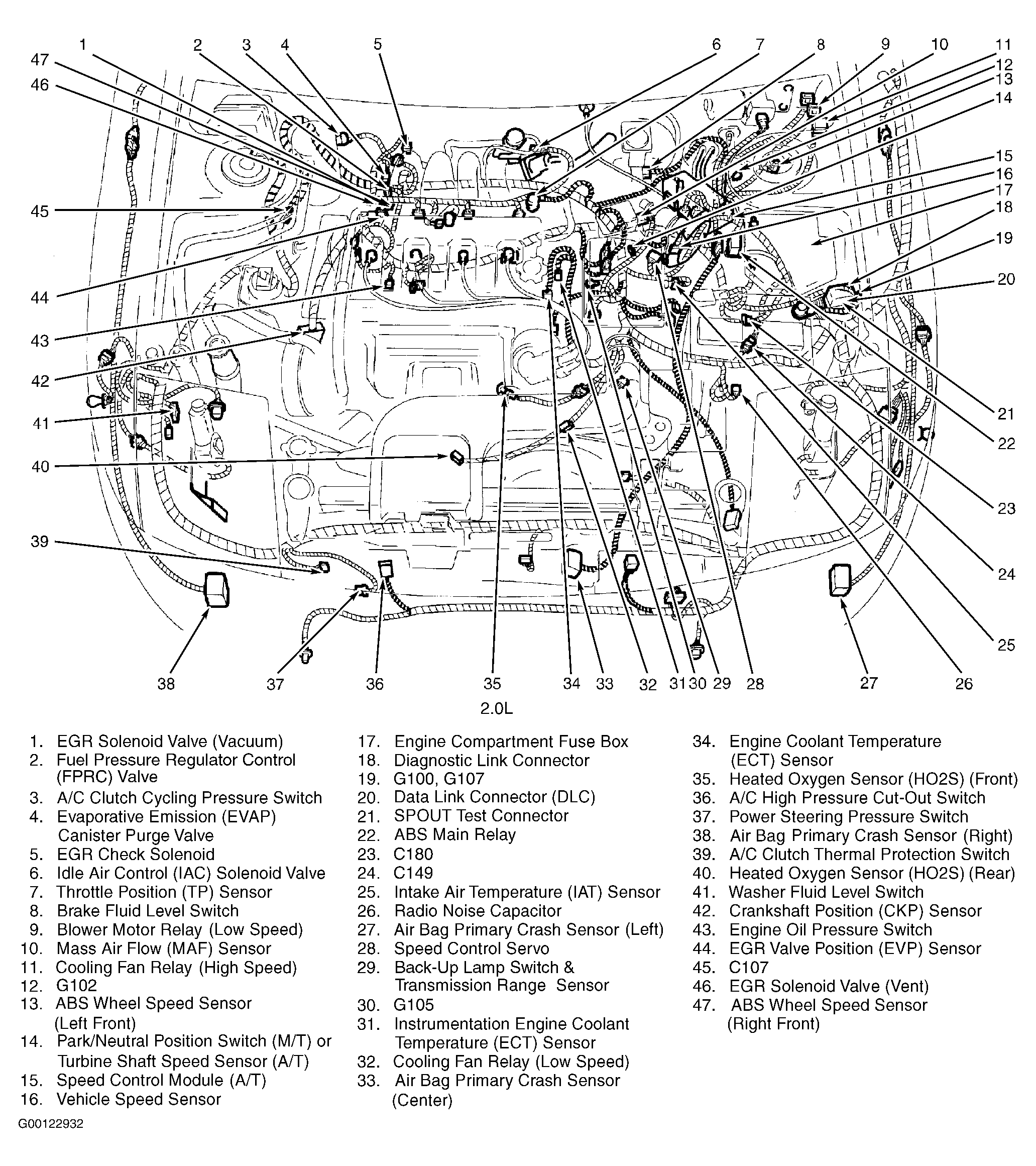

Fig 2: Engine Compartment (2.0L)
G00122932

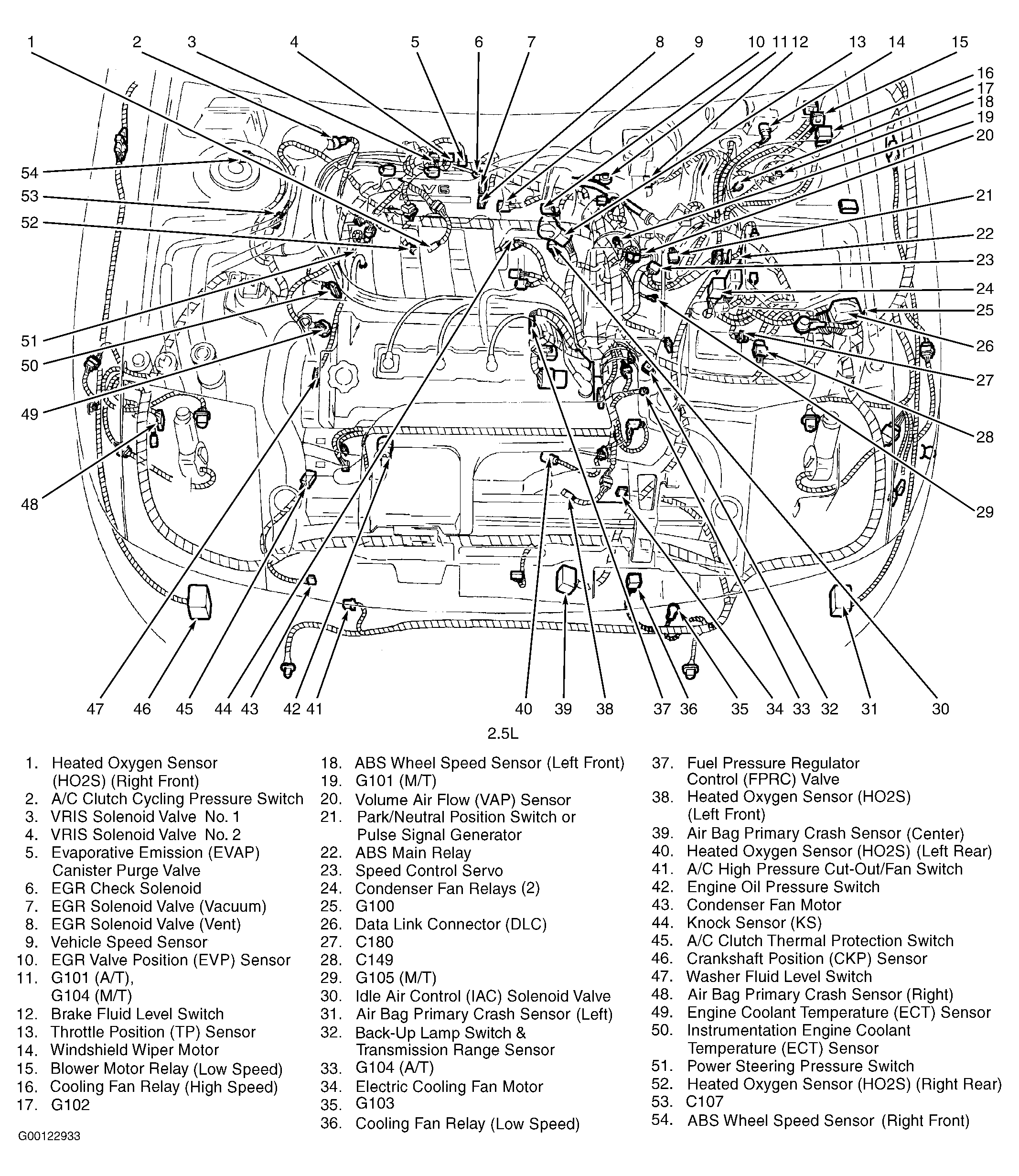

Fig 3: Engine Compartment (2.5L)
G00122933

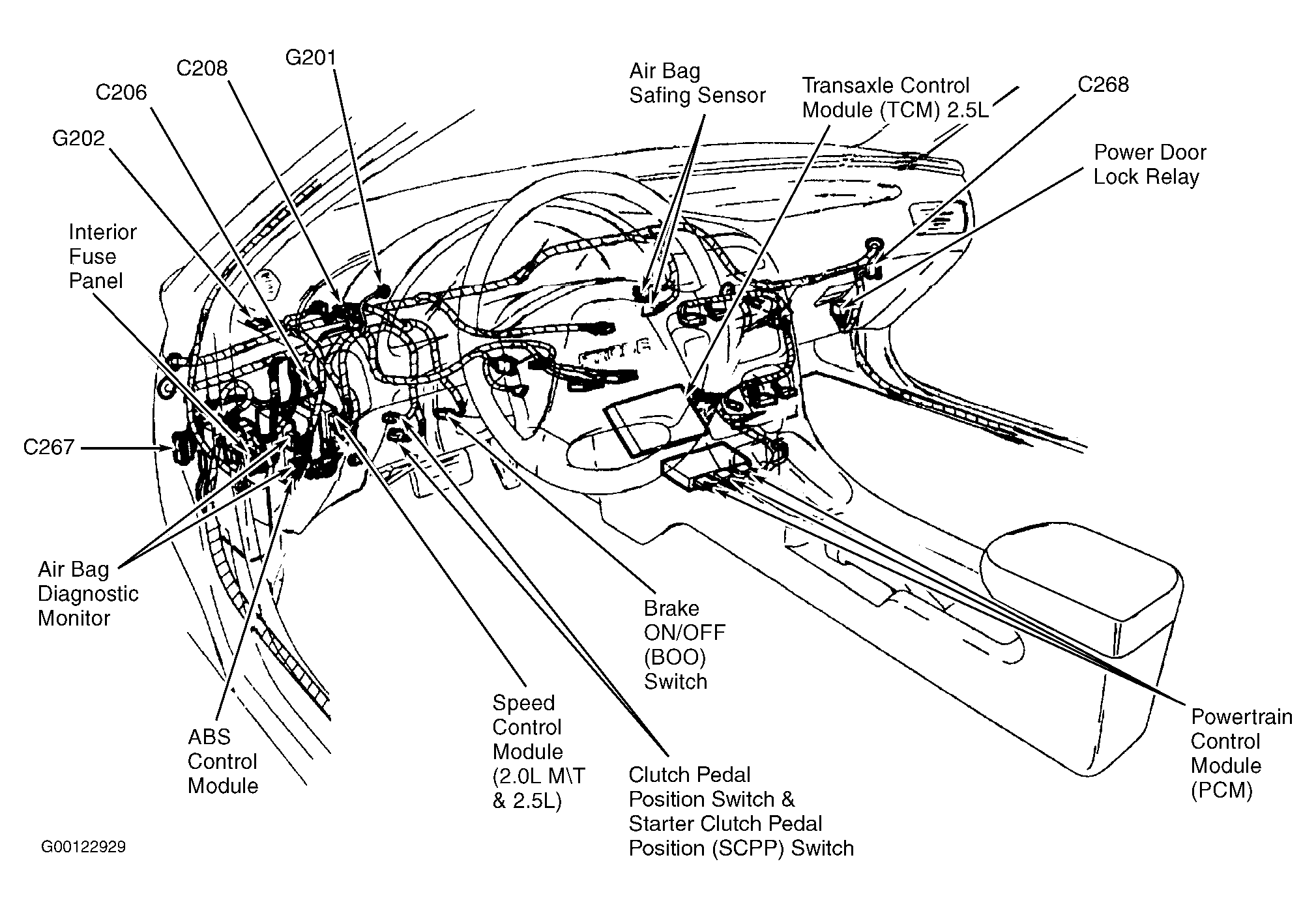

Fig 4: Dash View
G00122929

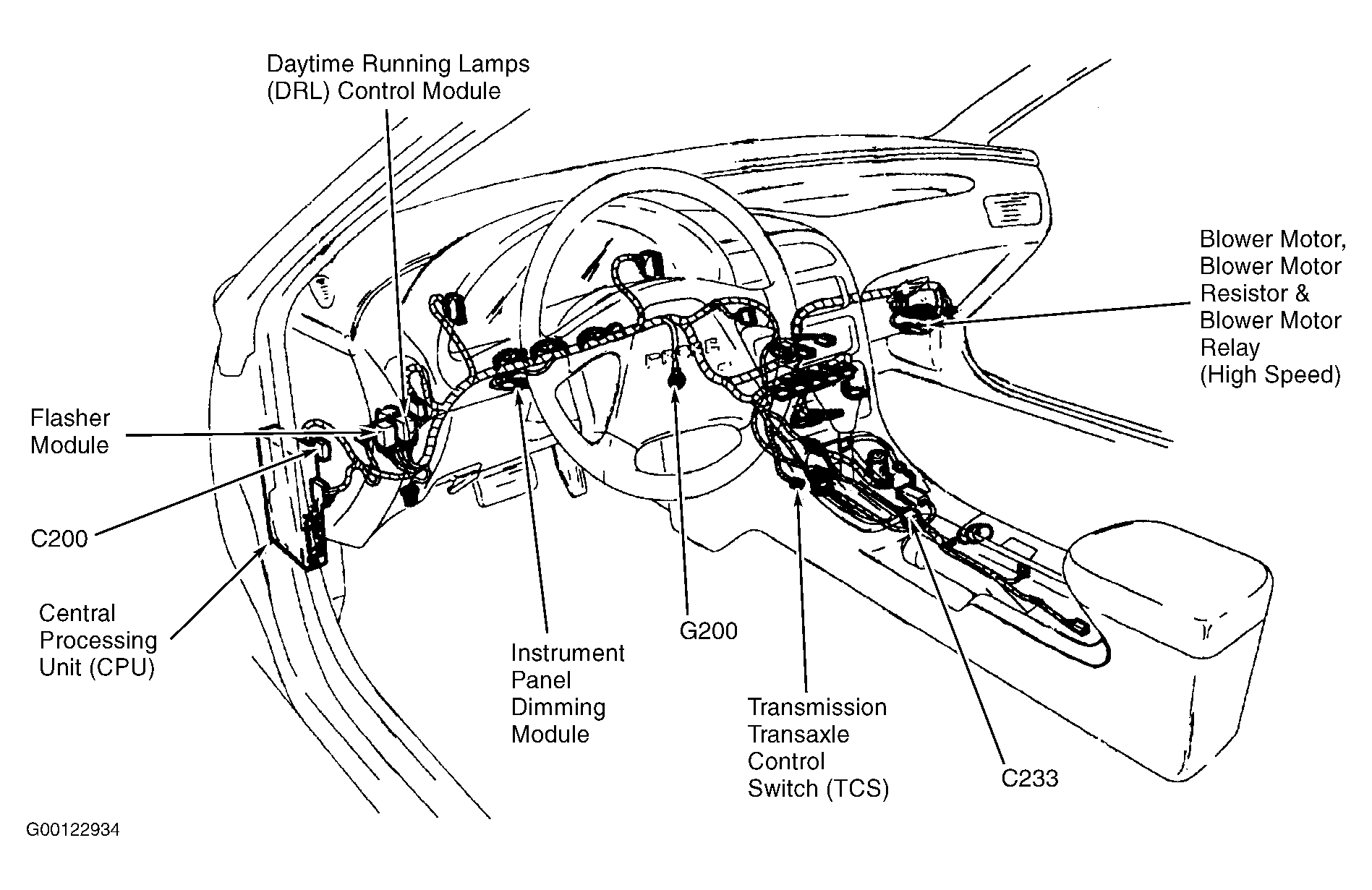

Fig 5: Dash View
G00122934
