Vehicle Calibration

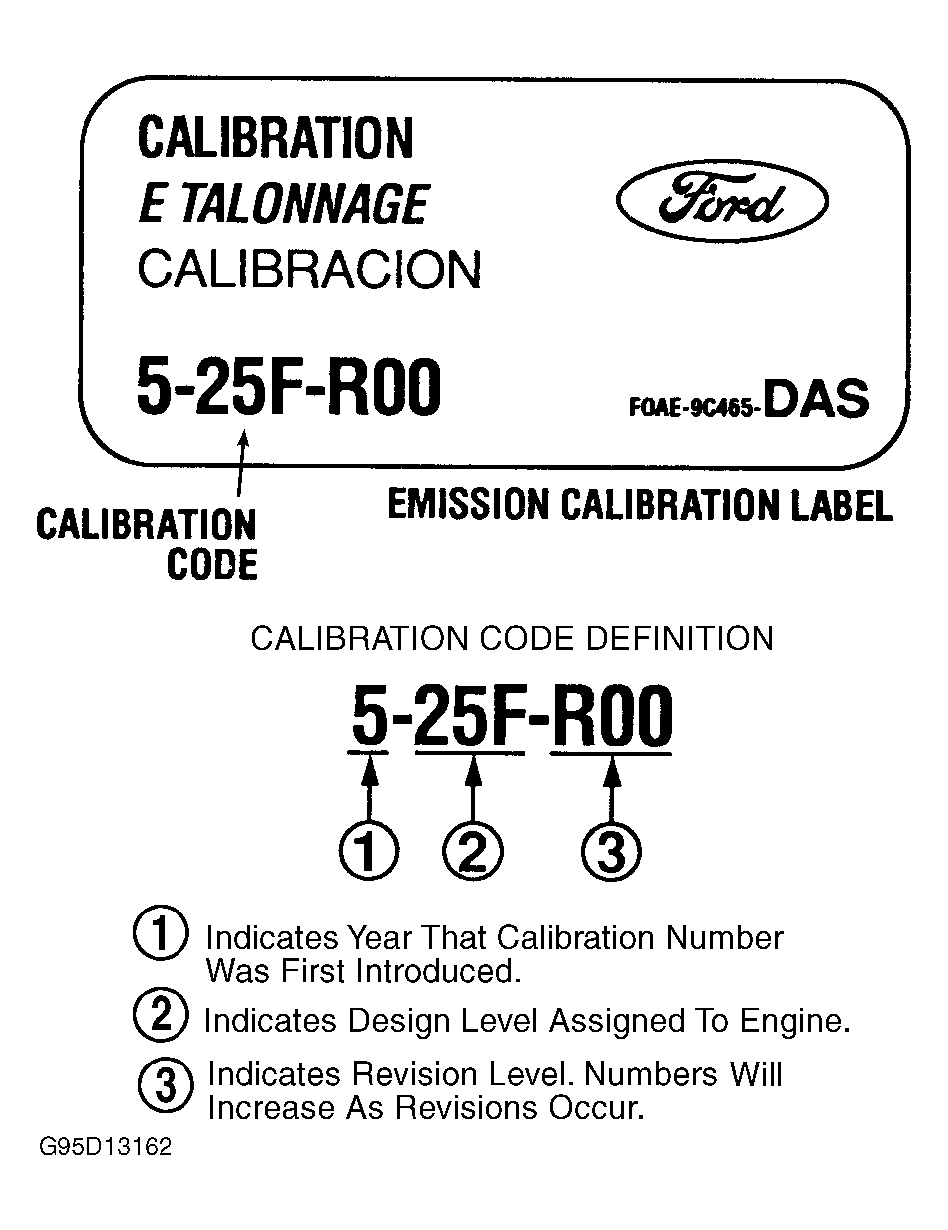

Vacuum diagrams are identified by calibration code. Use the Emission Calibration Label to identify calibration. Calibration label is attached to left door or left door pillar. See Fig 1 . Use calibration code to select vacuum diagram.
NOTE:
Vacuum diagrams for calibrations not shown are not available from manufacturer.
VACUUM DIAGRAM APPLICATIONS
| Application & Calibration Codes | See | |||||
|---|---|---|---|---|---|---|
| Continental | ||||||
| 4.6L | ||||||

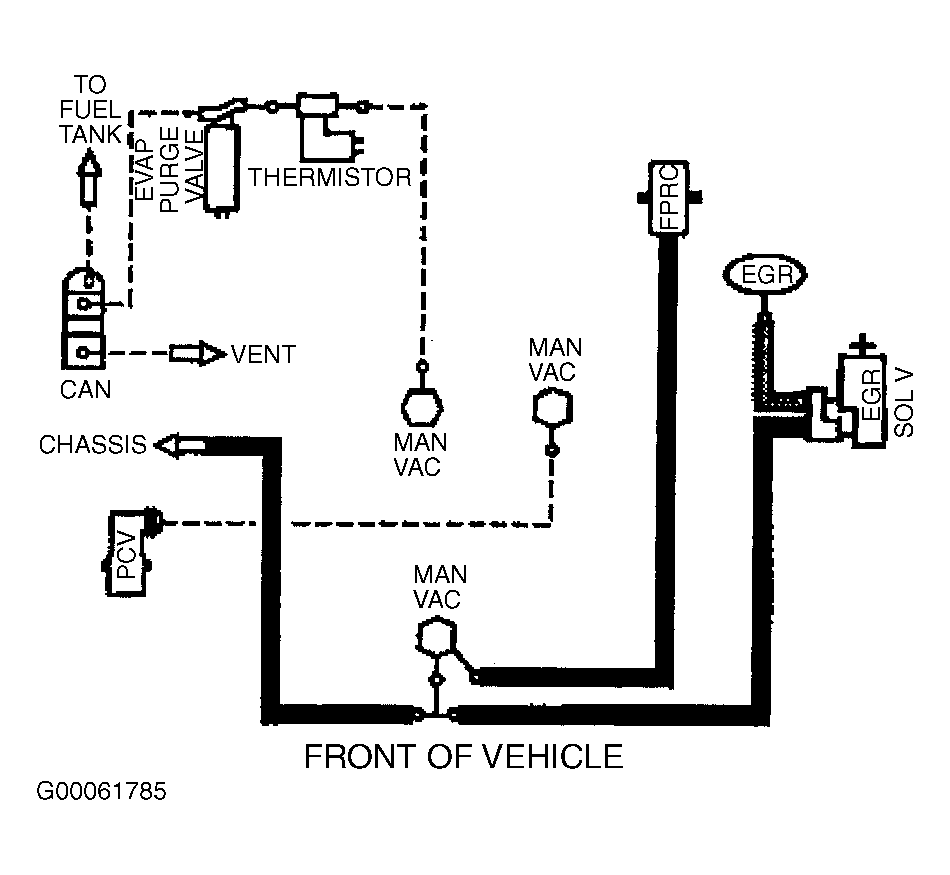

| 7-38D-R07, 7-38D-R11, 7-38R-R07, 7-38R-R11 | Fig 2 | |||||
| Contour & Mystique | ||||||
| 2.0L | ||||||

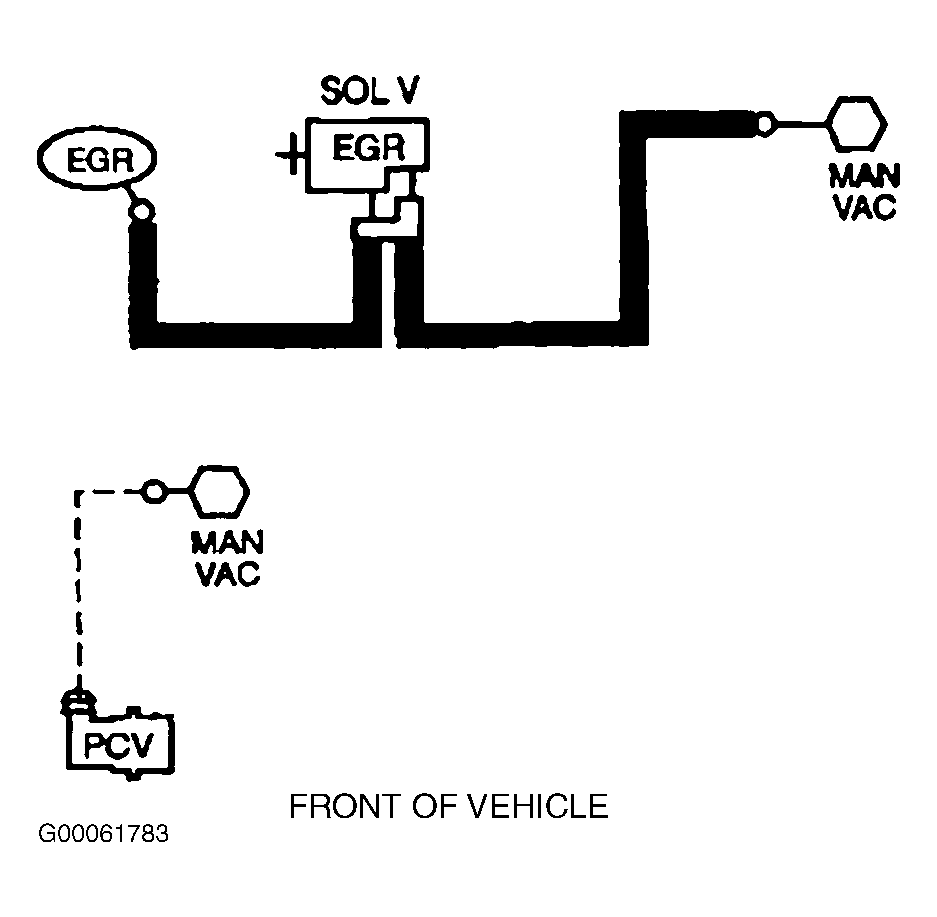

| 7-03C-R05, 7-03S-R05, 7-04C-R05, 7-04C-R10, 7-04S-R05, 7-04S-R10 | Fig 3 | |||||
| 2.5L | ||||||

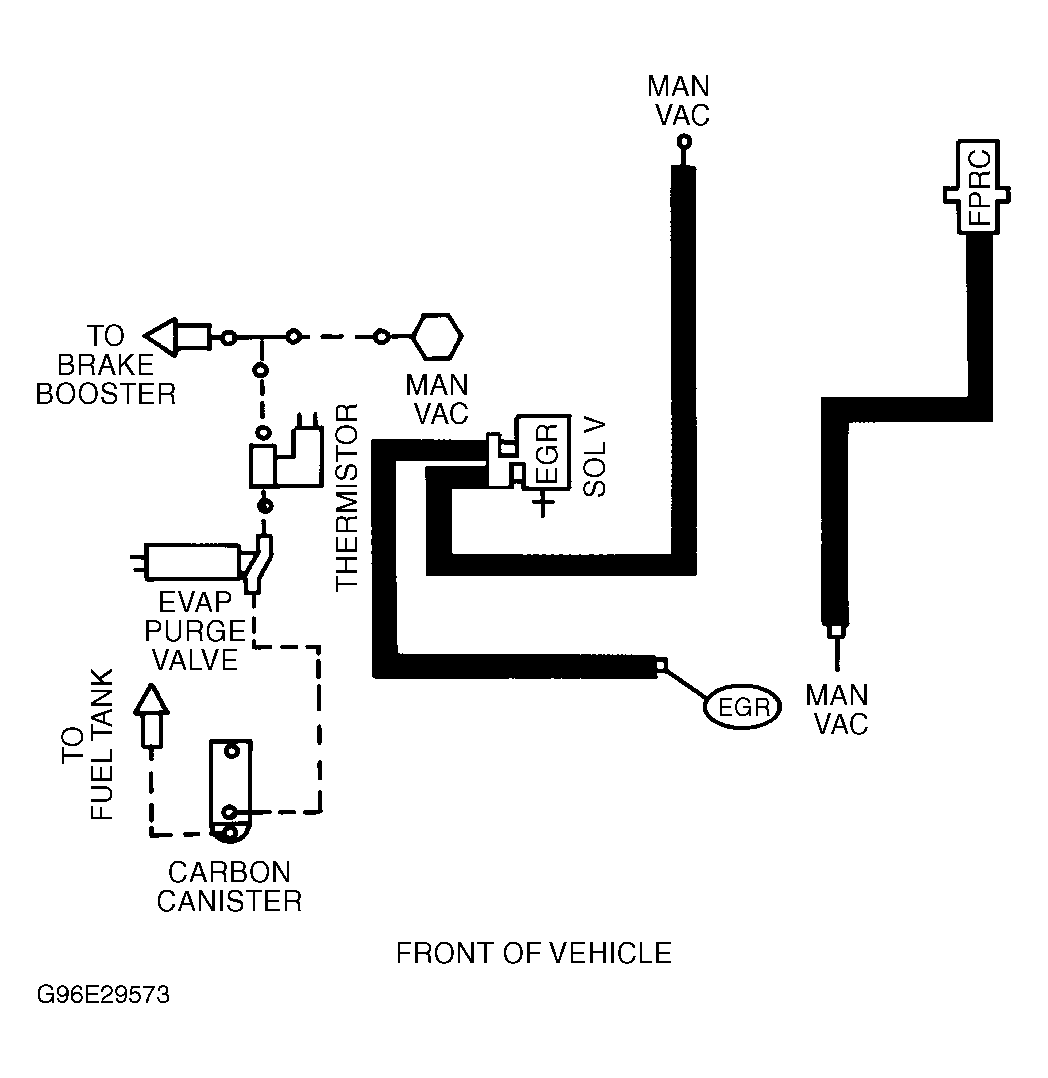

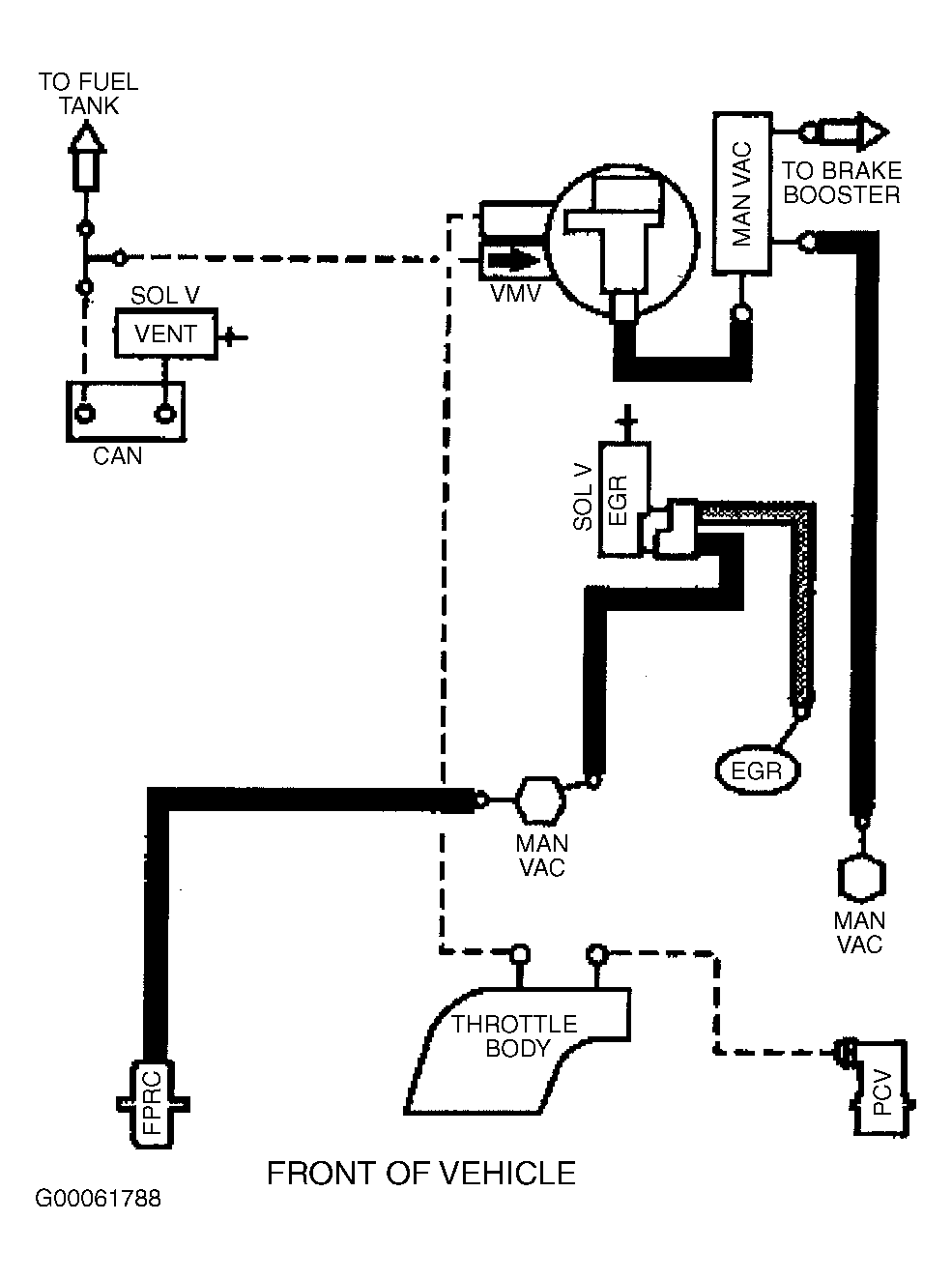

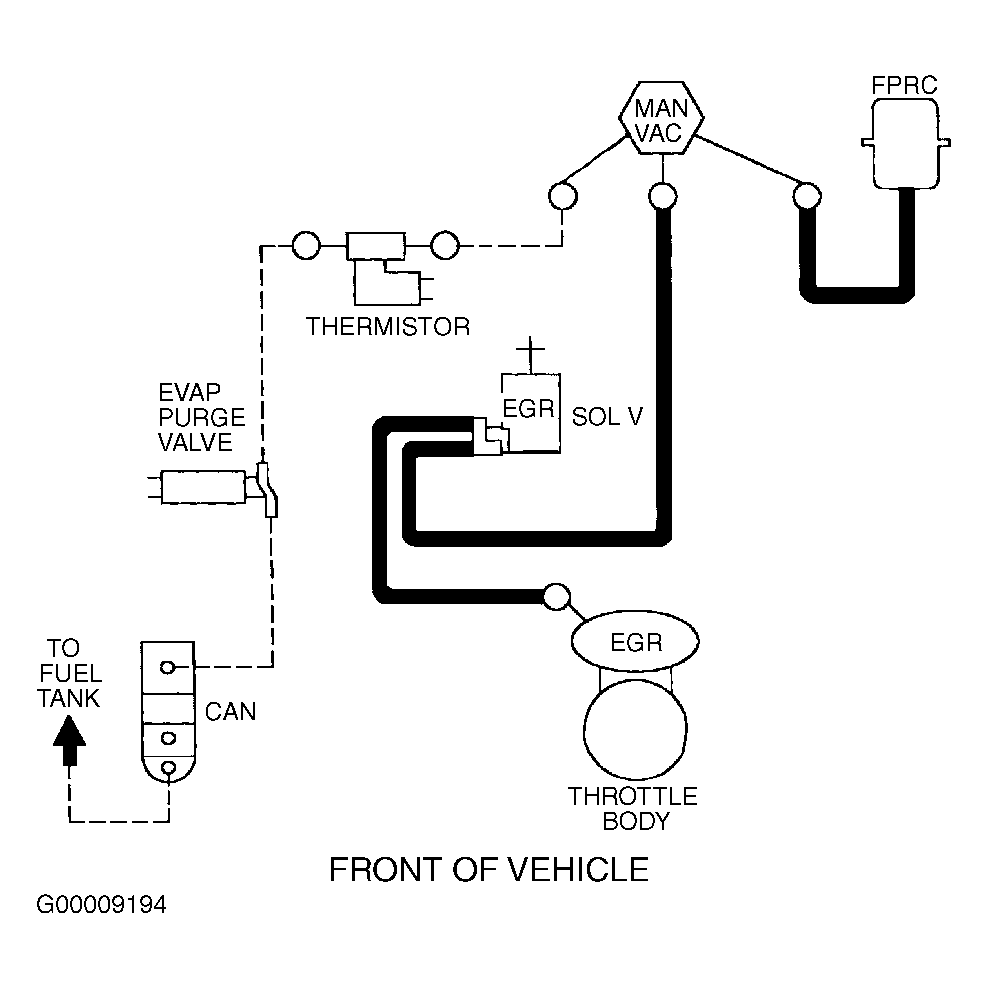

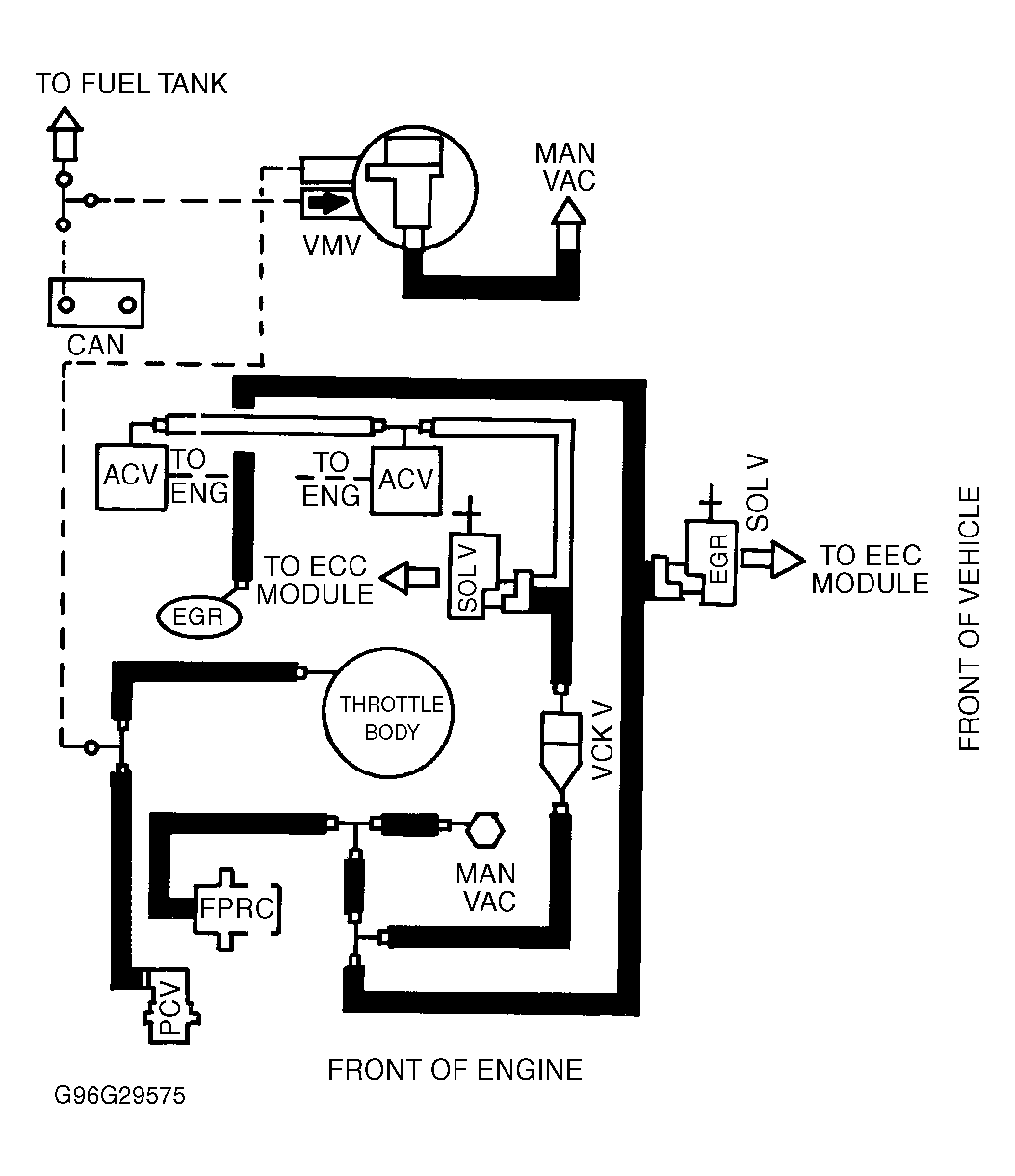

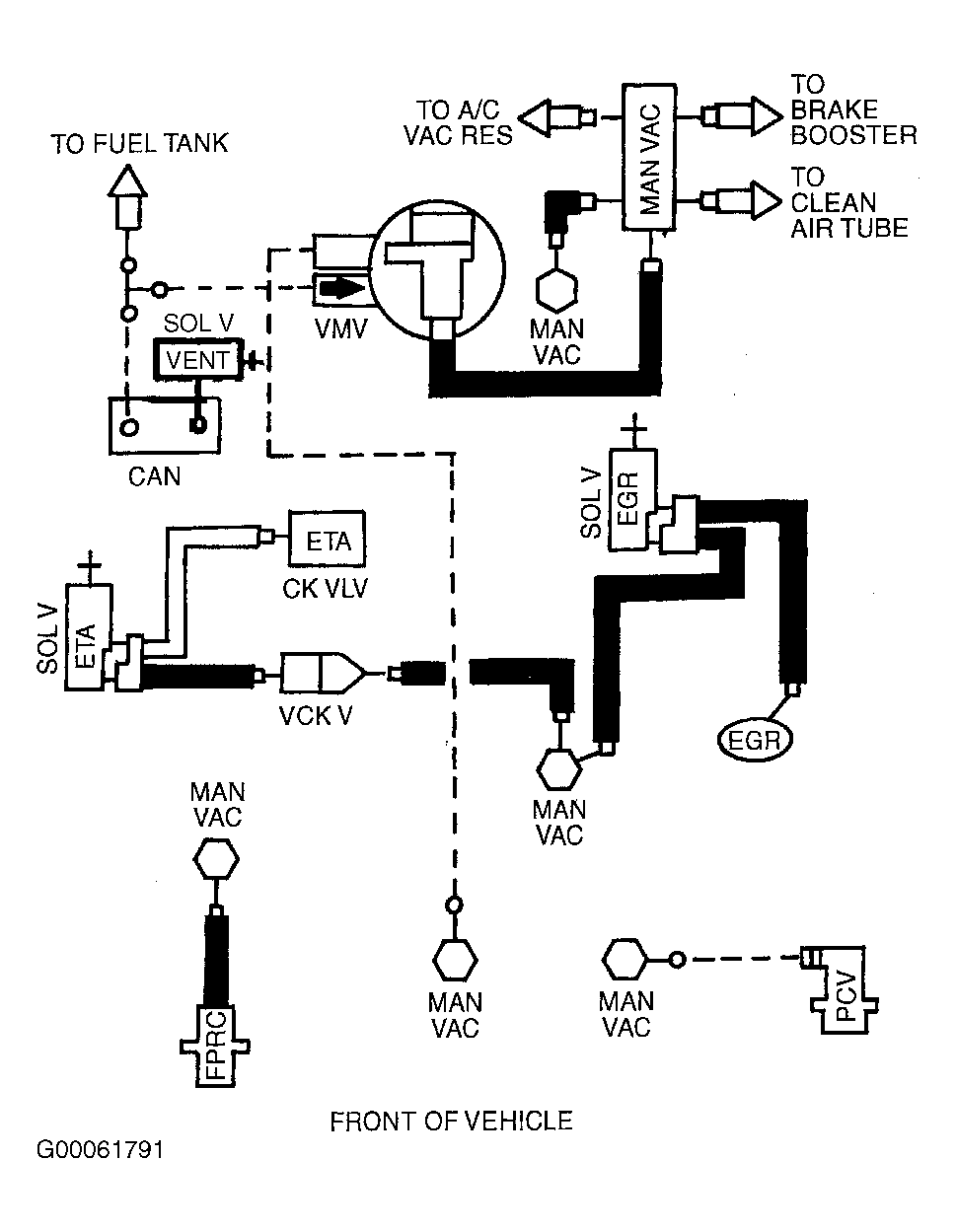

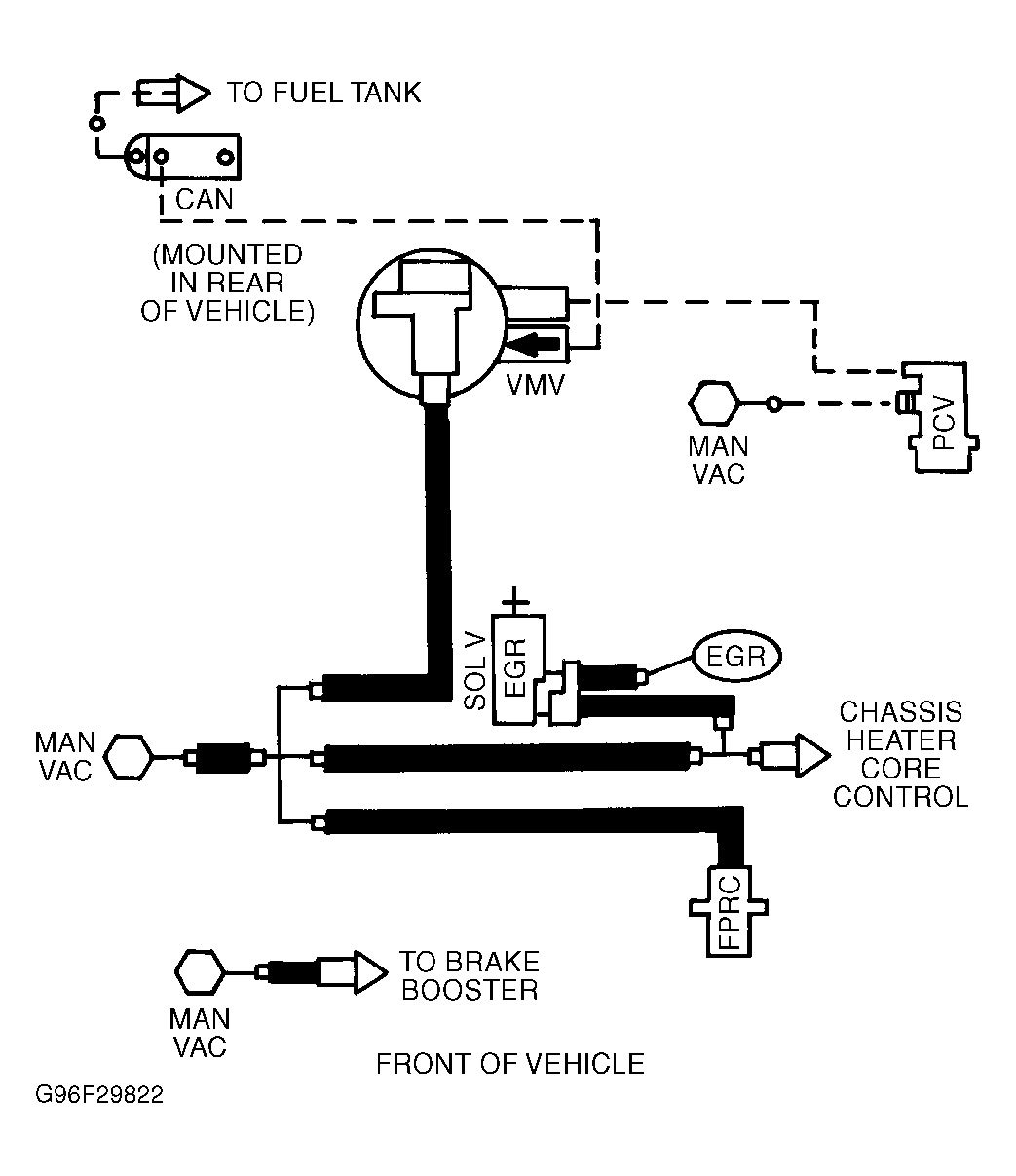

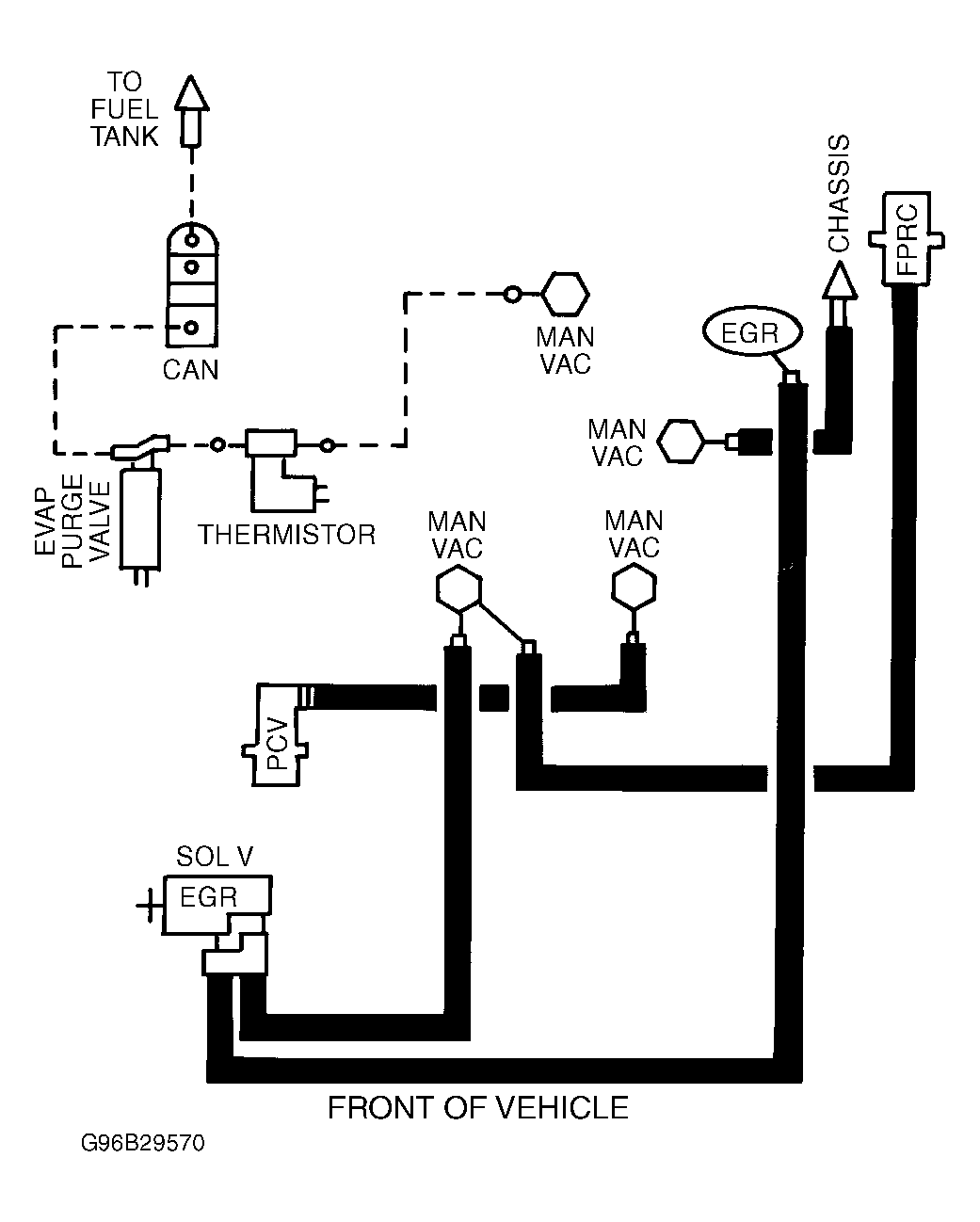

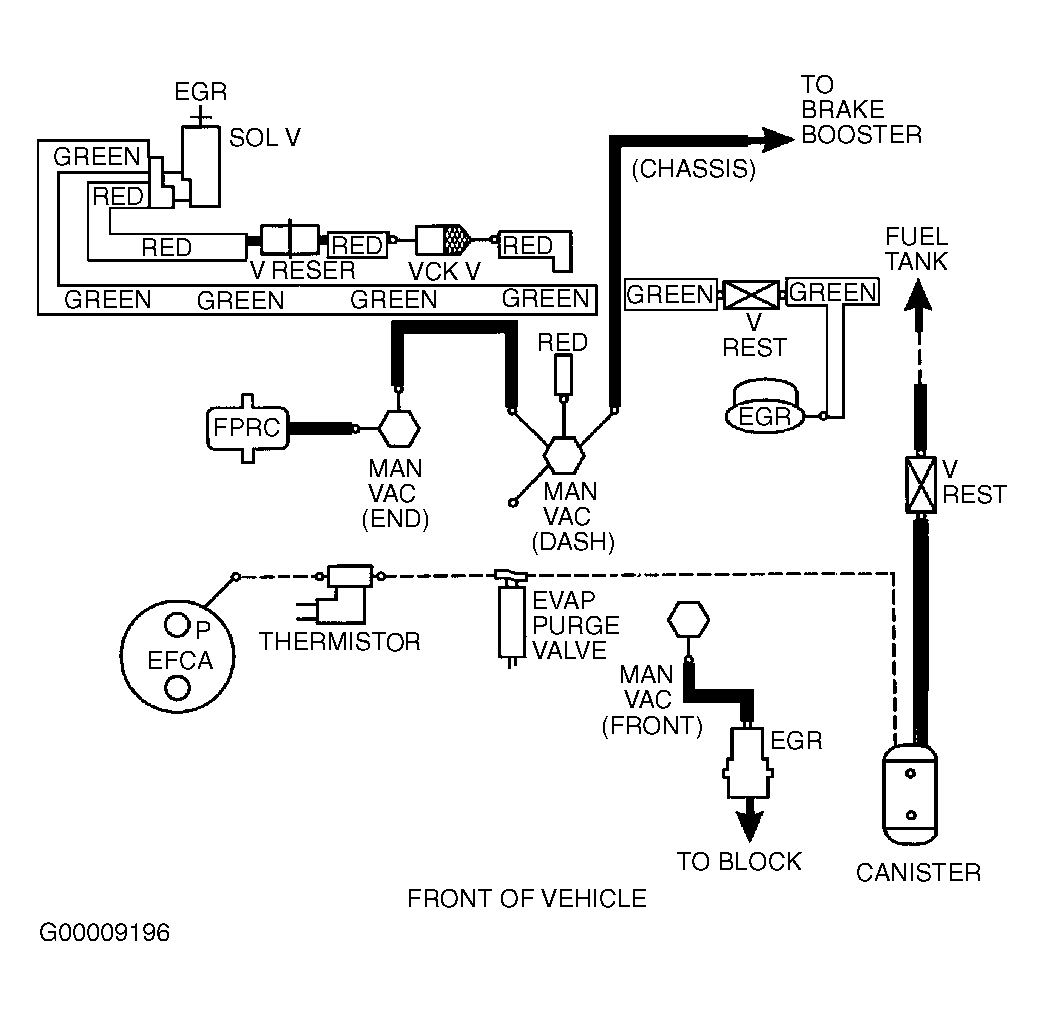

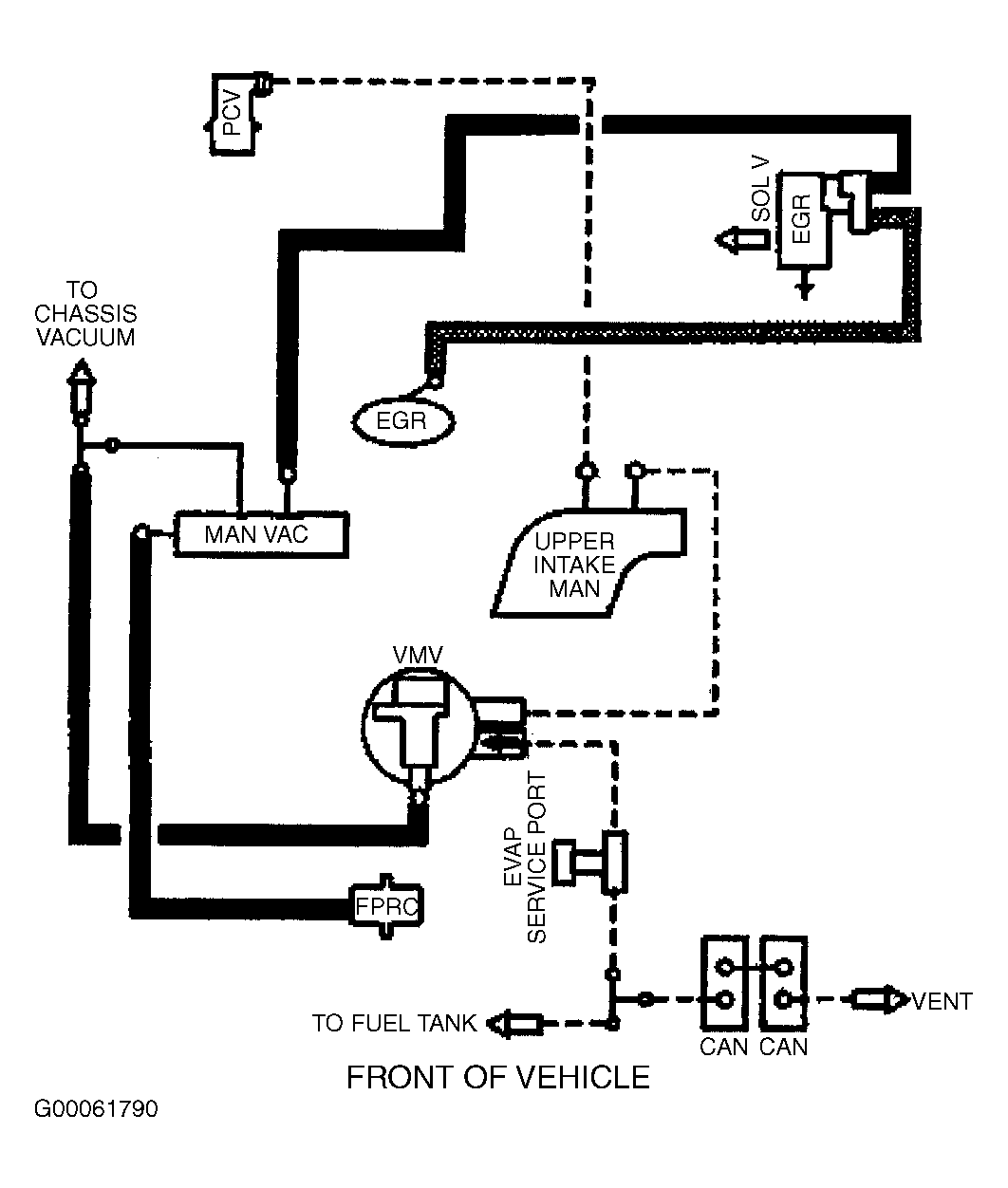

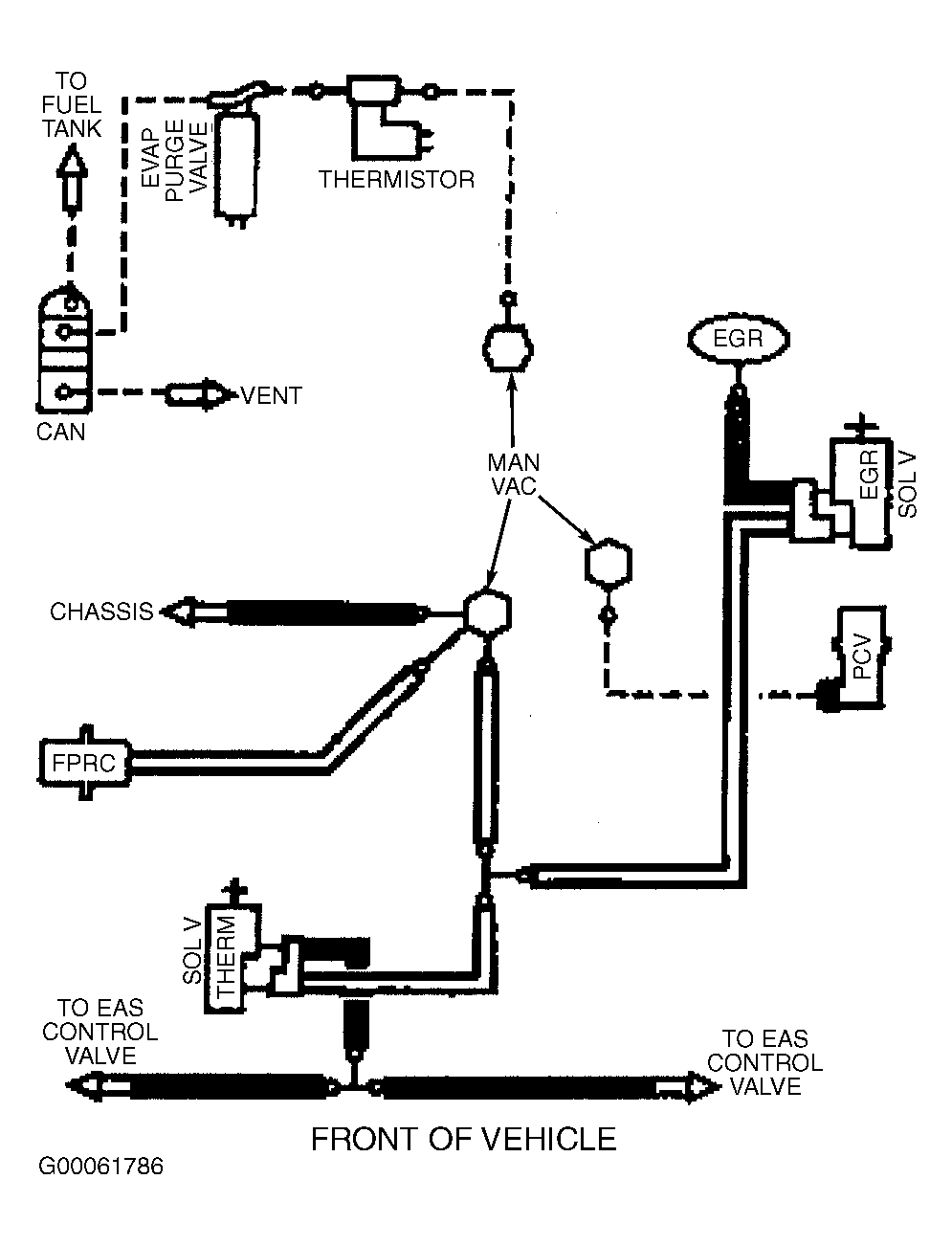

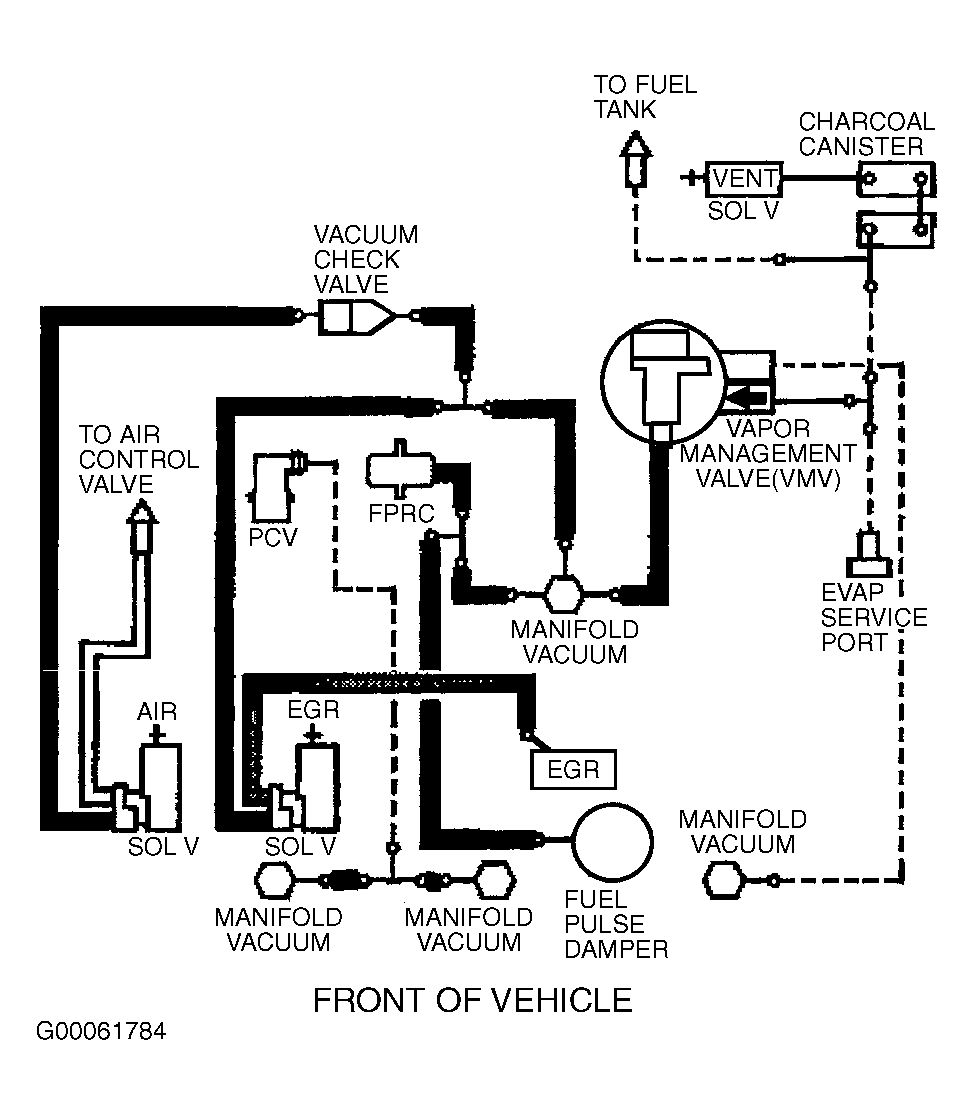

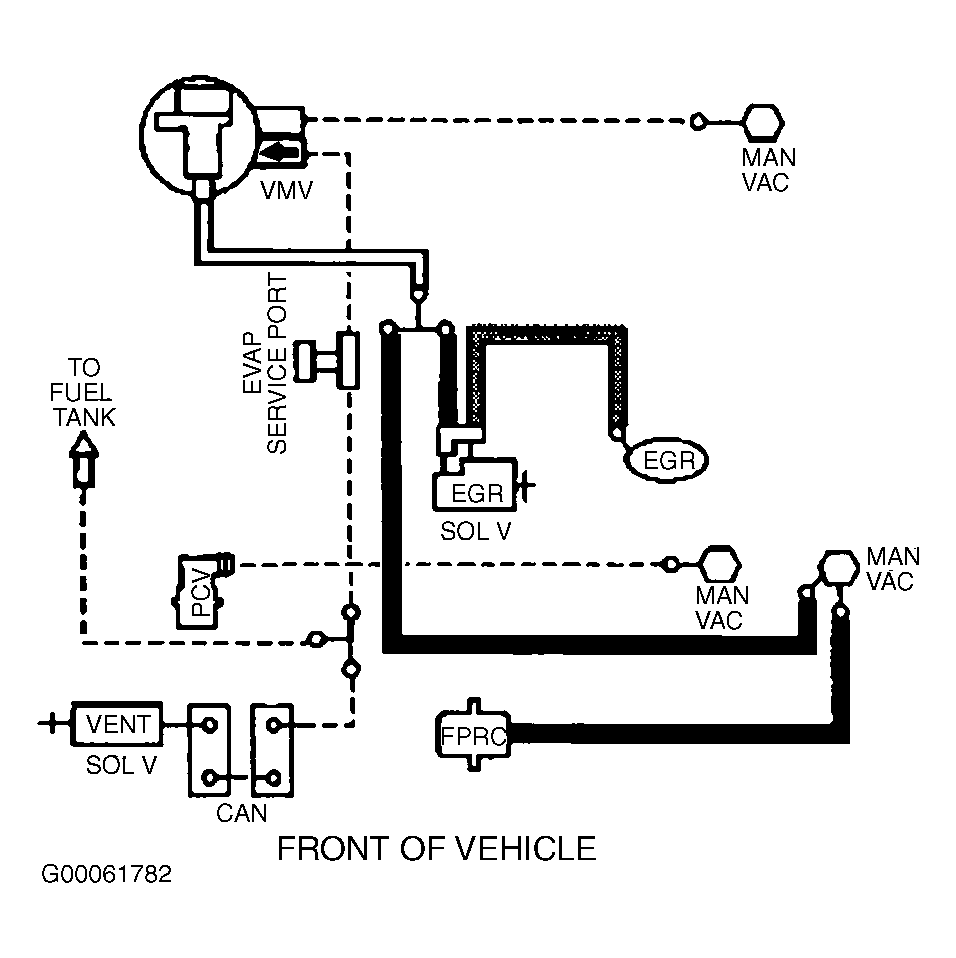

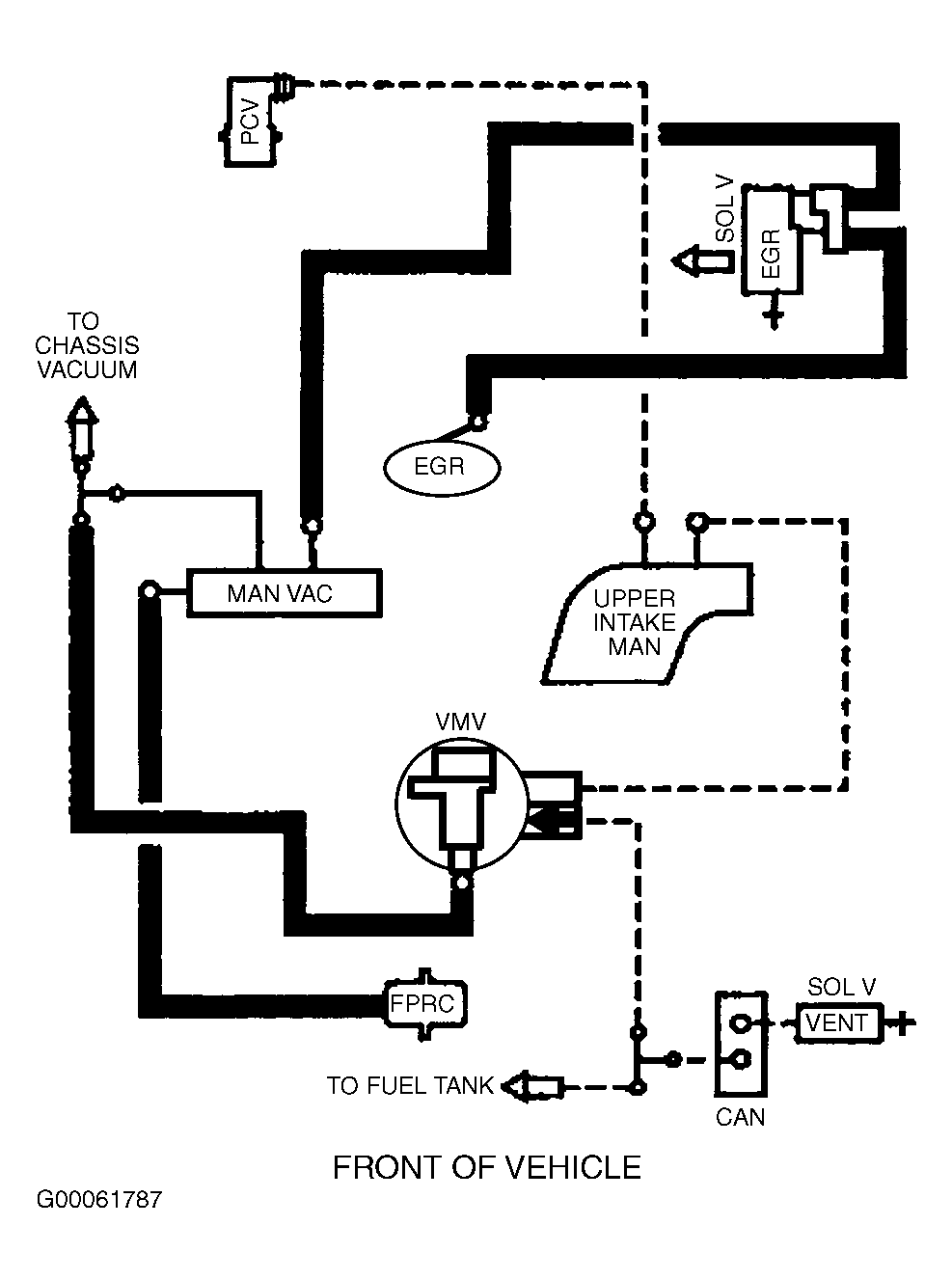

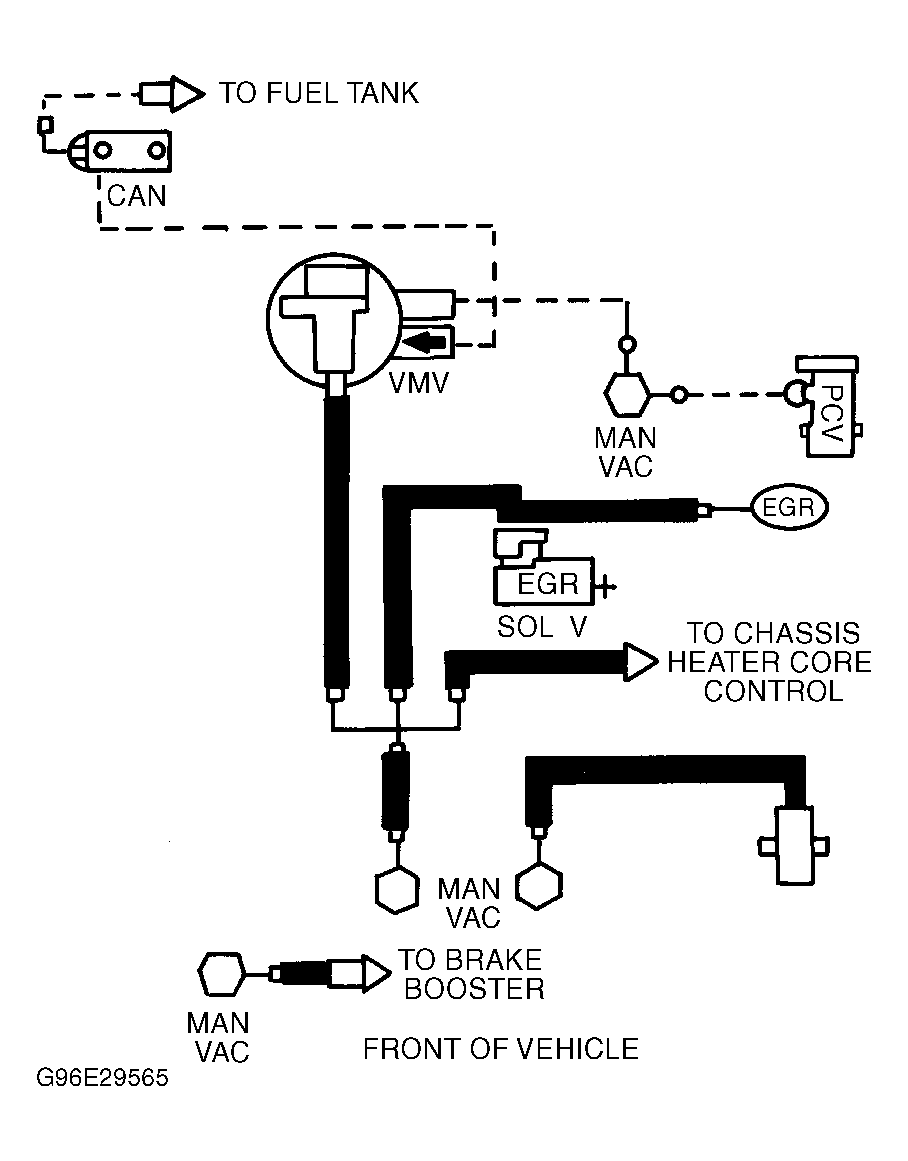

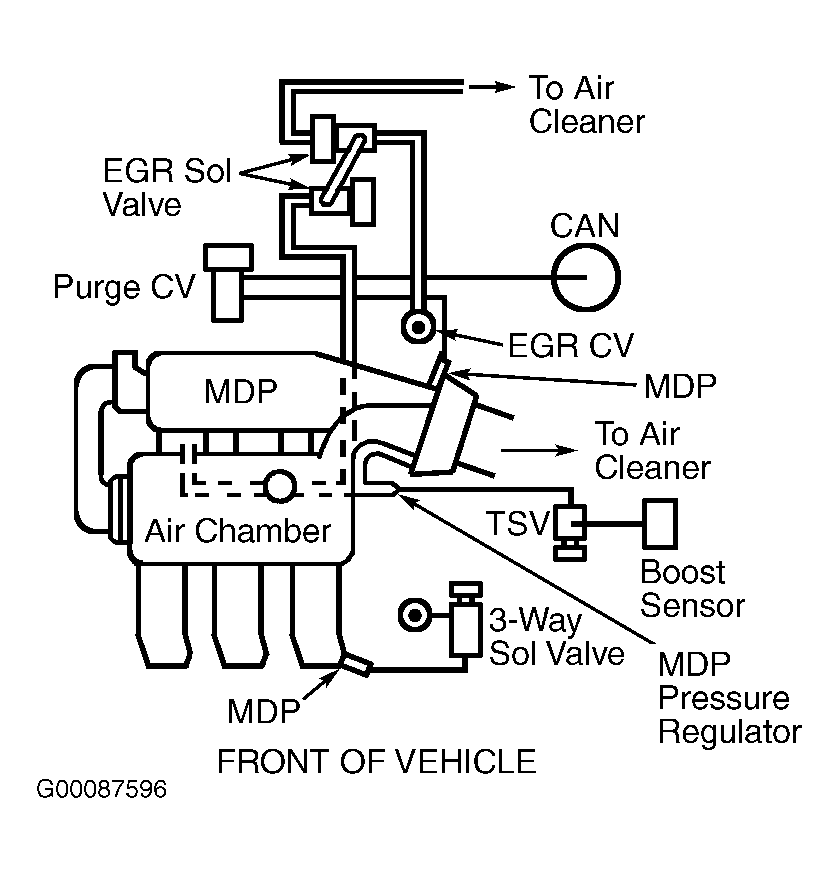

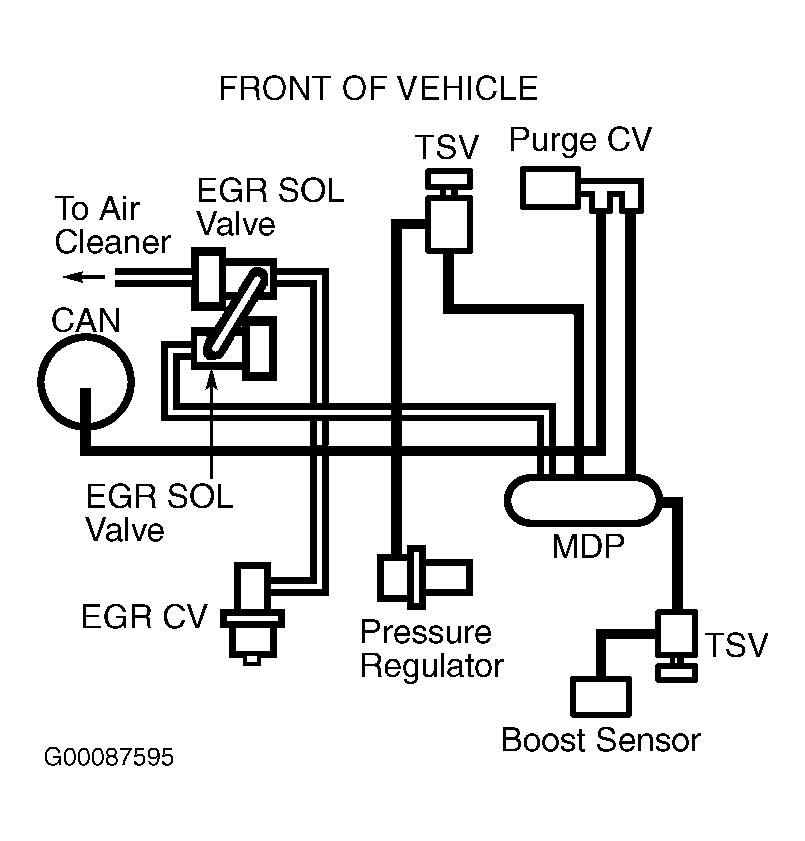

| 7-11C-R05, 7-11C-R10, 7-11S-R05, 7-11S-R10, 7-12C-R05, 7-12C-R10, 7-12S-R05, 7-12S-R10 | Fig 4 | |||||
| Cougar & Thunderbird | ||||||
| 3.8L | ||||||
| 7-16F-R10, 7-16T-R10 | Fig 5 | |||||
| 4.6L | ||||||
| 7-18B-R11, 7-18P-R10, 7-18P-R11 | Fig 6 | |||||
| Crown Victoria & Grand Marquis | ||||||
| 4.6L - Except Natural Gas | ||||||
| 7-18F-R05, 7-18F-R06, 7-18F-R11, 7-18H-R05, 7-18H-R06, (1) 7-18I-R05, (1) 7-18I-R06, (1) 7-18I-R12, 7-18M-R05, 7-18M-R06, 7-18M-R11, 7-18N-R05, 7-18N-R06, 7-18N-R11 | Fig 7 | |||||
| 4.6L Natural Gas | ||||||
| 6-18L-R06 | Fig 8 | |||||
| Escort & Tracer | ||||||
| 2.0L | ||||||
| 7-07C-R10, 7-07T-R10, 7-08B-R10, 7-08C-R10, 7-08P-R10, 7-08S-R10, 7-08T-R10, 7-08W-R10 | Fig 9 | |||||
| Mark VIII | ||||||
| 4.6L | ||||||
| 7-38K-R07, 7-38K-R10, 7-38L-R07, 7-38L-R10 | Fig 10 | |||||
| Mustang | ||||||
| 3.8L | ||||||
| 7-15E-R05, 7-15P-R05, 7-16E-R05, 7-16P-R05 | Fig 11 | |||||
| 4.6L - Except Cobra | ||||||
| 6-19A-R11, 6-19C-R11, 6-19P-R11, 6-19T-R11, 6-20A-R11, 6-20C-R11, 6-20P-R11, 6-20T-R11 | Fig 12 | |||||
| 4.6L Cobra | ||||||
| 6-37M-R10, 6-37N-R10 | Fig 13 | |||||
| Probe | ||||||
| 2.0L | ||||||
| Information Not Available | Fig 14 | |||||
| 2.5L | ||||||
| Information Not Available | Fig 15 | |||||
| Sable & Taurus | ||||||
| 3.0L OHV | ||||||
| 7-10A-R05, 7-10B-R11, 7-10A-R10, 7-10A-R11, 7-10B-R05, 7-10B-R10 | Fig 16 | |||||
| 3.0L DOHC | ||||||
| Except Low Emission Vehicle (LEV) | ||||||
| 7-14A-R06, 7-14A-R10, 7-14S-R06, 7-14S-R10 | Fig 17 | |||||
| Low Emission Vehicle (LEV) | ||||||
| 7-10R-R10, 7-10S-R05 | Fig 18 | |||||
| Taurus | ||||||
| 3.0L Flex-Fuel | ||||||
| 7-10C-R06, 7-10G-R06 | Fig 19 | |||||
| 3.4L SHO | ||||||
| 7-10D-R05, 7-10D-R10, 7-10M-R05, 7-10M-R10 | Fig 20 | |||||
| Town Car | ||||||
| 4.6L | ||||||
| 7-18E-R06, 7-18E-R10, 7-18H-R11, 7-18J-R06, 7-18J-R10, 7-18Q-R06, 7-18Q-R10, 7-18S-R06, 7-18S-R10 | Fig 7 | |||||
|
||||||

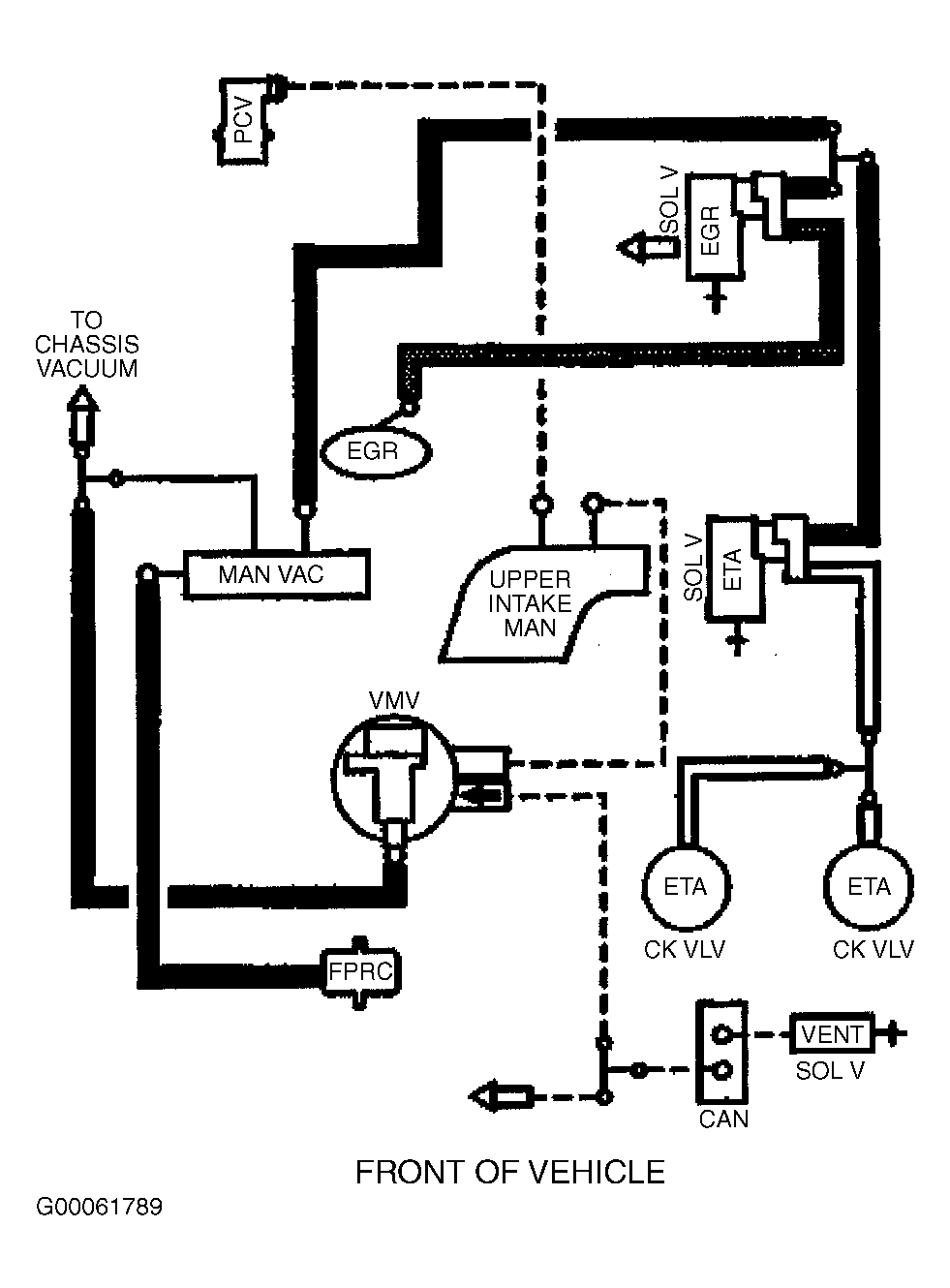

Fig 7: Vacuum Diagram (Crown Victoria & Grand Marquis - 4.6L - Except Natural Gas & Town Car - 4.6L)
