Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

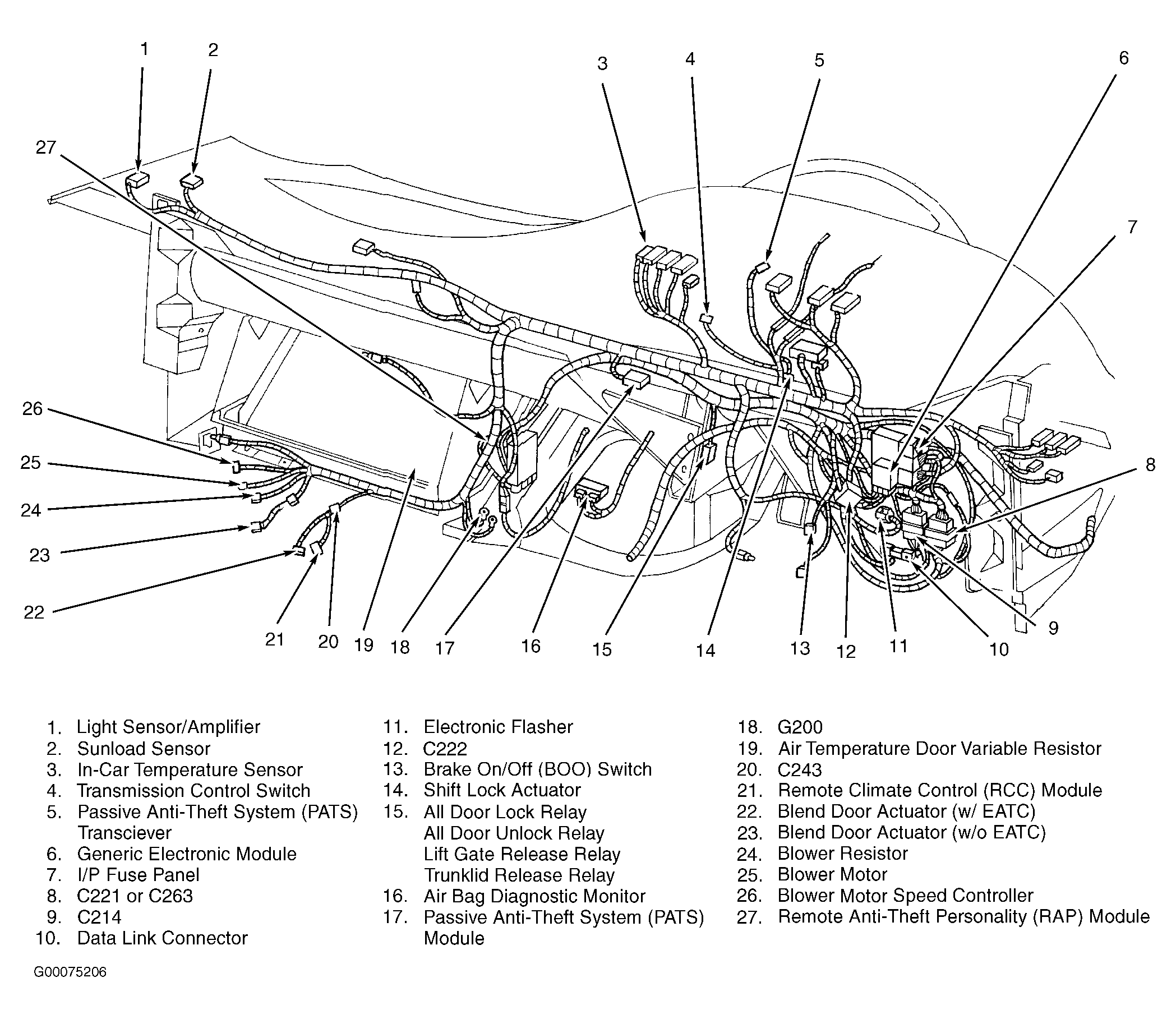

Fig 1: Behind Dash

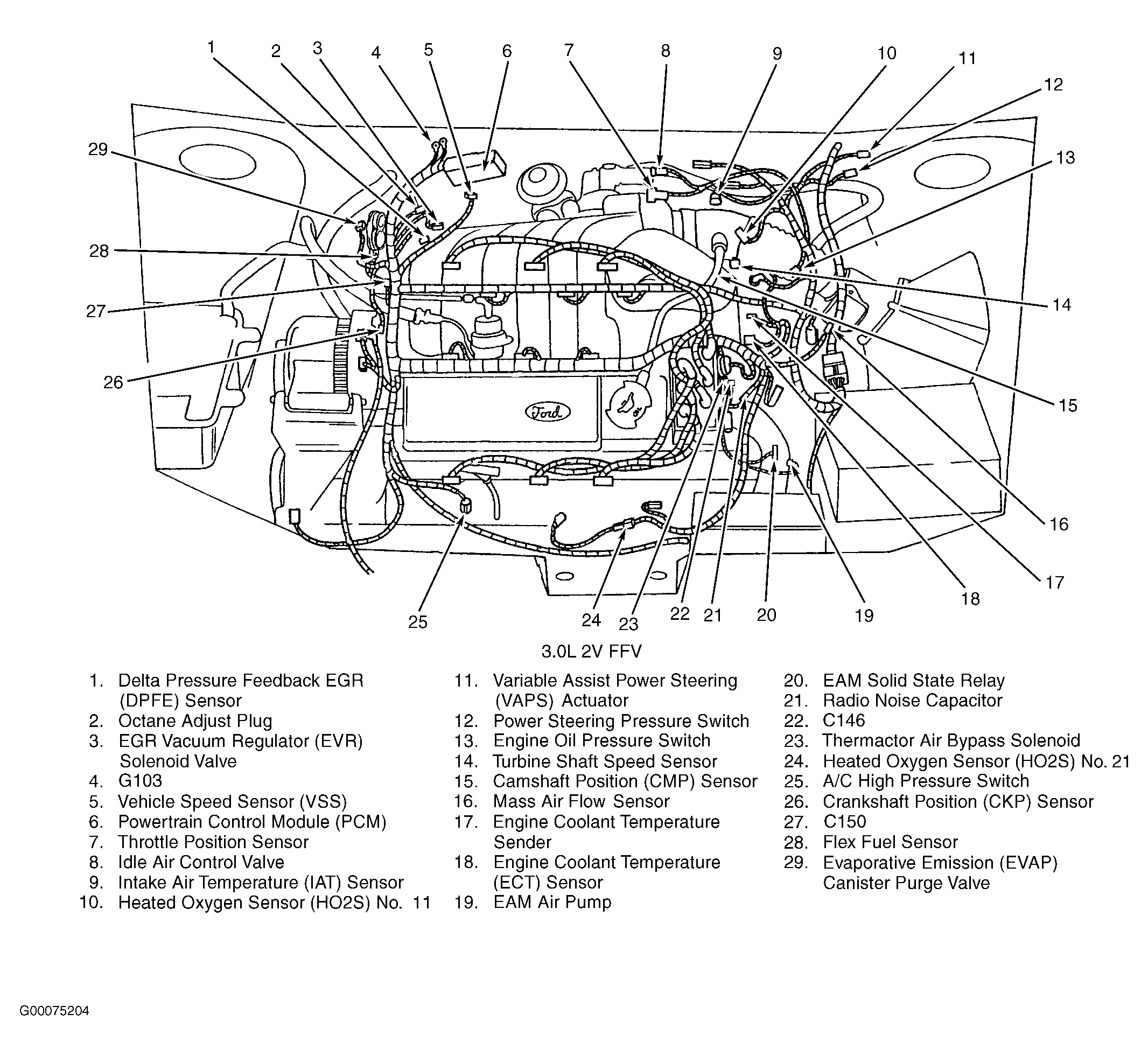

Fig 2: Engine Compartment (3.0L 2V FFV)

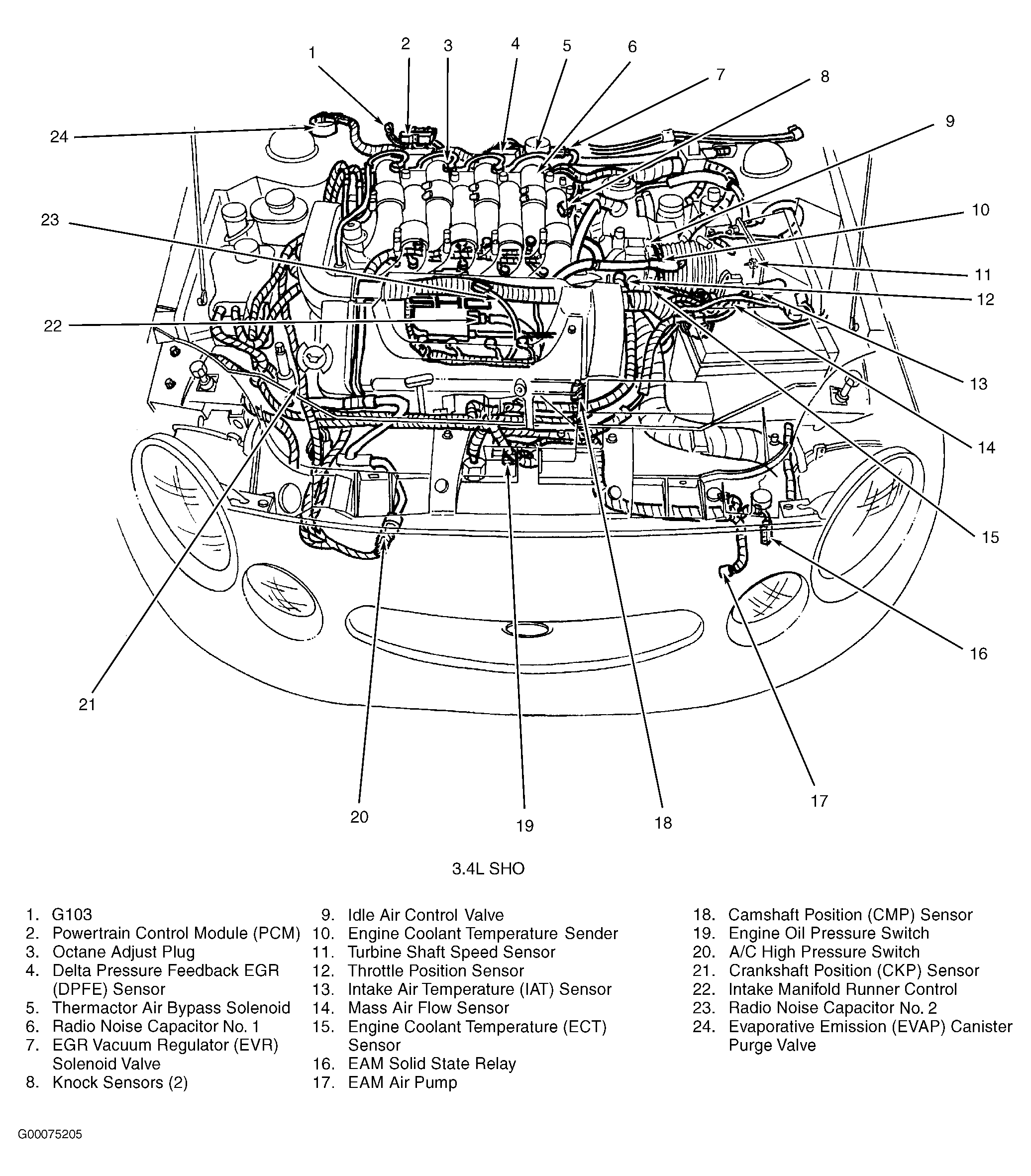

Fig 3: Engine Compartment (3.4L SHO)

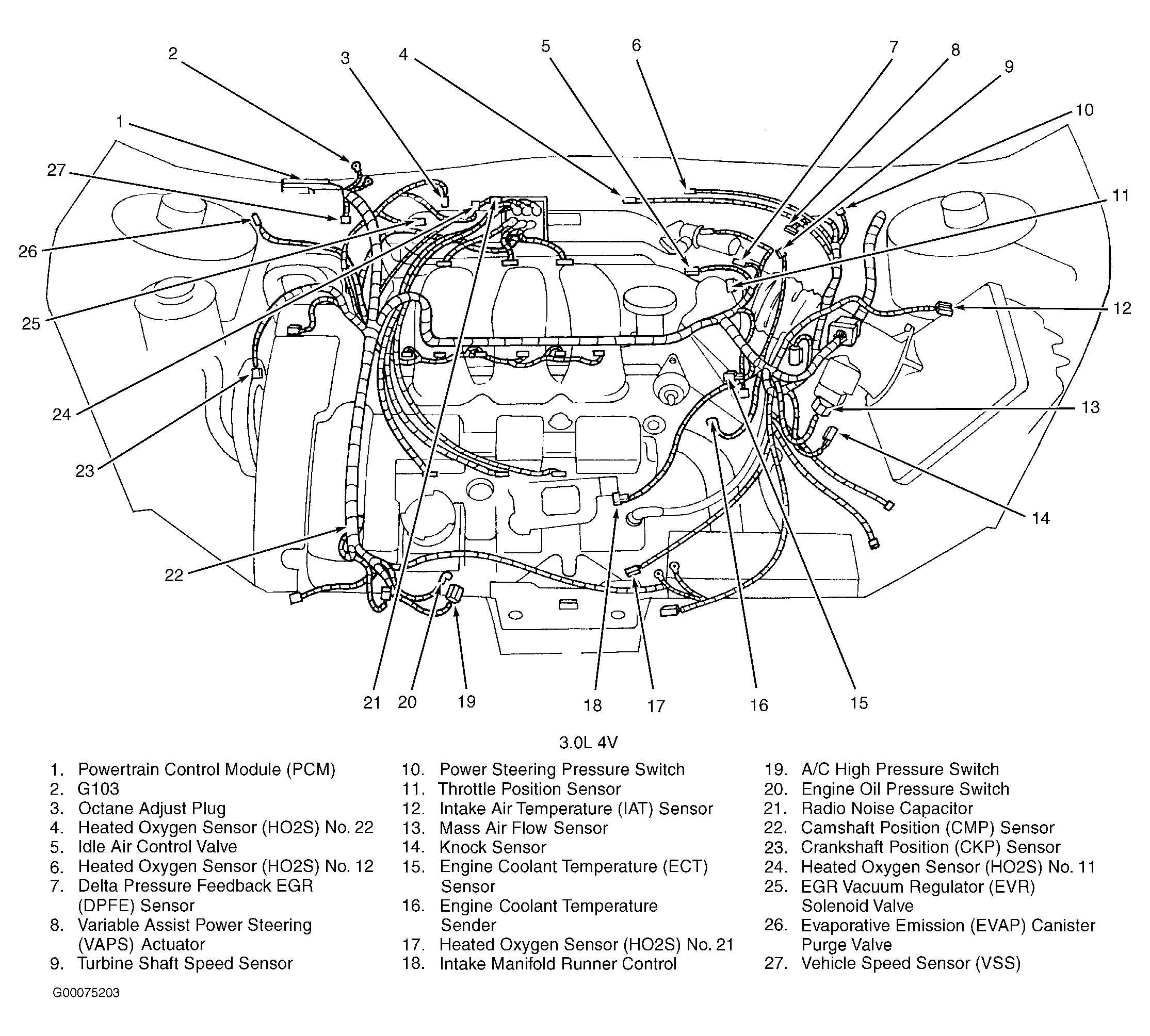

Fig 4: Engine Compartment (3.0L 4V)

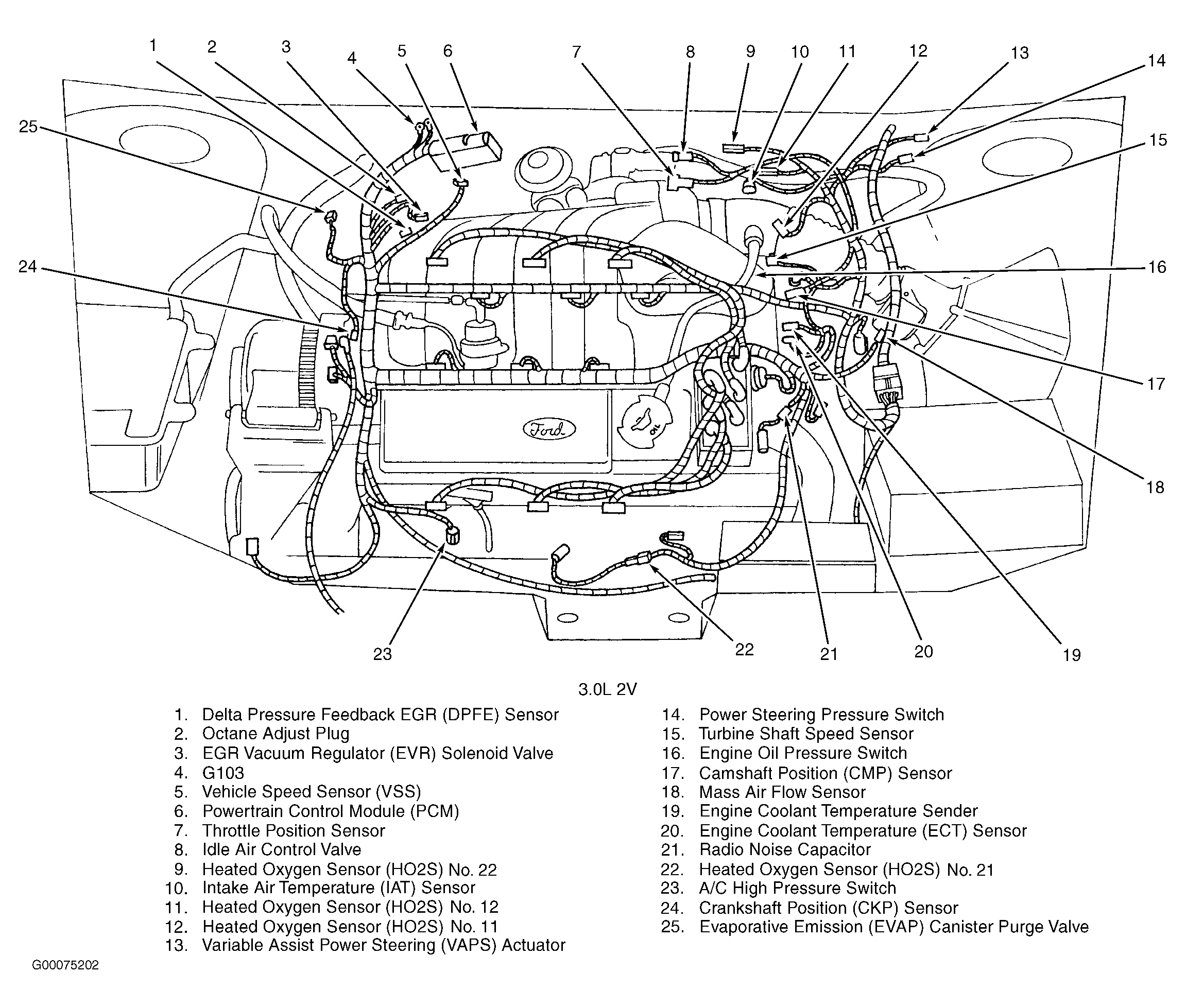

Fig 5: Engine Compartment (3.0L 2V)
