Single Switch

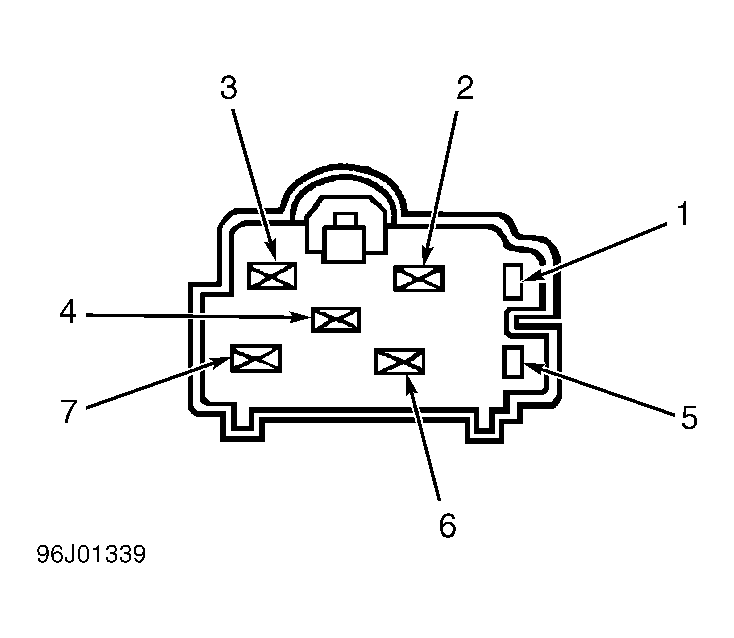

Remove single switch from vehicle. Measure resistance between specified terminals while operating switch. See SINGLE SWITCH TESTING table. See Fig 1 . Replace switch if resistance between specified terminals is greater than 5 ohms. DO NOT check resistance between terminals not specified.
SINGLE SWITCH TESTING
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 2 & 3; 6 & 7 |
| Up | 2 & 3; 4 & 6 |
| Down | 3 & 4; 6 & 7 |
