Engine Mount - LH: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE MOUNT SPECIAL TOOL CHARTS - LH

	Three-Bar Engine Support Kit 303-F072
	Lifting Brackets, Engine 303-050 (T70P-6000)

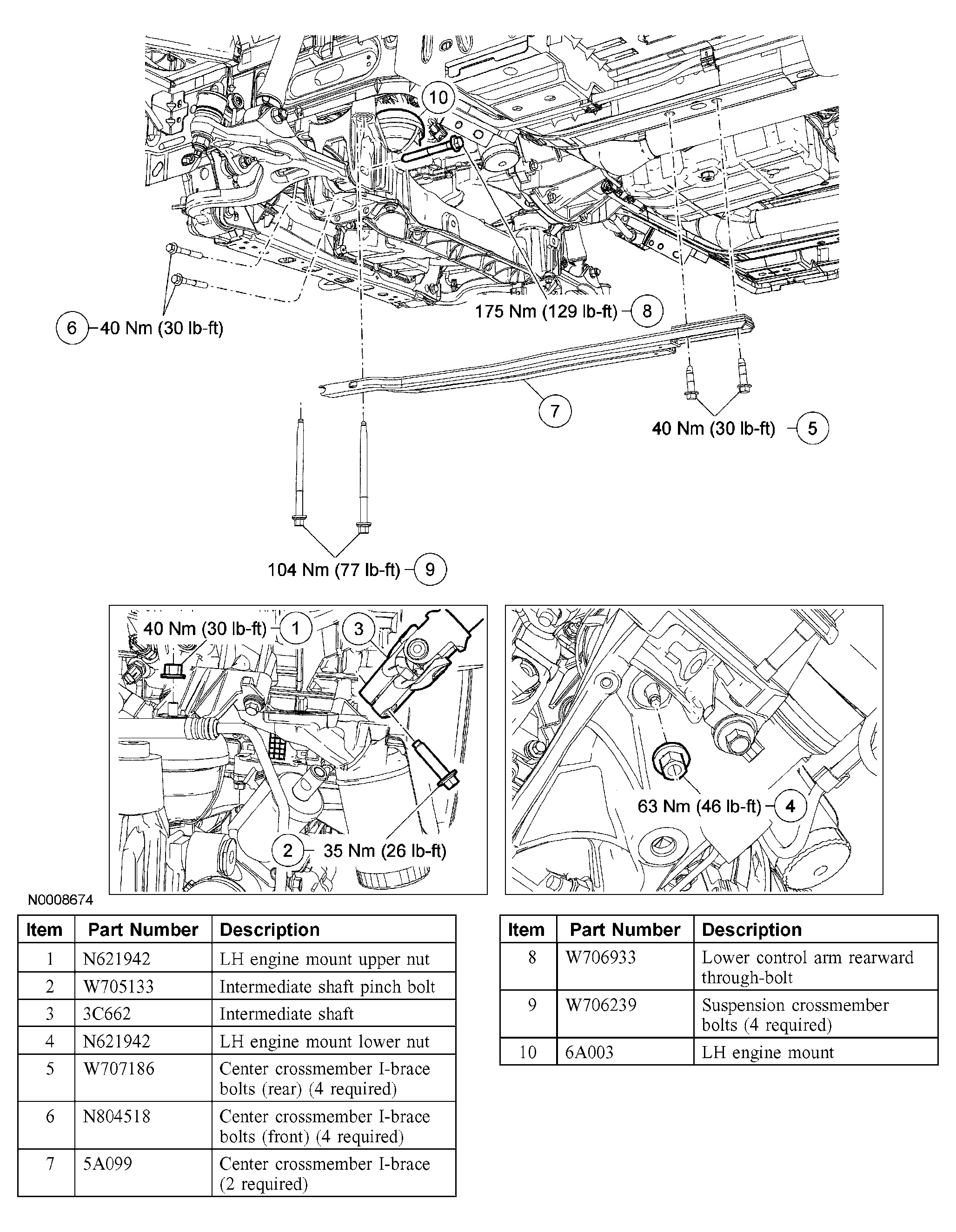

Fig 1: Identifying Components Of Engine Mount - LH

Courtesy of FORD MOTOR CO.
