Master Window Control Switch
NOTE:
In wiring diagram, master window control switch harness connectors are labeled as C501 and C509. In master window control switch test, terminal numbers have been changed to for clarity. Identification has been changed for test references only.

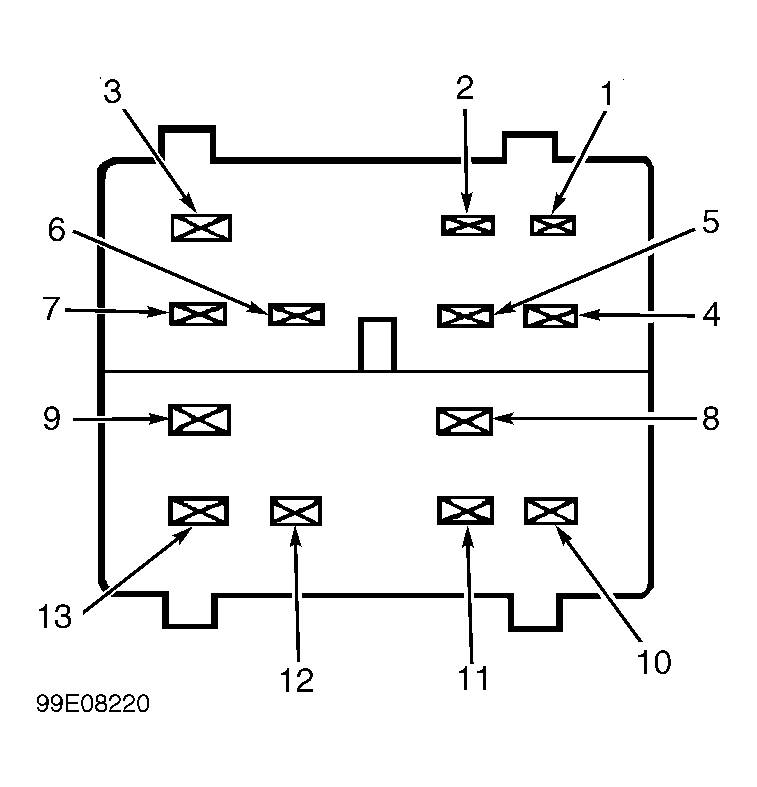

Remove master window control switch from vehicle. Check continuity between specified terminals while operating switch to specified position. See MASTER WINDOW CONTROL SWITCH TESTING table. See Fig 1 . Replace master window control switch if continuity between specified terminals is not as specified.
MASTER WINDOW CONTROL SWITCH TESTING
| Switch Position | Terminals No. | Continuity | |
|---|---|---|---|
| Any | 8 & 9 | No | |
| Neutral | 4, 5, 6, 7, 8, 10, 11, 12 & 13 | Yes | |
| Lock-Out Circuit | |||
| Locked | 3 & 9 | No | |
| Unlocked | 3 & 9 | Yes | |
| Driver's Side | |||
| Up | 8 & 11; 9 & 10 | Yes | |
| Down | 8 & 10; 9 & 11 | Yes | |
| Passenger's Side | |||
| Up | 8 & 12; 9 & 13 | Yes | |
| Down | 8 & 13; 9 & 12 | Yes | |
| Left Rear | |||
| Up | 6 & 9; 7 & 8 | Yes | |
| Down | 6 & 8; 7 & 9 | Yes | |
| Right Rear | |||
| Up | 4 & 9; 5 & 8 | Yes | |
| Down | 4 & 8; 5 & 9 | Yes | |
