Spark Plug Wire Routing (3.8L)

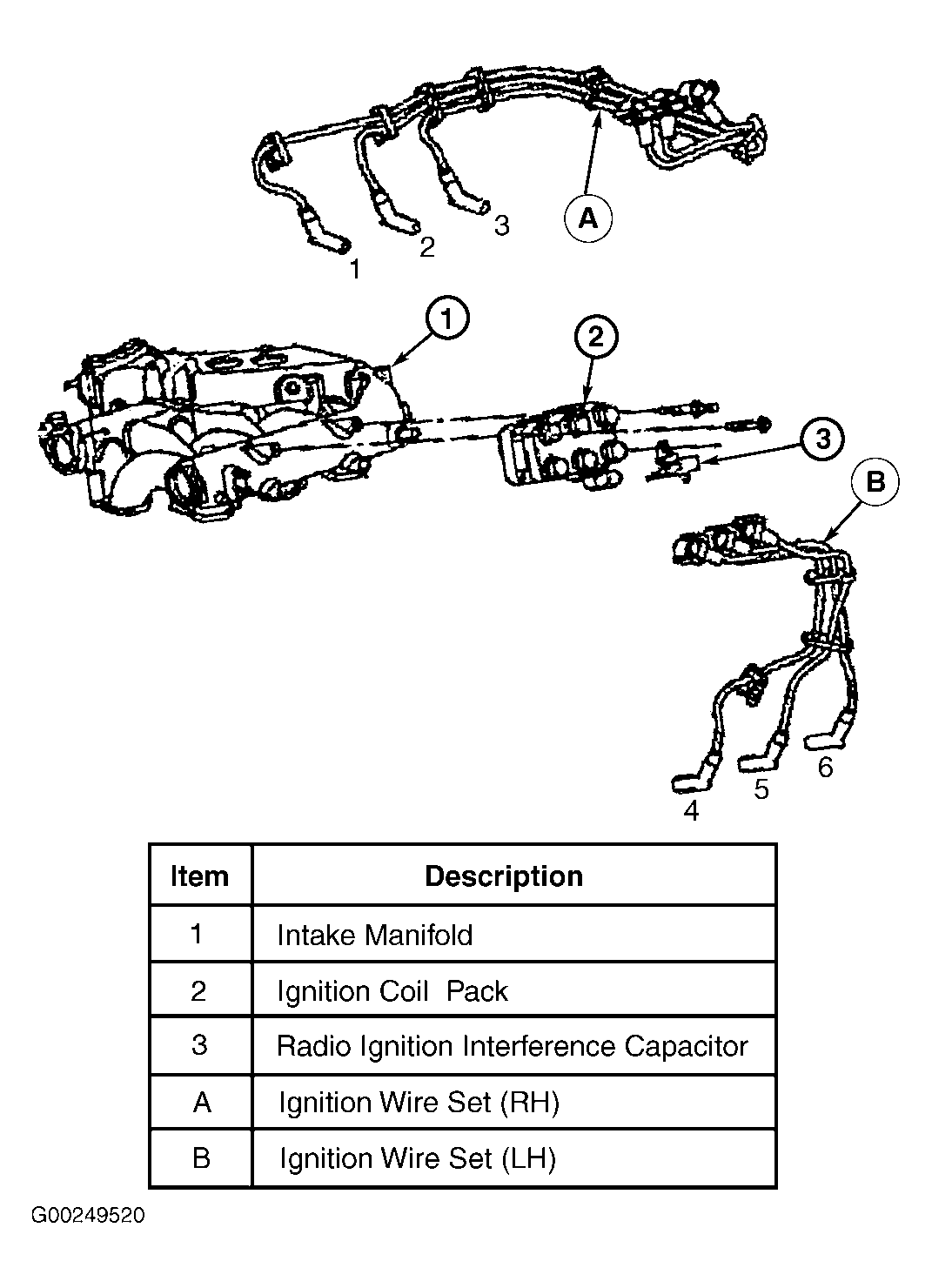

Fig 1: Identifying Spark Plug Wire Routing (3.8L)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
