Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

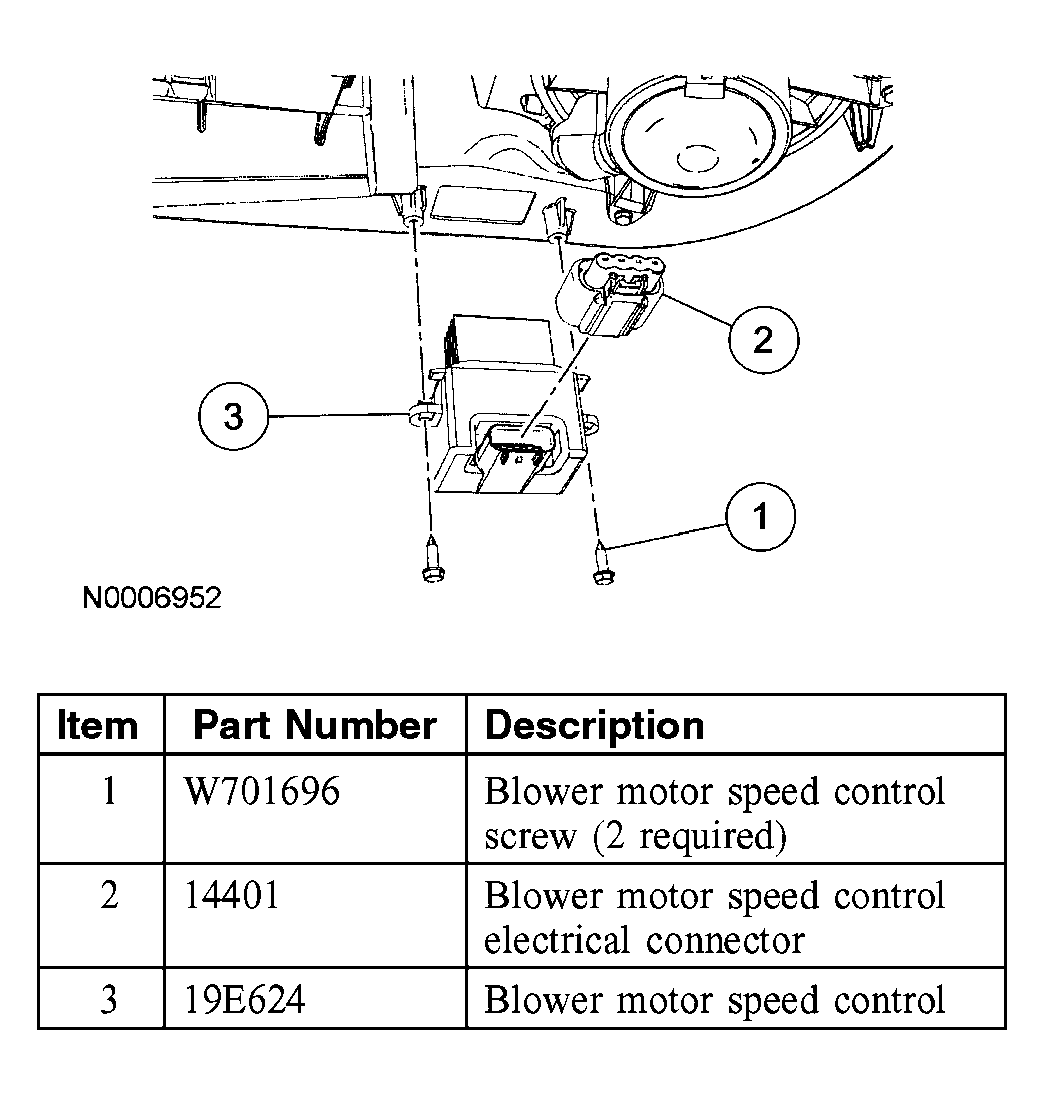

Fig 1: Removing/Installing Blower Motor Speed Control
G03992493Courtesy of FORD MOTOR CO.
  1. Remove the RH lower instrument panel insulator.
  2. Disconnect the blower motor speed control electrical connector.
  3. Remove the 2 blower motor speed control screws.
  4. Remove the blower motor speed control.
  5. To install, reverse the removal procedure.
