Multifunction Switch, Lamp Portion: Schematic

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

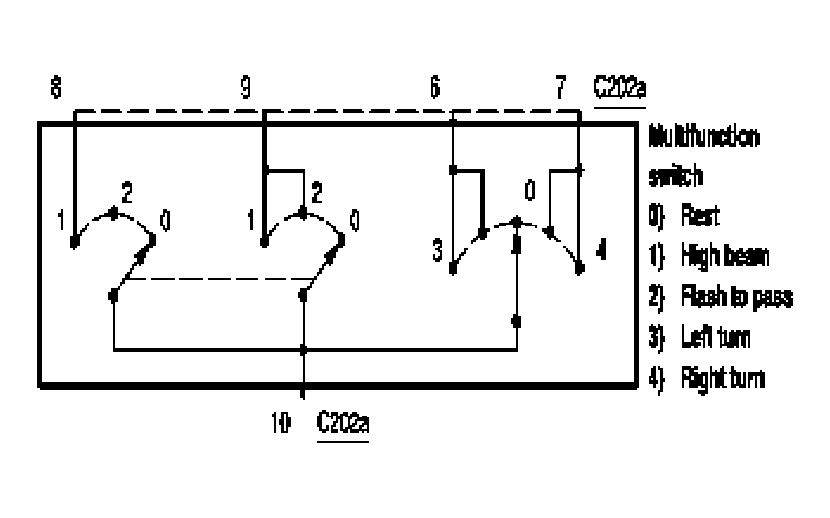

Fig 1: Multifunction Switch, Lamp Portion - Schematic
G03994273Courtesy of FORD MOTOR CO.
