Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

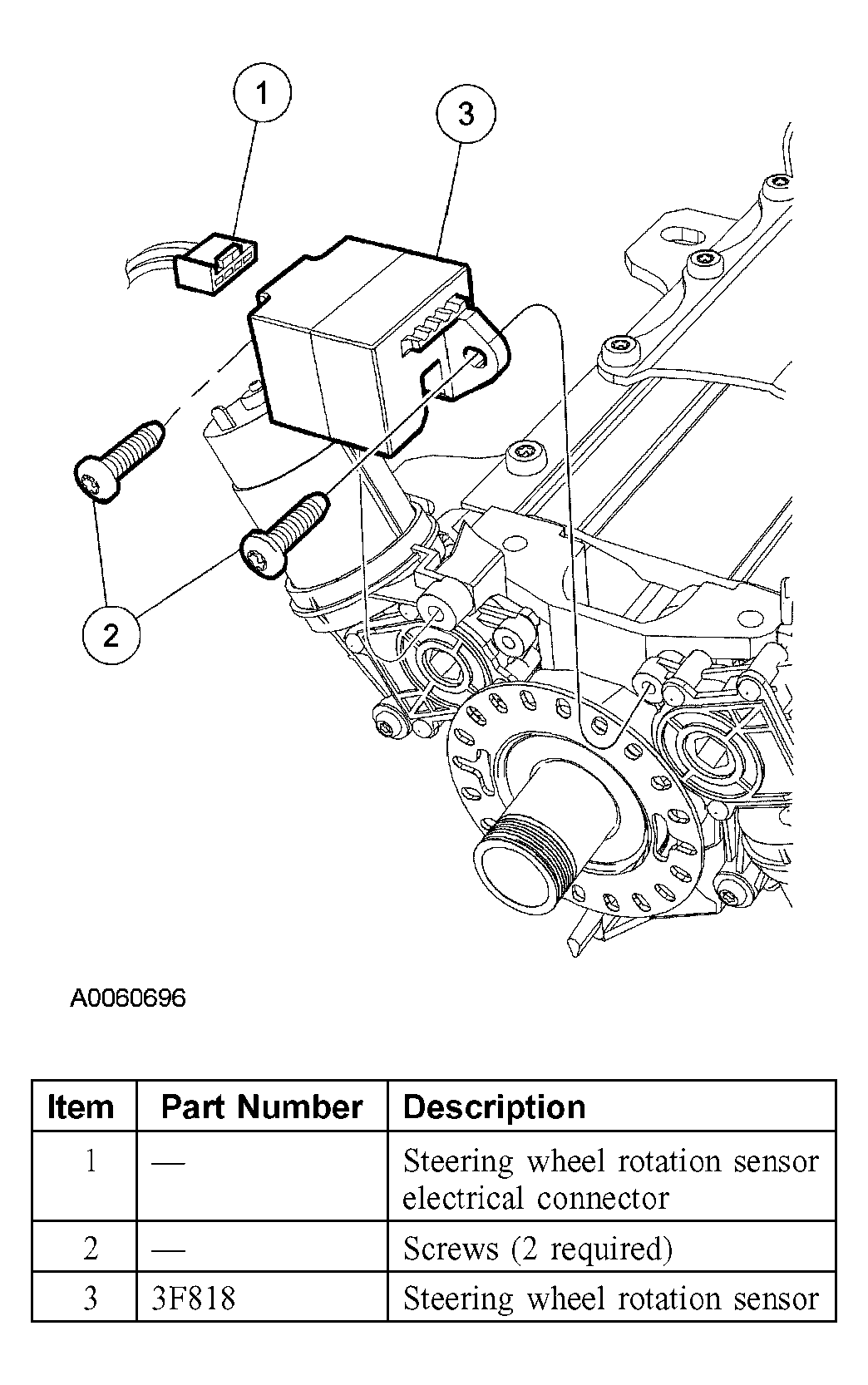

Fig 1: Identifying Steering Wheel Rotation Sensor Components
G03995583Courtesy of FORD MOTOR CO.
  1. Disconnect the steering wheel rotation sensor electrical connector.
  2. Remove the 2 screws and the steering wheel rotation sensor.
  3. To install, reverse the removal procedure.
