Valve Cover - LH: Notes

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

VALVE COVER MATERIAL SPECIFICATION - LH

Item	Specification
Silicone Gasket Remover ZC-30	-
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent	WSS-M2C930-A

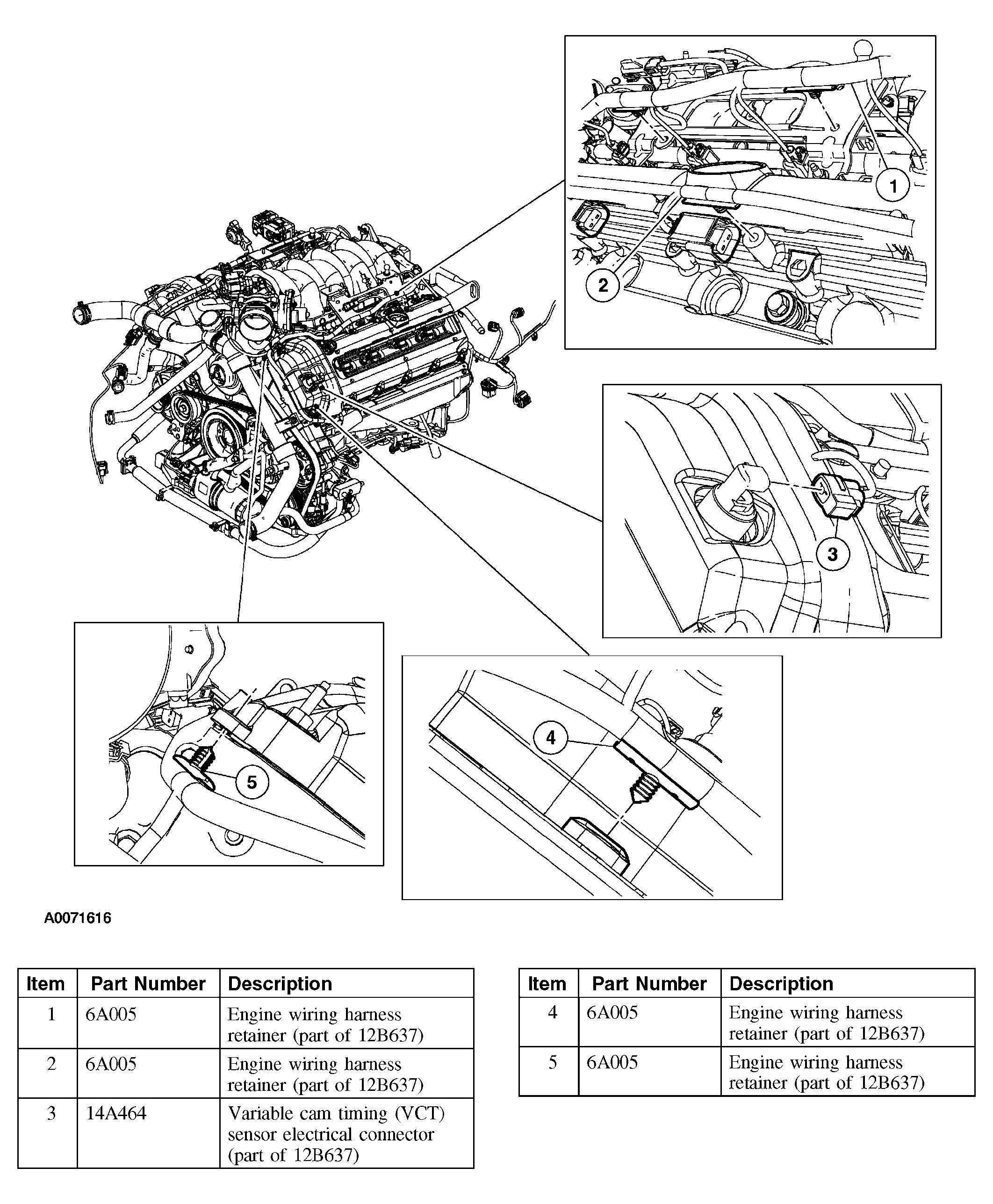

Fig 1: Identifying Components Of Valve Cover LH (1 Of 4)

Courtesy of FORD MOTOR CO.

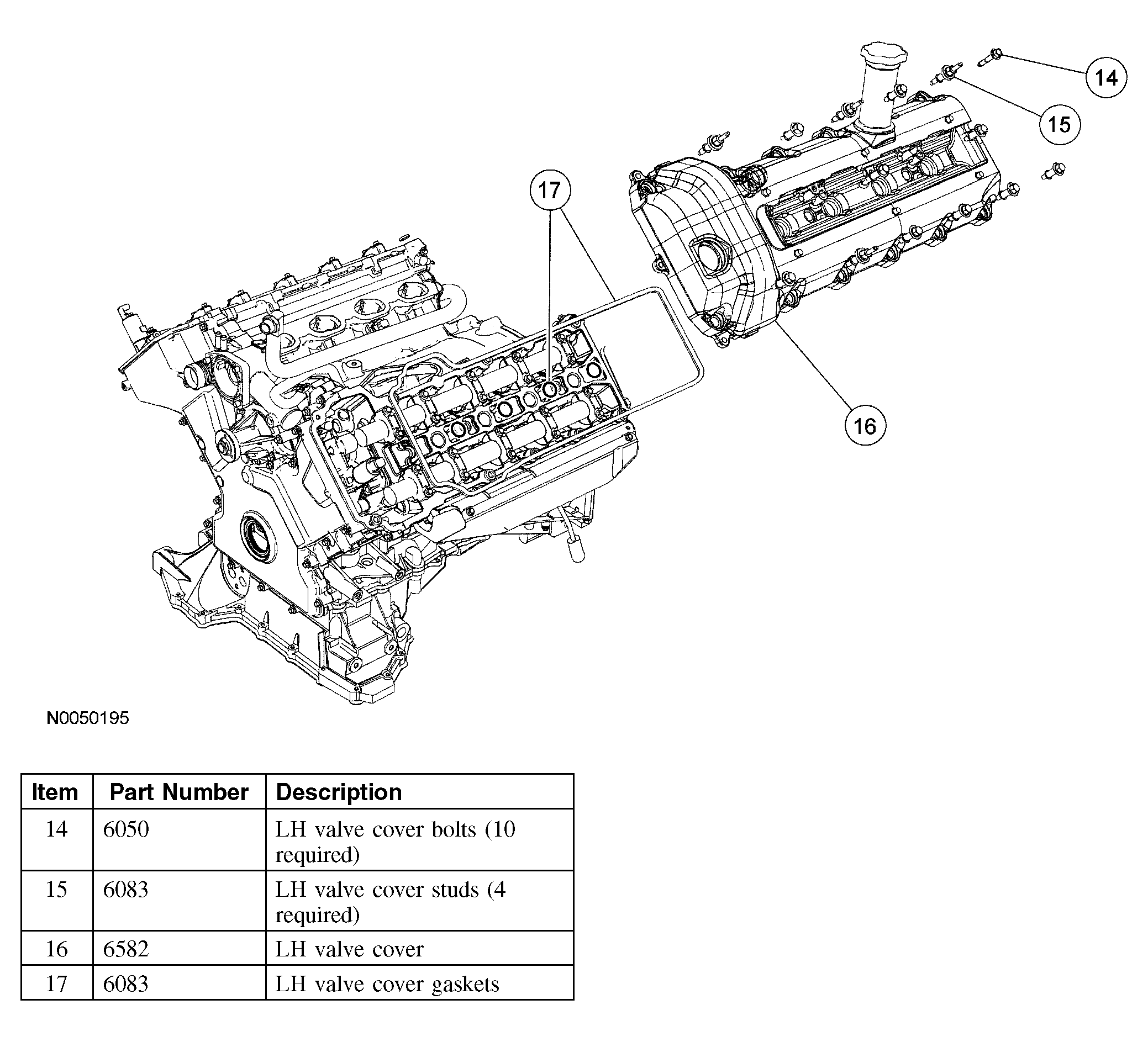

Fig 2: Identifying Components Of Valve Cover LH (2 Of 4)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Components Of Valve Cover LH (3 Of 4)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Components Of Valve Cover LH (4 Of 4)

Courtesy of FORD MOTOR CO.
