Disassembly And Assembly Of Subassemblies: Piston: Assembly
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
- Position the connecting rod in the piston.
- Install the piston pin and the 2 piston pin retainers.
- Install the lower piston oil control segment ring.
- Install the piston oil control spacer.
- Install the upper piston oil control segment ring.
- Install the lower piston compression ring.
- Install the upper piston compression ring.
NOTE:

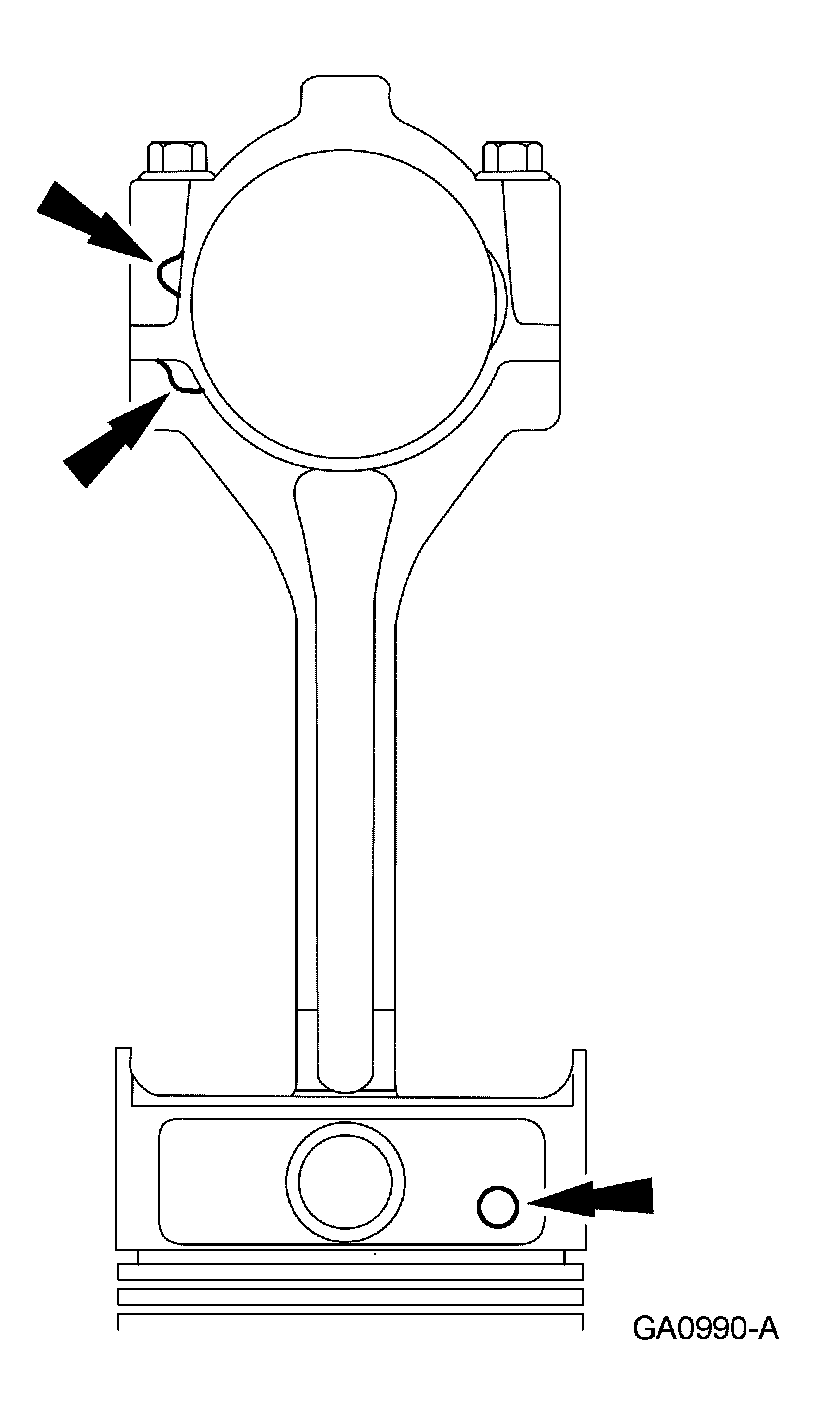

Connecting rod must be installed into piston with identification markings toward front.
NOTE:
Lubricate the piston pin and retainers with clean engine oil.
NOTE:
Lubricate all the piston rings and piston oil control spacer with clean engine oil.
