Engine Front Cover: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft Metal Surface Cleaner ZC-21 WSE-M5B392-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A
Fig 1: Identifying Engine Front Cover Components (1 Of 2)
G04583438Courtesy of FORD MOTOR CO.

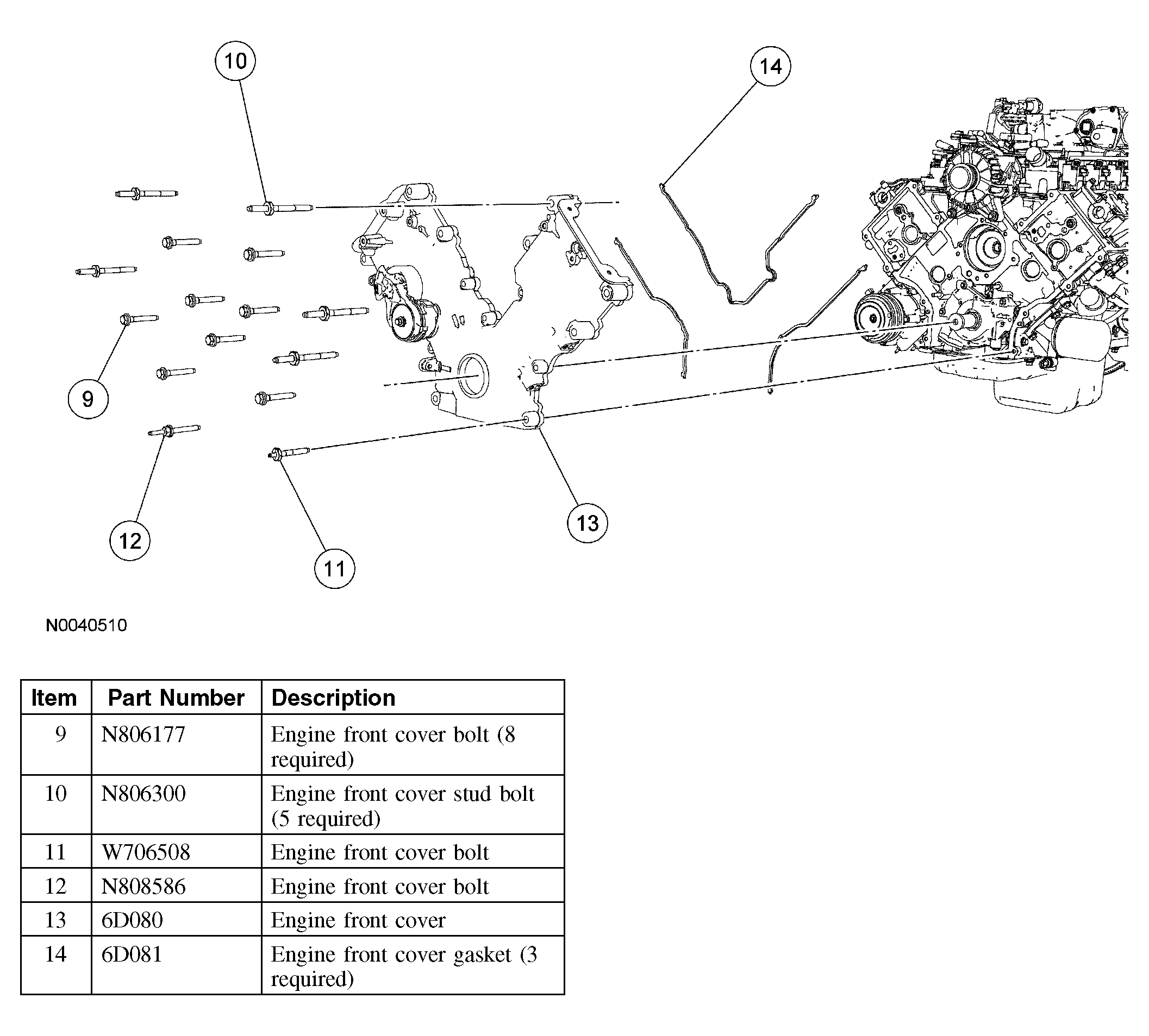

Fig 2: Identifying Engine Front Cover Components (2 Of 2)
G04583439Courtesy of FORD MOTOR CO.
