Engine Mount - LH: Notes

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) DESCRIPTION

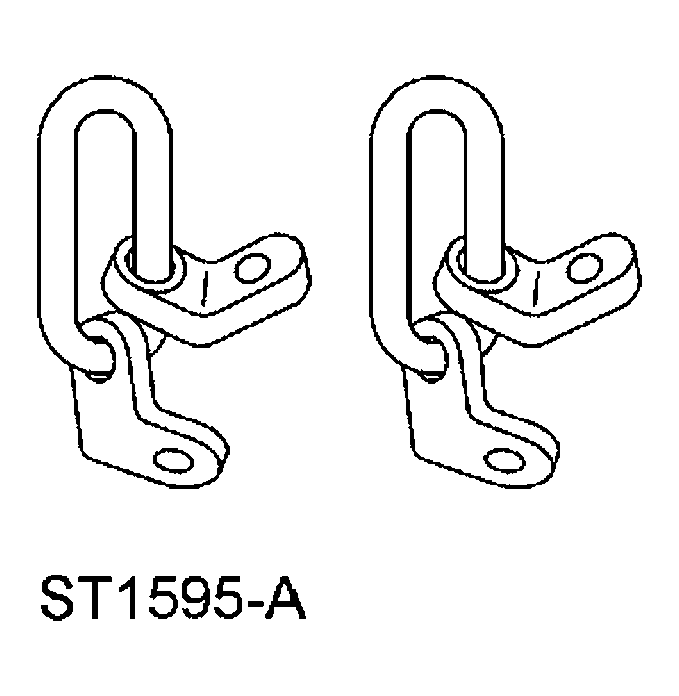

G04583577
Lifting Brackets, Engine
303-050 (T70P-6000)

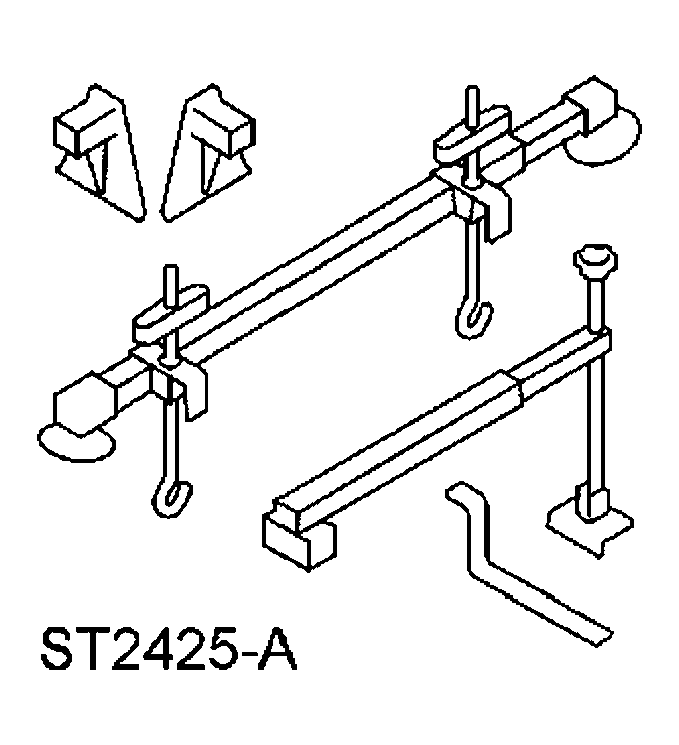

G04583578
3-Bar Engine Support Kit
303-F072
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

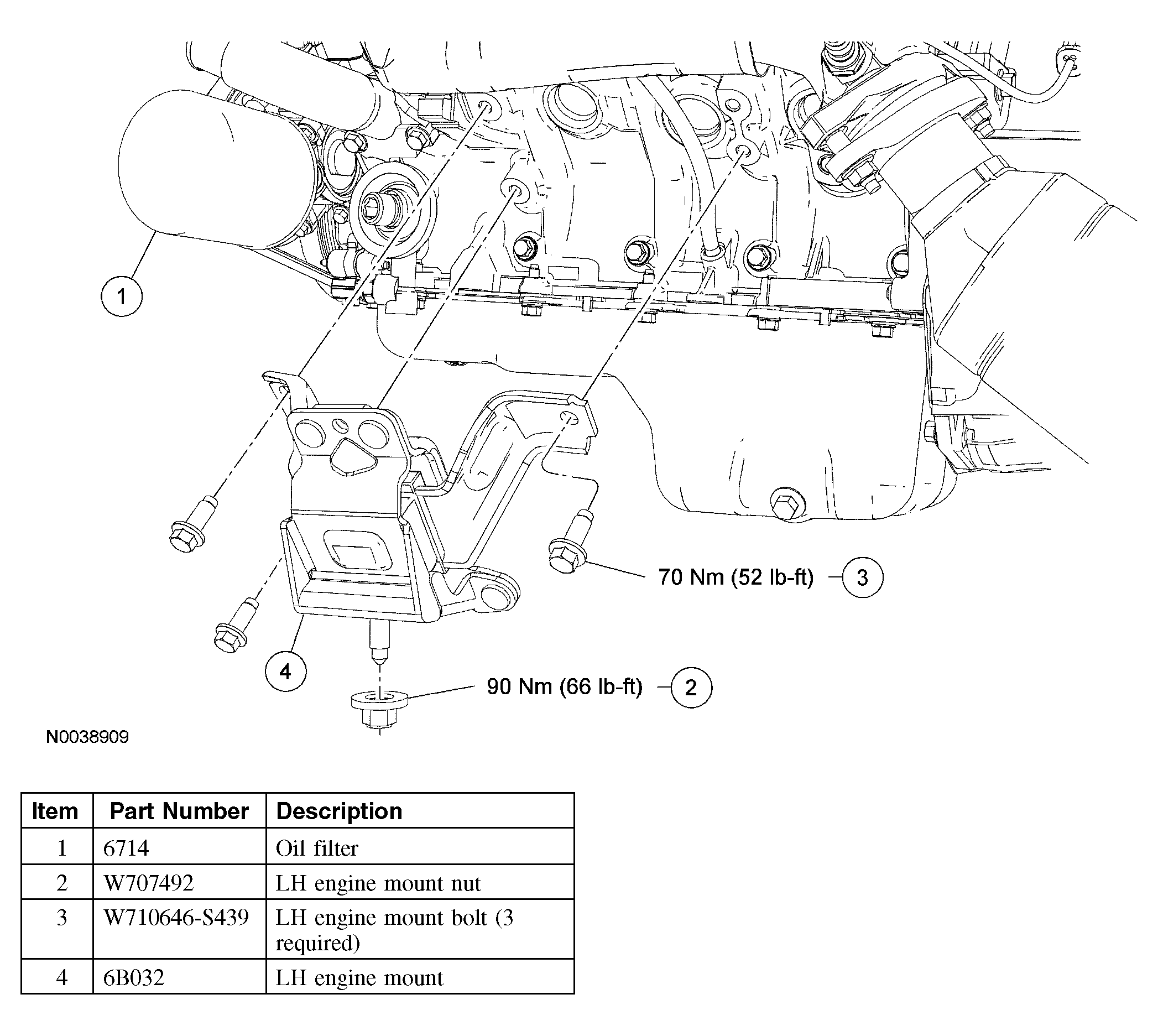

Fig 1: Identifying Engine Mount Components - LH
G04583579Courtesy of FORD MOTOR CO.
