In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Position the flexplate and loosely install the 6 bolts. Tighten the bolts in the sequence shown to 80 Nm (59 lb-ft).

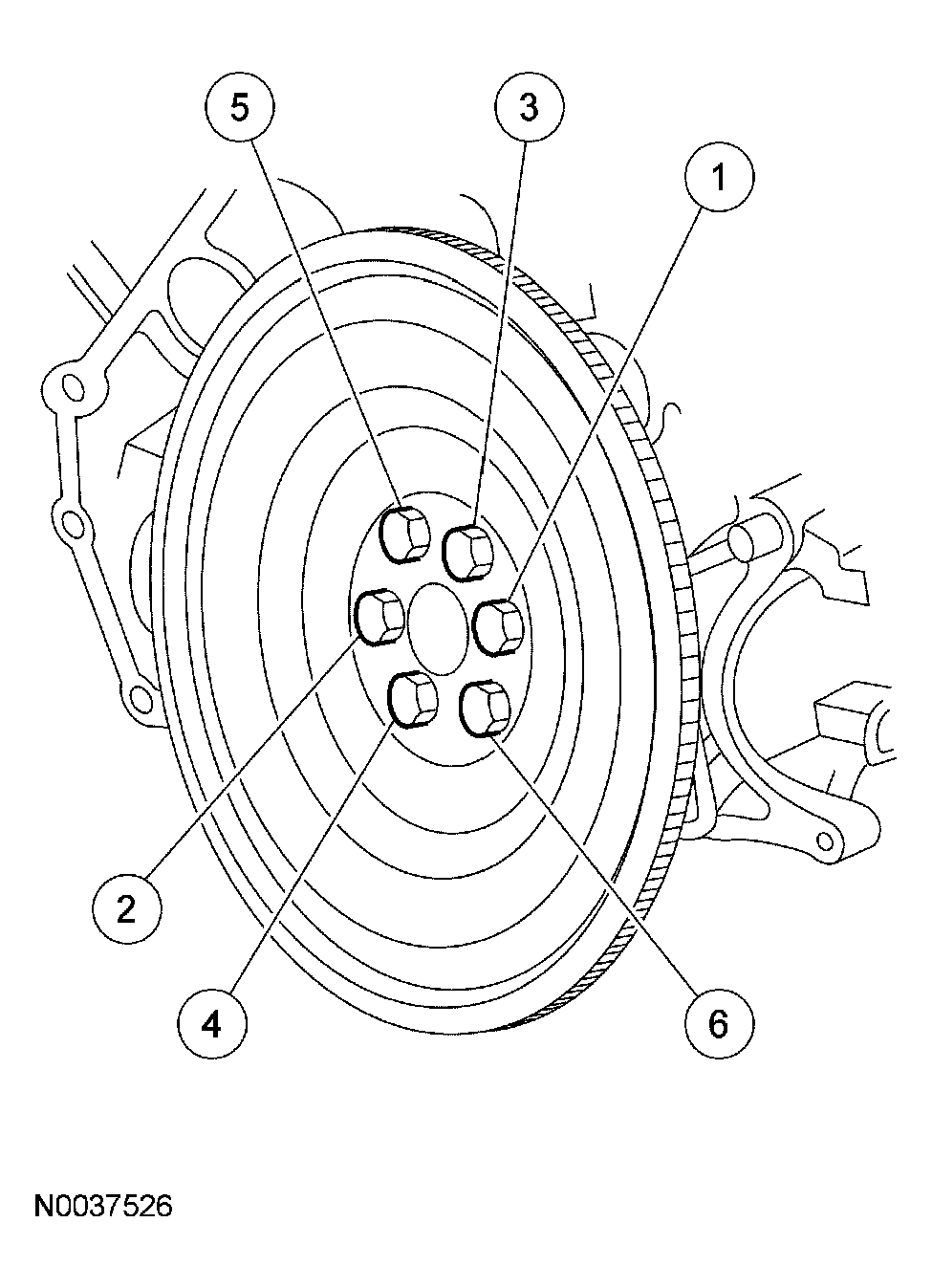

Fig 1: Installing Flexplate Bolts
Courtesy of FORD MOTOR CO.
Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

If equipped with fire suppression system, repower the system.
