Master window adjust switch: Schematic

WARNING: This page is about a different car, the 2006 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

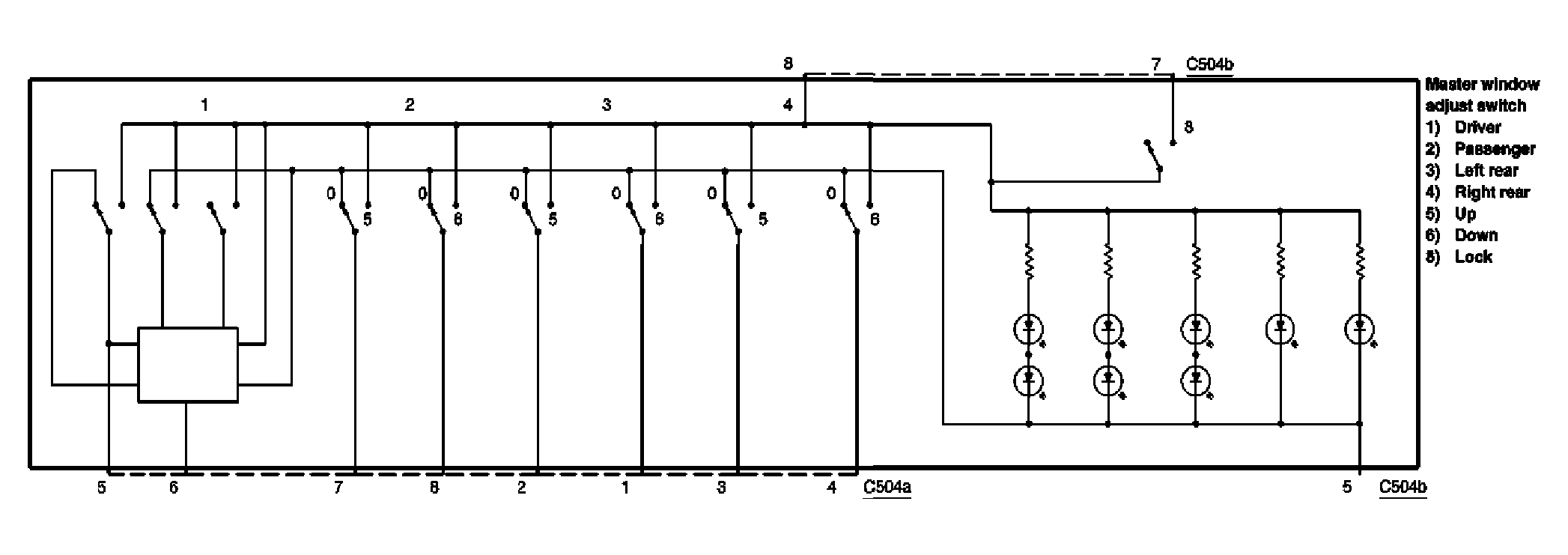

Fig 1: Master Window Adjust Switch - Schematic Diagram
G04598219Courtesy of FORD MOTOR CO.
