Multifunction switch: Schematic

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

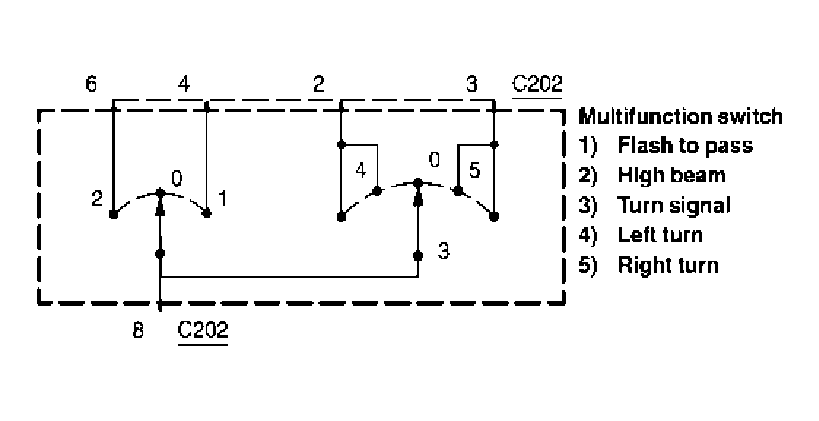

Fig 1: Multifunction Switch - Schematic
G04597707Courtesy of FORD MOTOR CO.
