Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine air cleaner (ACL) (9600) and the outlet tube.
Depress the tab and remove the accelerator control splash shield (9E766).

Fig 1: Removing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.
Remove the accelerator cable (9A758) from the throttle body cam.

Fig 2: Removing Accelerator Cable From Throttle Body Cam
Courtesy of FORD MOTOR CO.
Remove the accelerator cable from the accelerator cable bracket (9723).
1. Compress the retaining tabs and remove the accelerator cable from the accelerator cable bracket.
Fig 3: Removing Accelerator Cable From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
If equipped, remove the speed control actuator cable (9A825).
- Disconnect the speed control actuator cable from the throttle body cam lever.
- Compress the retaining tabs on the speed control actuator cable and remove the speed control actuator cable from the accelerator cable bracket.

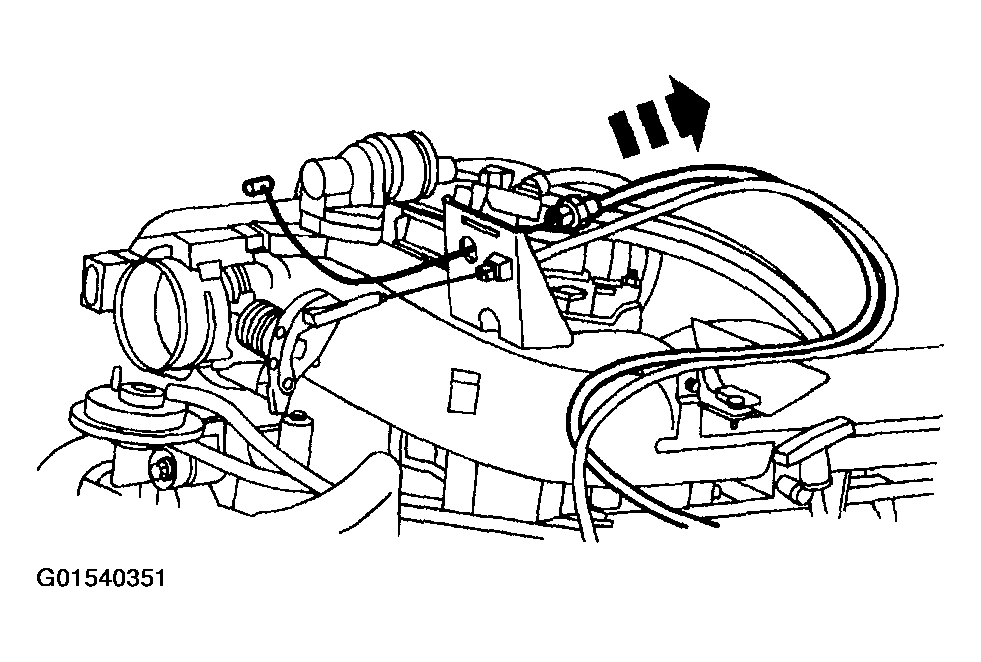

  Fig 4: Removing Speed Control Actuator Cable From Accelerator Cable Bracket
  Courtesy of FORD MOTOR CO.
Remove the accelerator cable bracket.
1. Remove the bracket retaining bolts.
2. Remove the accelerator cable bracket.

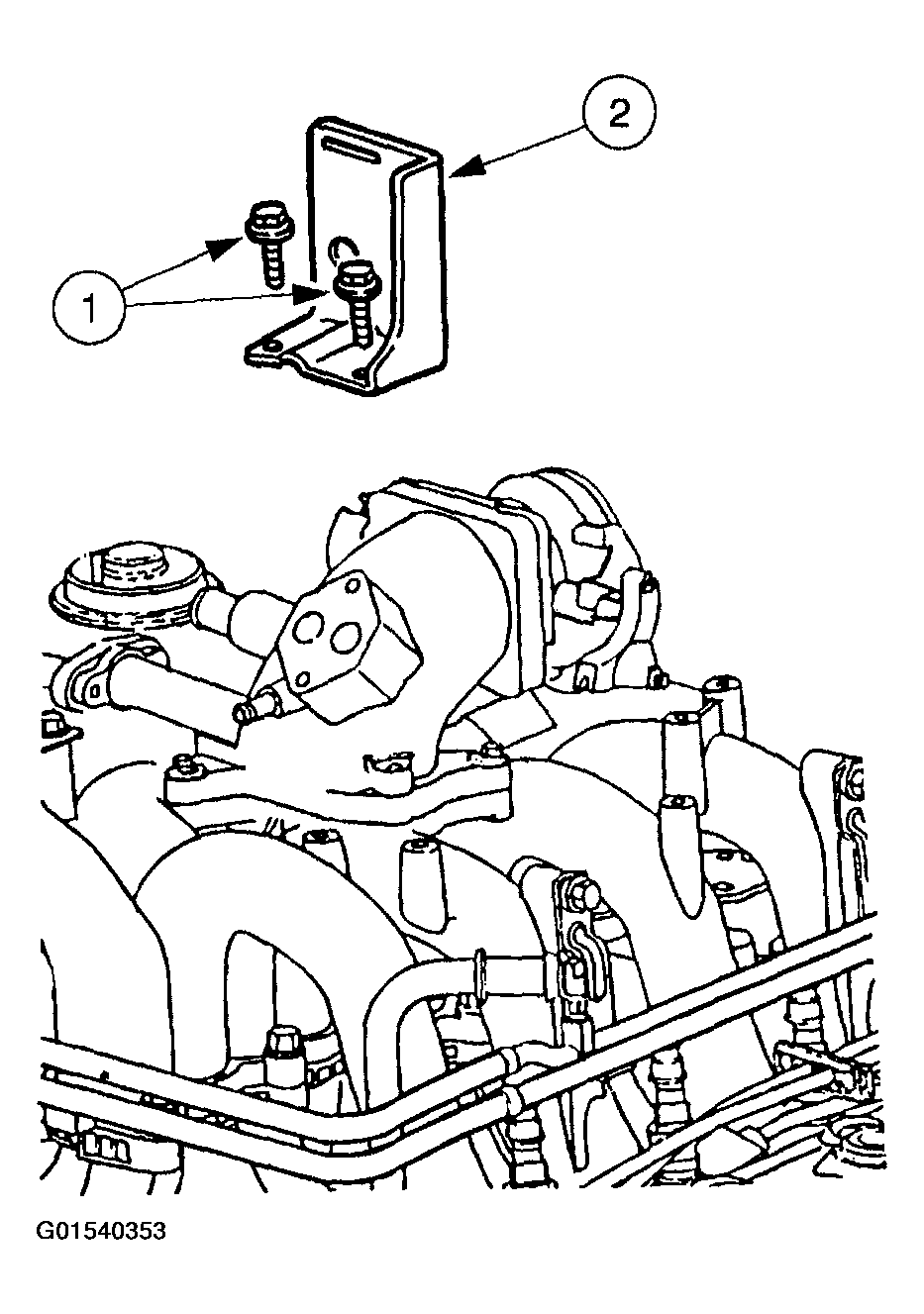

Fig 5: Removing Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

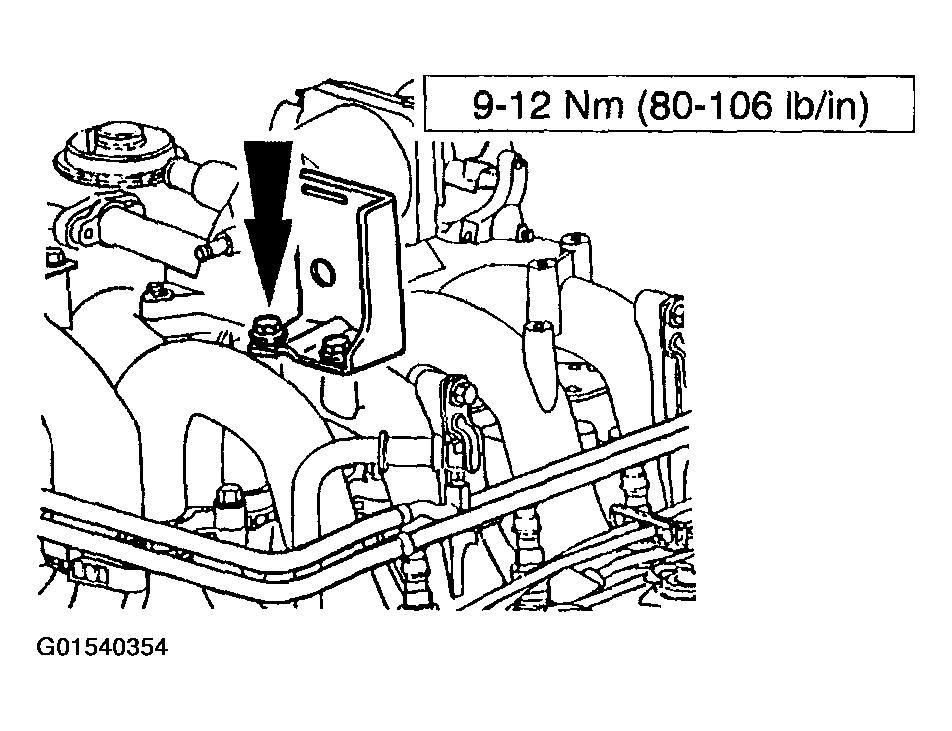

Fig 6: Accelerator Cable Bracket Bolt Torque Specification
Courtesy of FORD MOTOR CO.
