Climate Control System Electrical Components - Directly Linked to DATC Module
WARNING:
This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

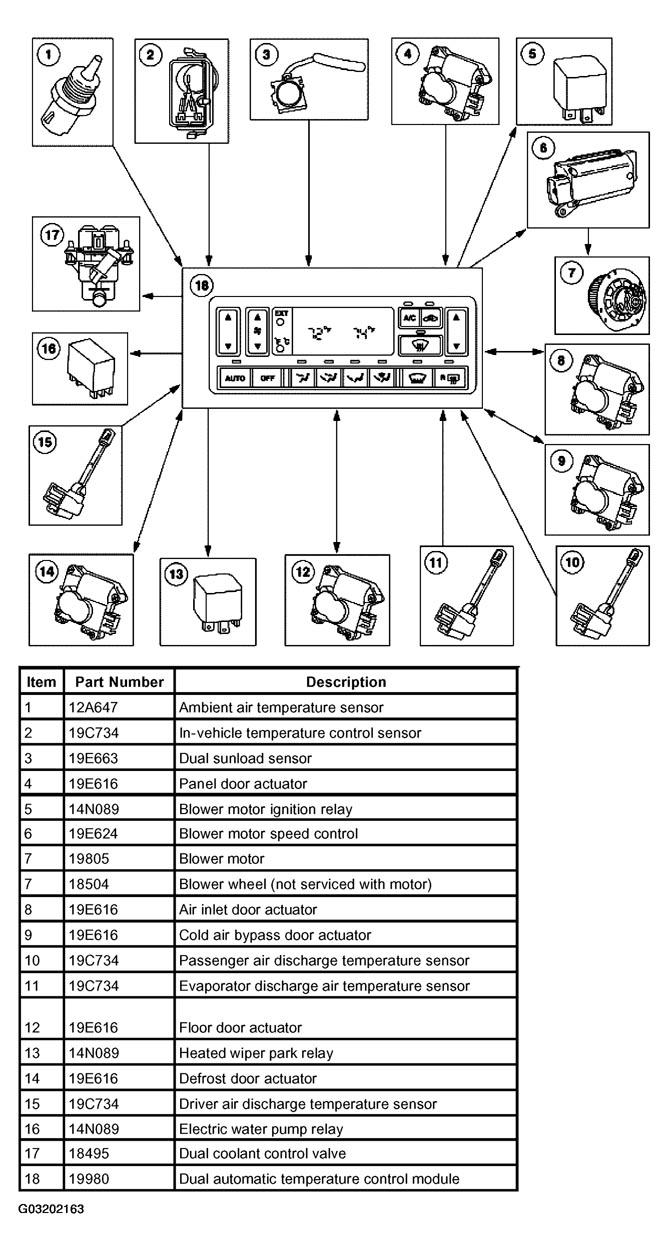

Fig 1: Identifying Climate Control System Electrical Components - Directly Linked To DATC Module
Courtesy of FORD MOTOR CO.
