Anti-lock Brake System Module C155
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

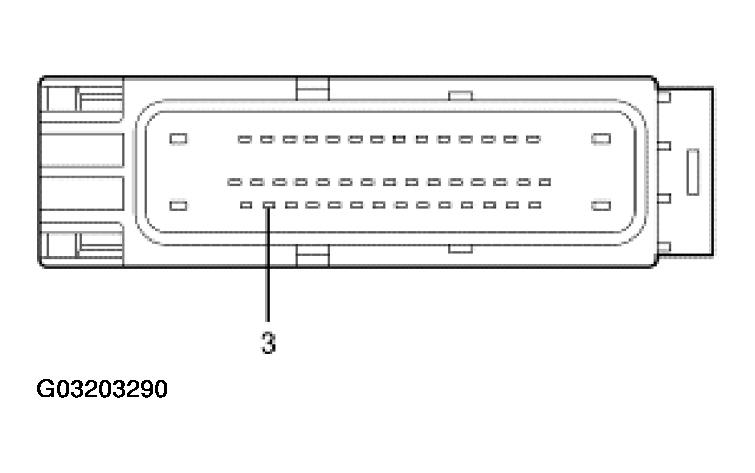

C155 CONNECTOR REFERENCE CHART
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 8-CF63 (WH/GN) vehicle speed signal | Less than 5 ohms between the anti-lock brake system module and the navigation system module with the navigation system module disconnected. Greater than 10,000 ohms between the anti-lock brake system module and ground with the navigation system module disconnected. |
