Compass Calibration

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: For optimum calibration, drive to an open, level location away from large metallic objects or structures. Switch off all non-essential electrical accessories (rear window defrost, heater, A/C, map lamps and wipers) and make sure all doors are shut.

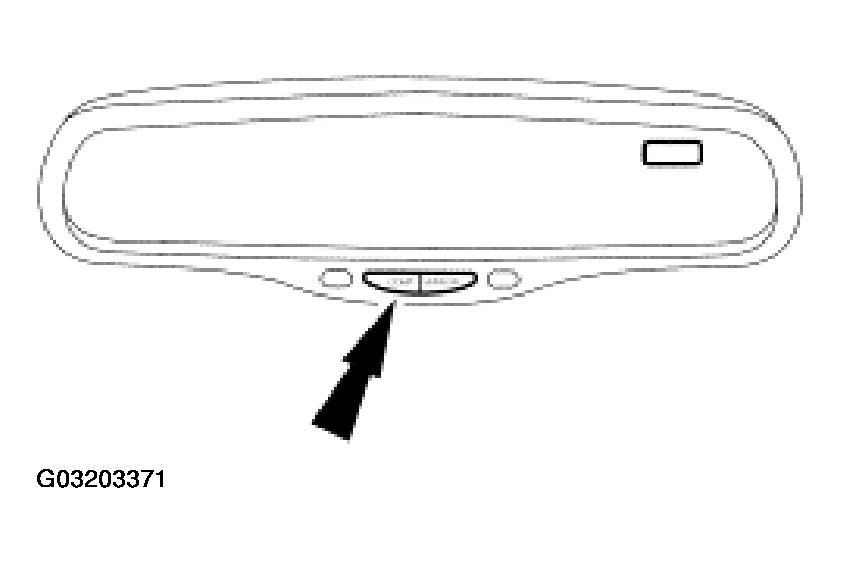

    Fig 1: Pressing And Hold Comp Button
    G03203371Courtesy of FORD MOTOR CO.
  1. Press and hold the COMP button until C or CAL is displayed (six seconds). Release the COMP button.
  2. Drive the vehicle at less than 8 km/h (5 mph) in a continuous circle until the compass heading is shown.
  3. If the C or CAL message does not turn off within five circles, demagnetize the vehicle. Refer to VEHICLE DEMAGNETIZING .
