Exhaust Manifold - Inspection

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

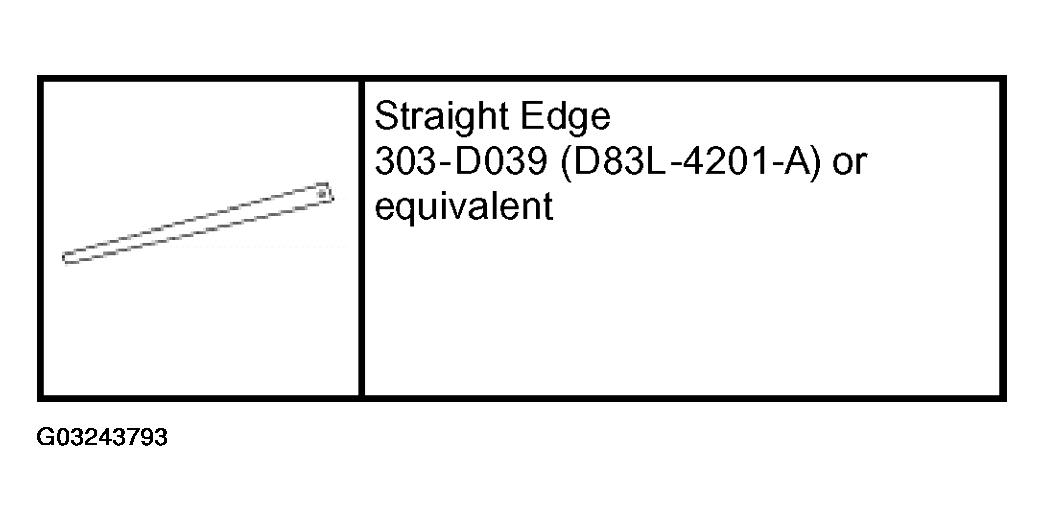

Fig 1: Identifying Special Tool(s)
G03243793Courtesy of FORD MOTOR CO.
  1. Place a straight edge across the exhaust manifold flanges and check for warping with a feeler gauge.

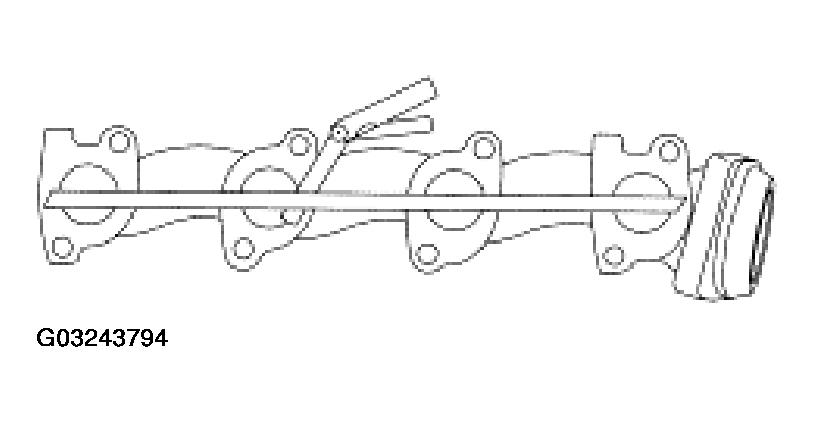

Fig 2: Checking Exhaust Manifold Flatness
G03243794Courtesy of FORD MOTOR CO.
