Blower Motor - Front

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Lower the glove compartment.
Detach the electrical connector.

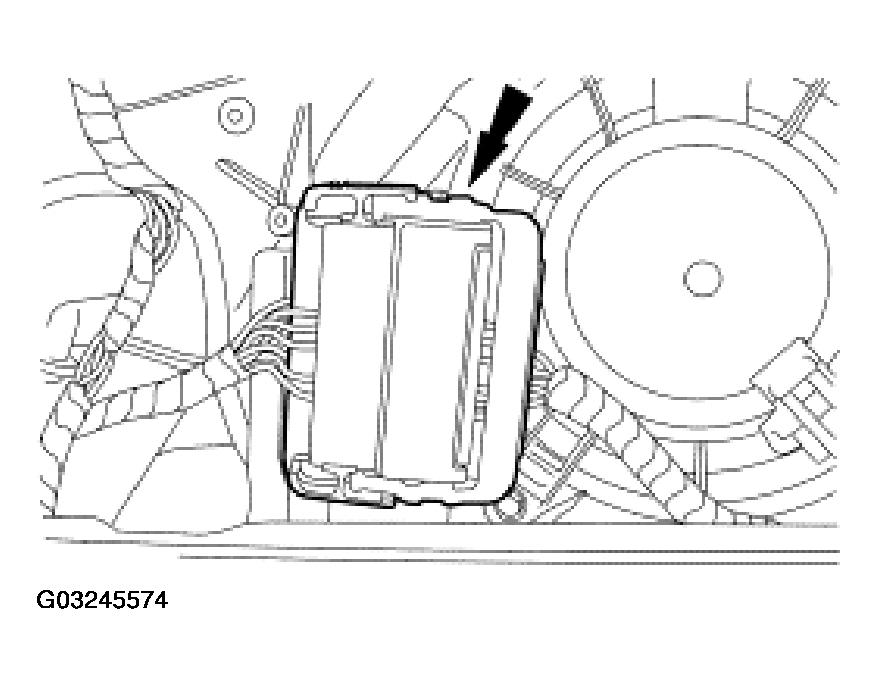

Fig 1: Detaching Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the parts in the order indicated in the following illustration and table.

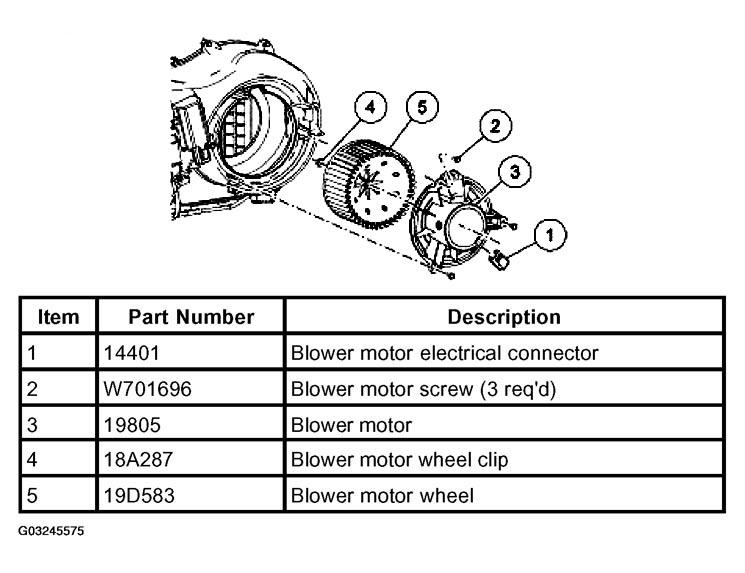

Fig 2: Front Blower Motor - Components Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
