Vehicle Security Module: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

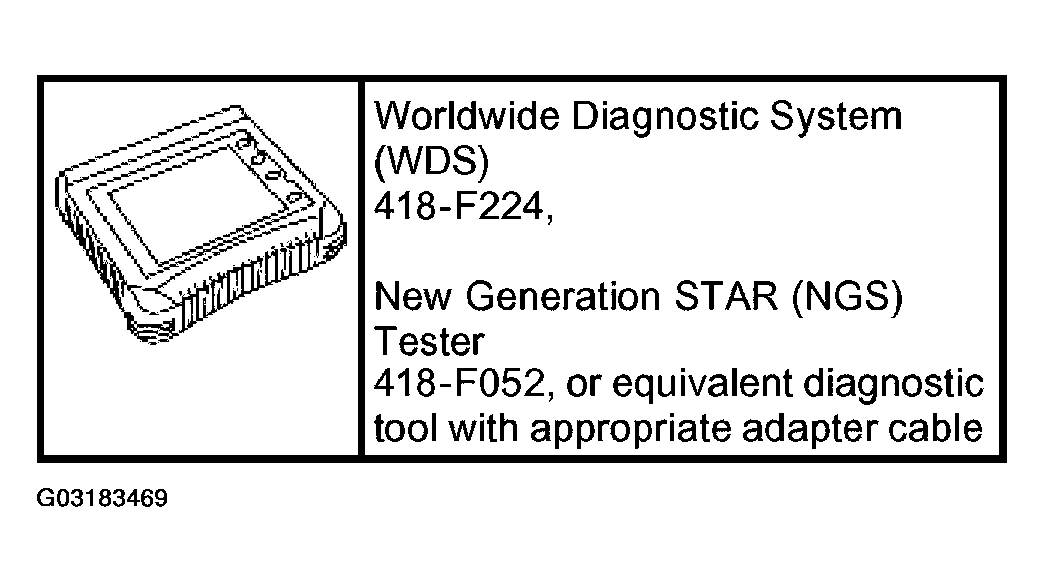

Fig 1: Identifying Special Tool(S)

Courtesy of FORD MOTOR CO.

CAUTION: Prior to removal of the vehicle security module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to MODULE CONFIGURATION .

Remove the right rear quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR
Remove the parts in the order indicated in the following illustration and the table.

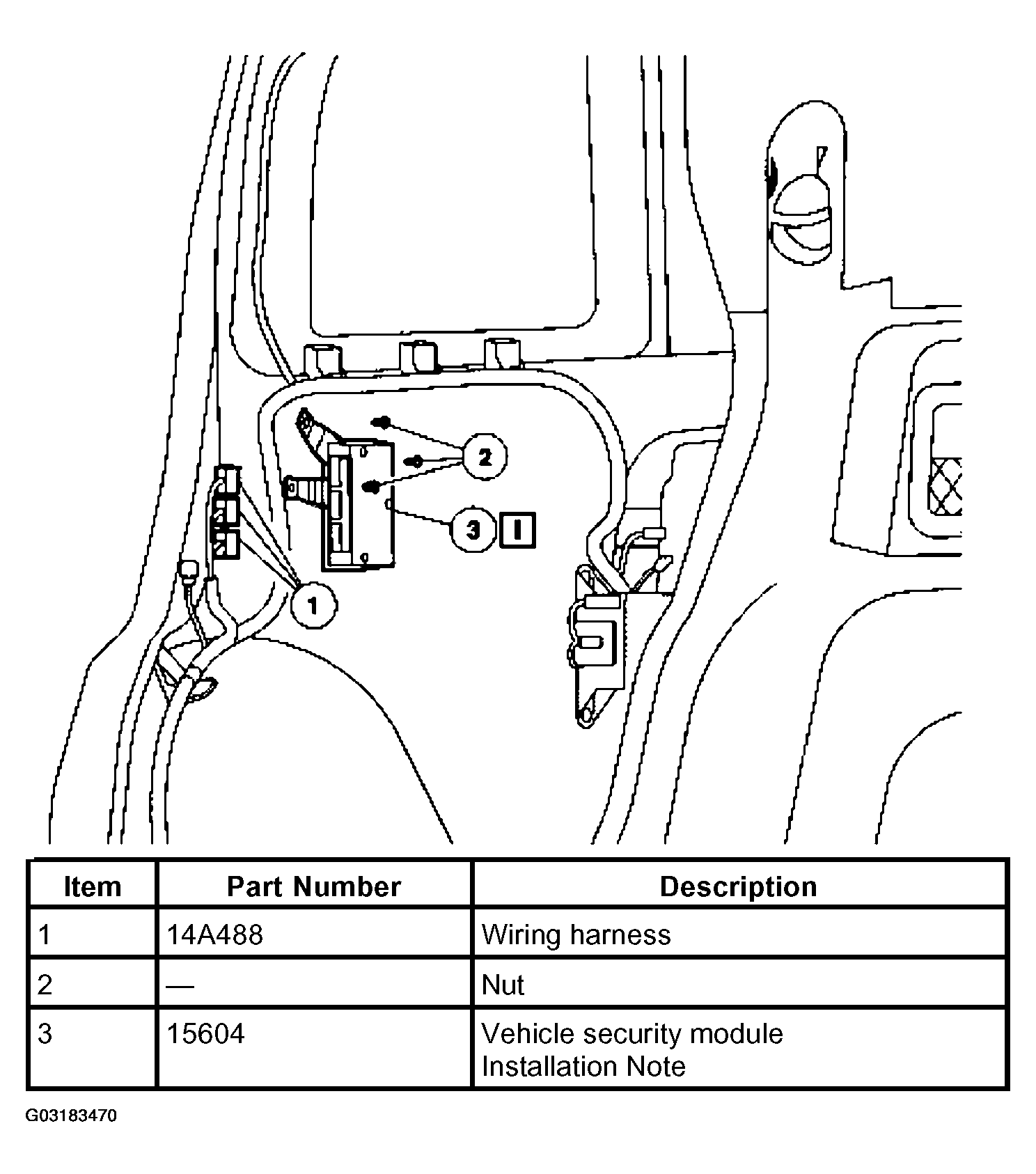

Fig 2: Removing Vehicle Security Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
