Master window/door lock/unlock switch

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

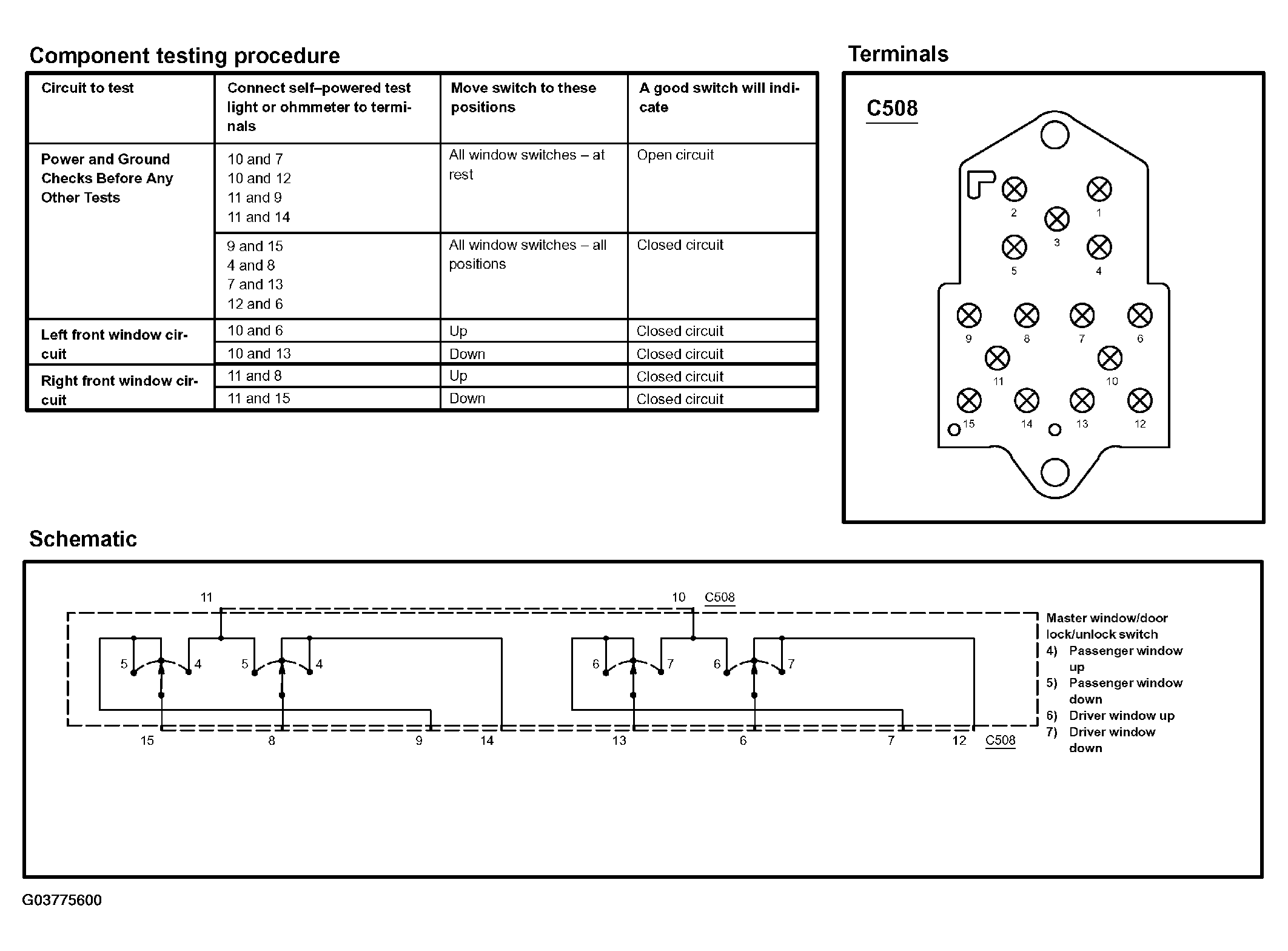

Fig 1: Testing Master Window/Door Lock/Unlock Switch
G03775600Courtesy of FORD MOTOR CO.

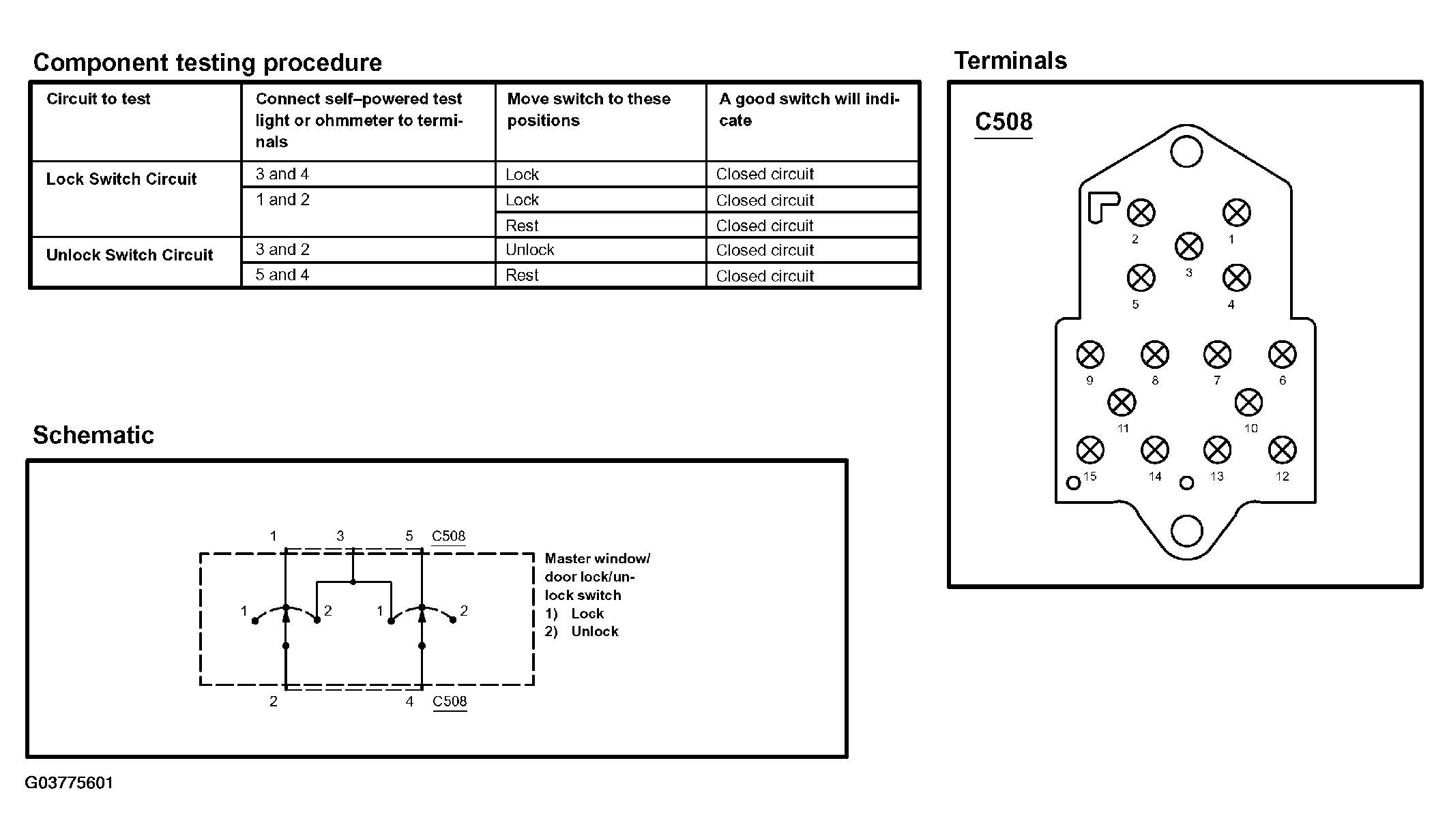

Fig 1: Testing Master Window/Door Lock/Unlock Switch
G03775601Courtesy of FORD MOTOR CO.

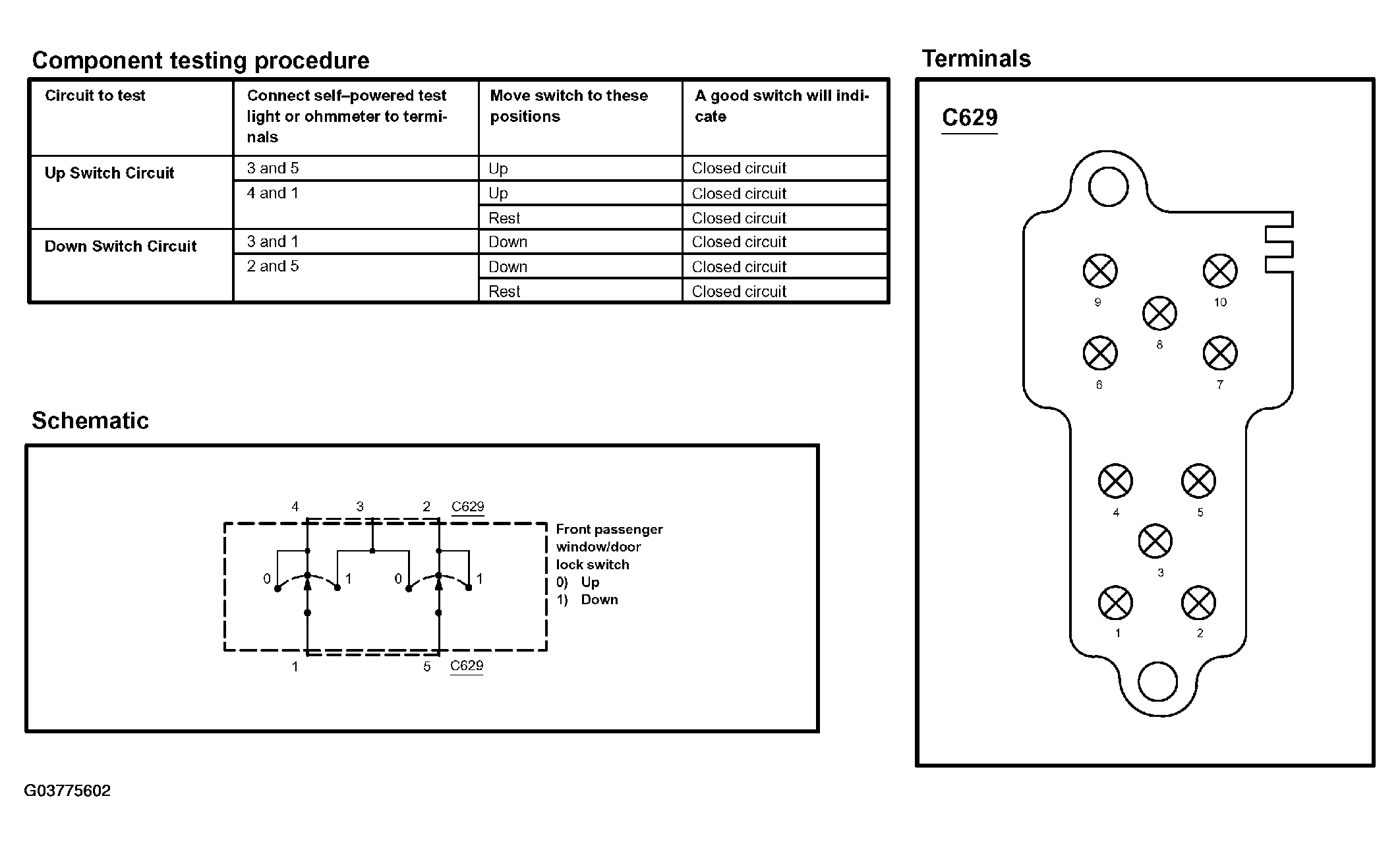

Fig 1: Testing Master Window/Door Lock/Unlock Switch
G03775602Courtesy of FORD MOTOR CO.

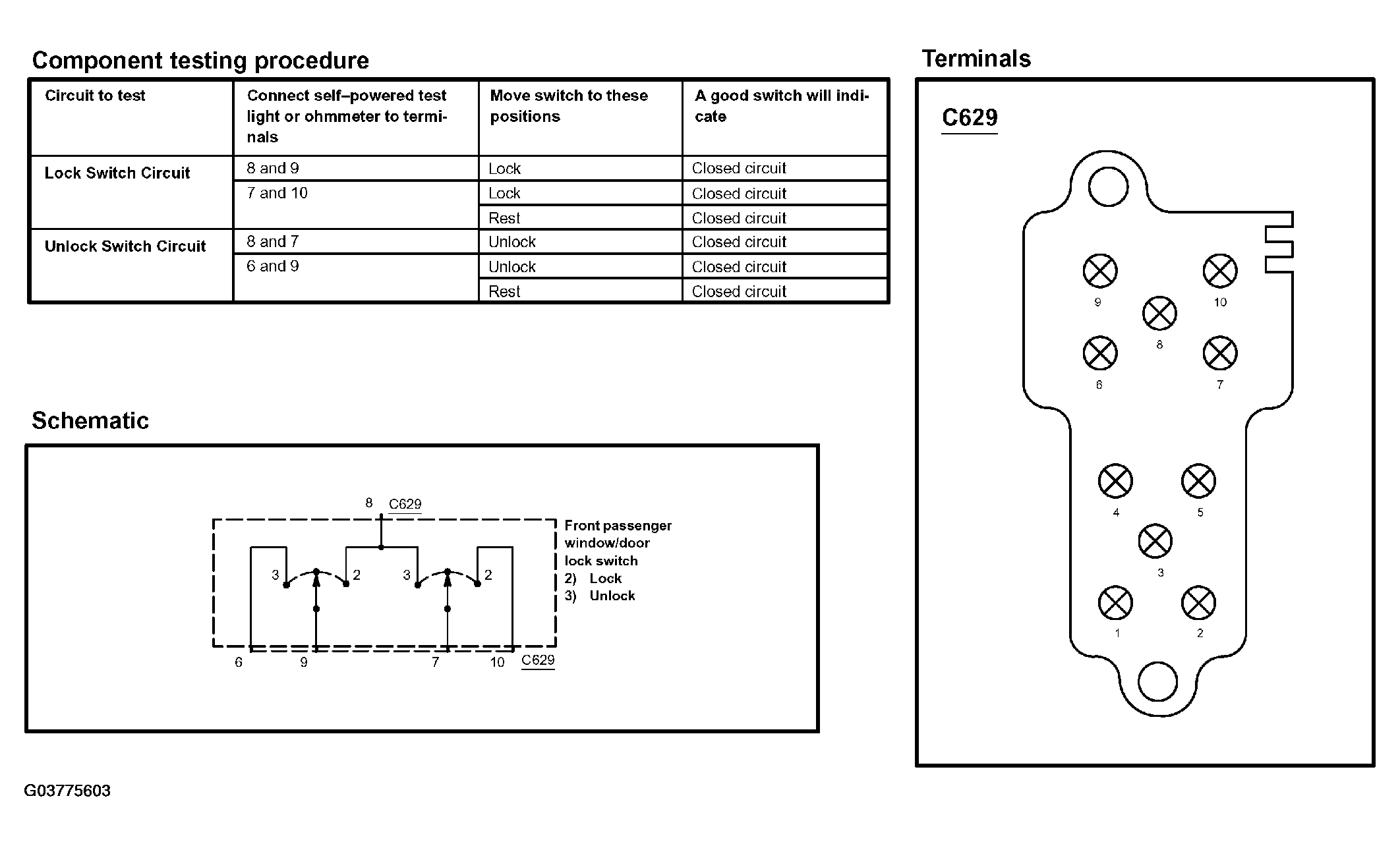

Fig 1: Testing Master Window/Door Lock/Unlock Switch
G03775603Courtesy of FORD MOTOR CO.
