Multifunction Switch, Lamp Portion

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

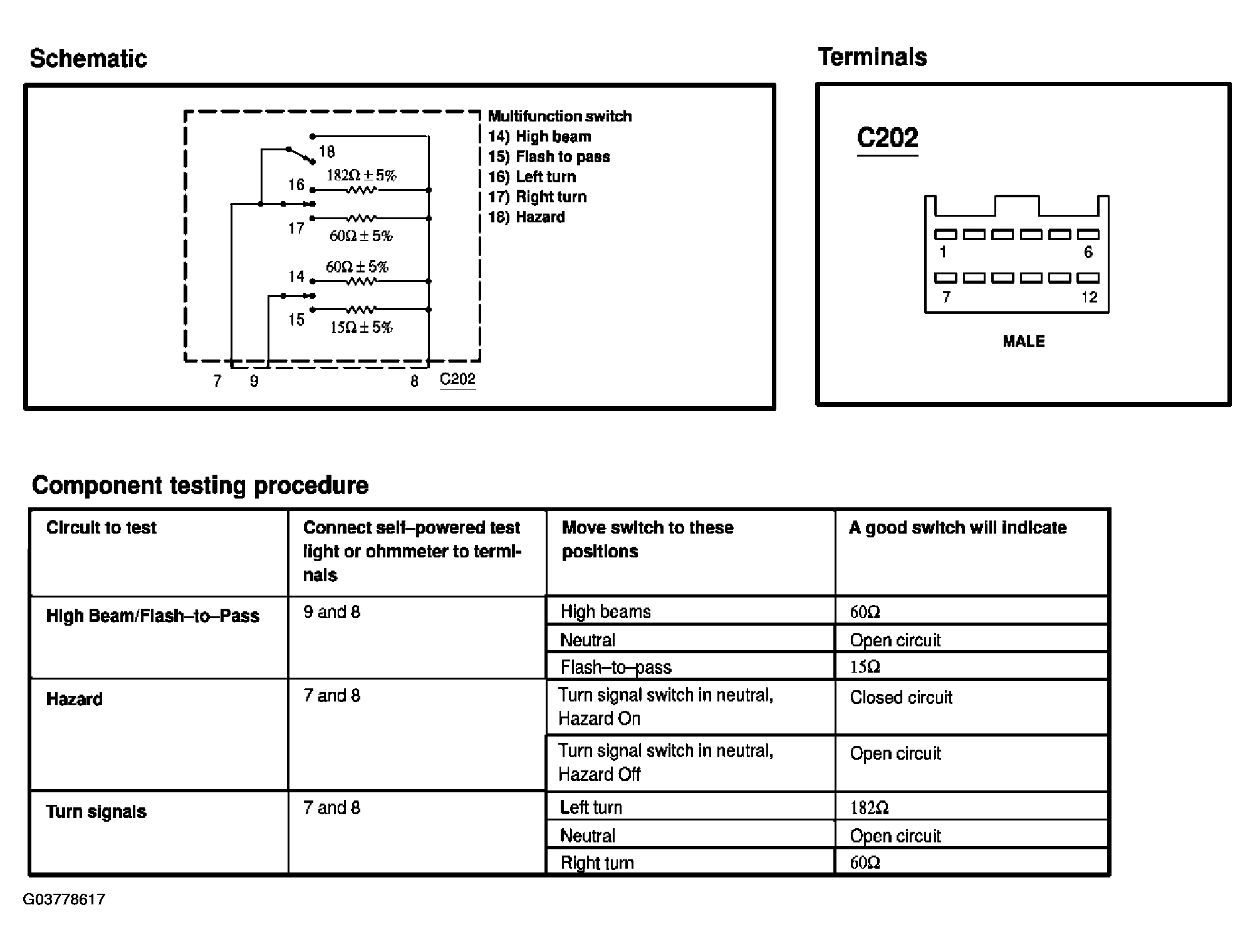

Fig 1: Testing Multifunction Switch, Lamp Portion
G03778617Courtesy of FORD MOTOR CO.
