Coil Spring & Strut Assembly: Installation

To install, reverse removal procedure. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS . Check and adjust front end alignment as necessary. See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

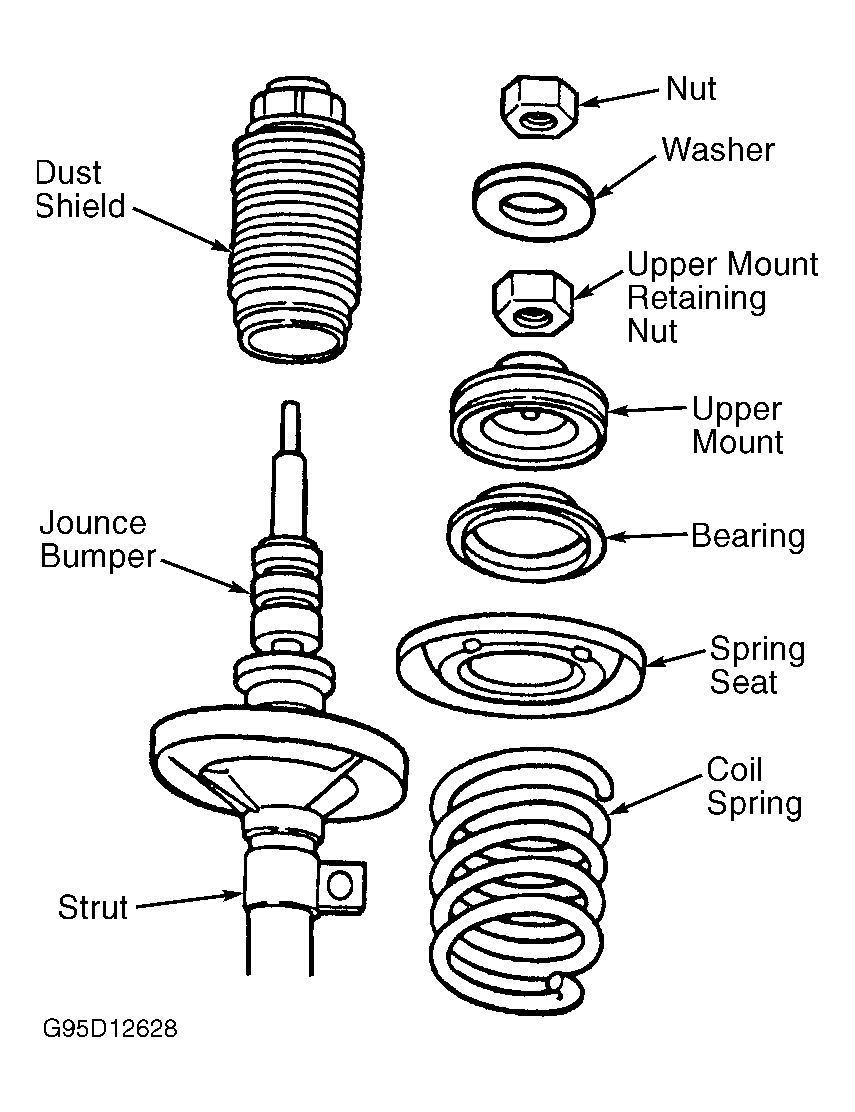

Fig 1: Exploded View Of Front Strut Assembly

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Upper & Lower Strut Rod Bushings

Courtesy of CHRYSLER CORP.
