Power Seat Control Module: Service and Repair

REMOVAL
1. Remove the seat. For additional information, refer to Seat-Captain's Chair.

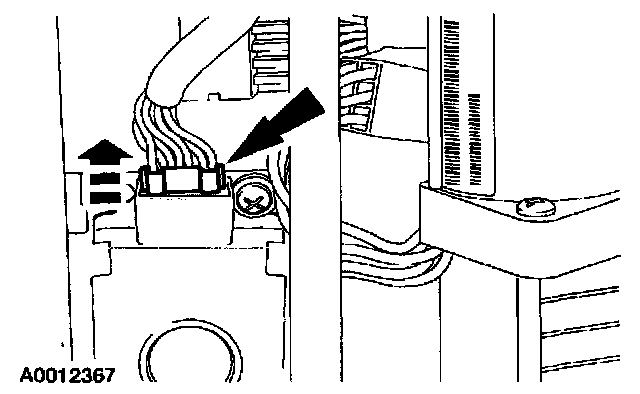

2. Disconnect the electrical connector.

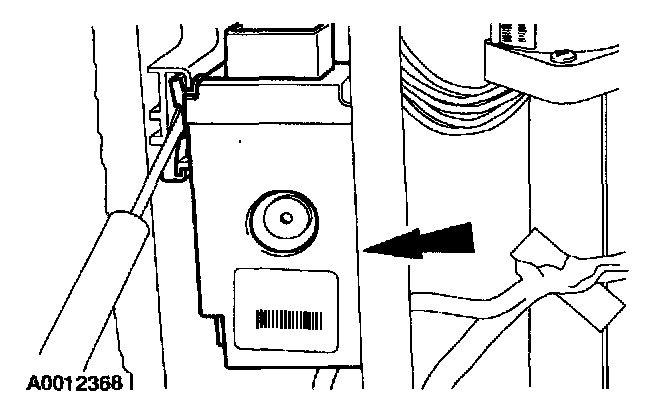

3. Release the seat module locking tabs then remove the seat module.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
