Front

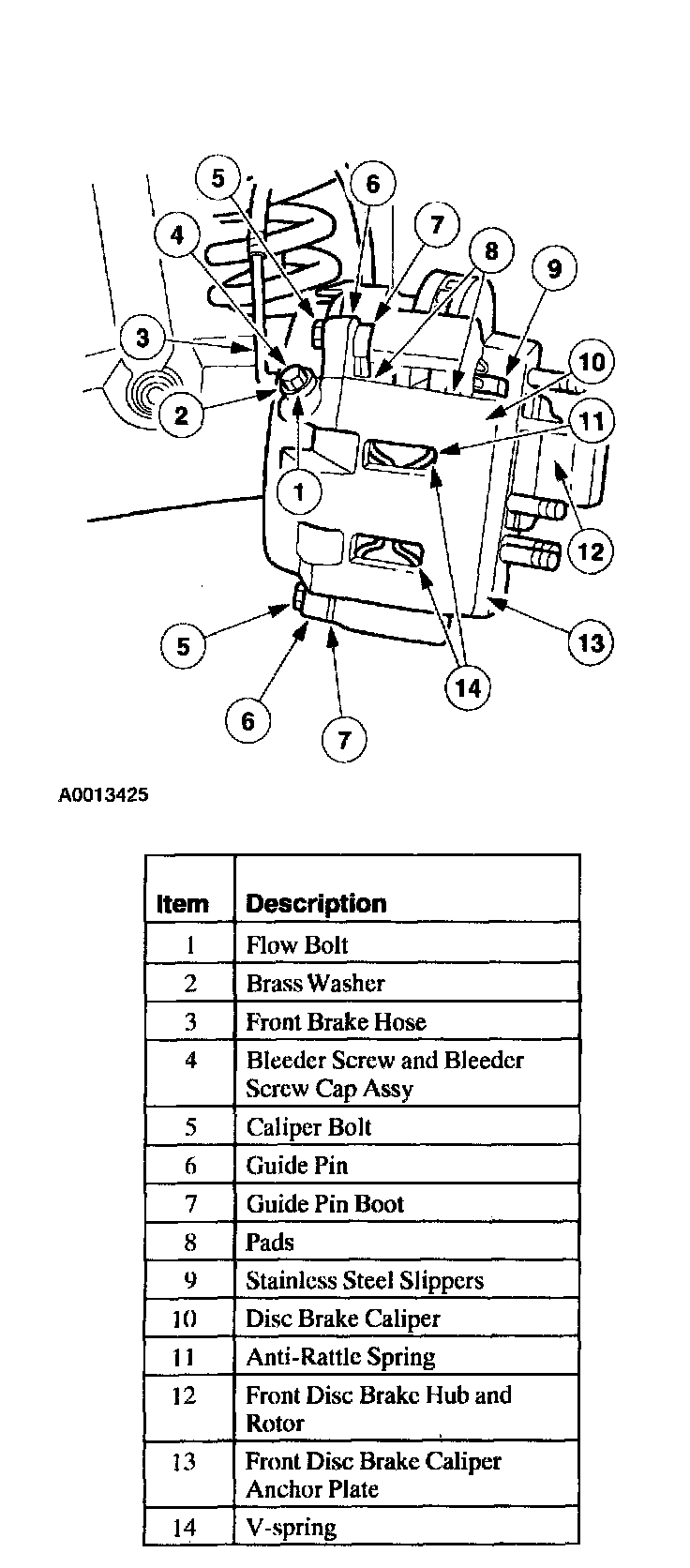

Front Disc Brake Components - F-250, F-350 4x2:





Front Disc Brake Components - F-250, F-350 4x2

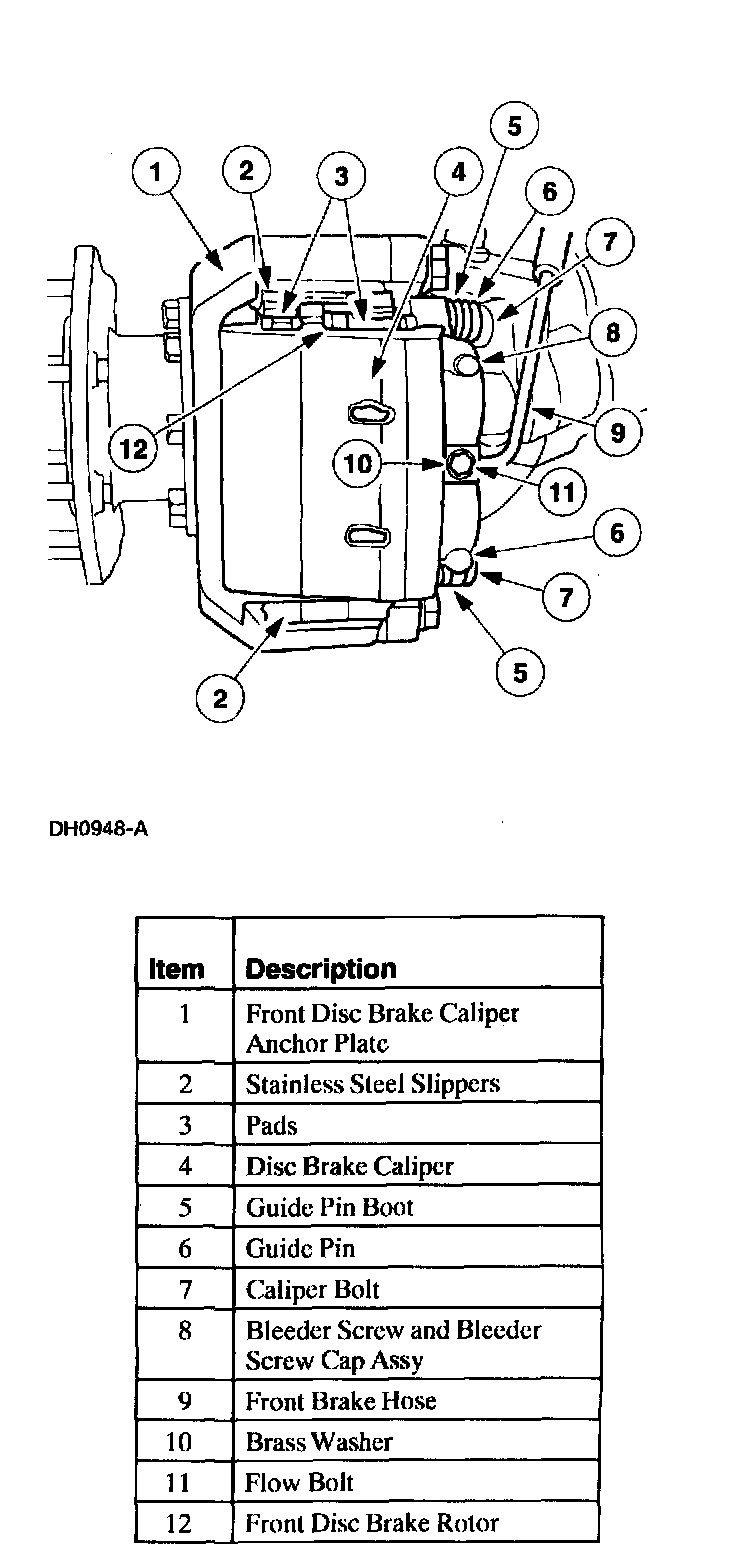

Front Disc Brake Components - F-250, F-350 4x4 and F-450, F-550, Motorhome Chassis:





Front Disc Brake Components - F-250, F-350 4x4
