Reference Value Symptom Chart





Reference Value Symptom Chart

The Reference Value Symptom Chart is used to provide guidance in selecting the appropriate PID or measured signal related to the fault area. Select a symptom from the symptom chart along with the category number and proceed to the PID/Measured Signal Chart. For multiple symptoms, select the most evident.

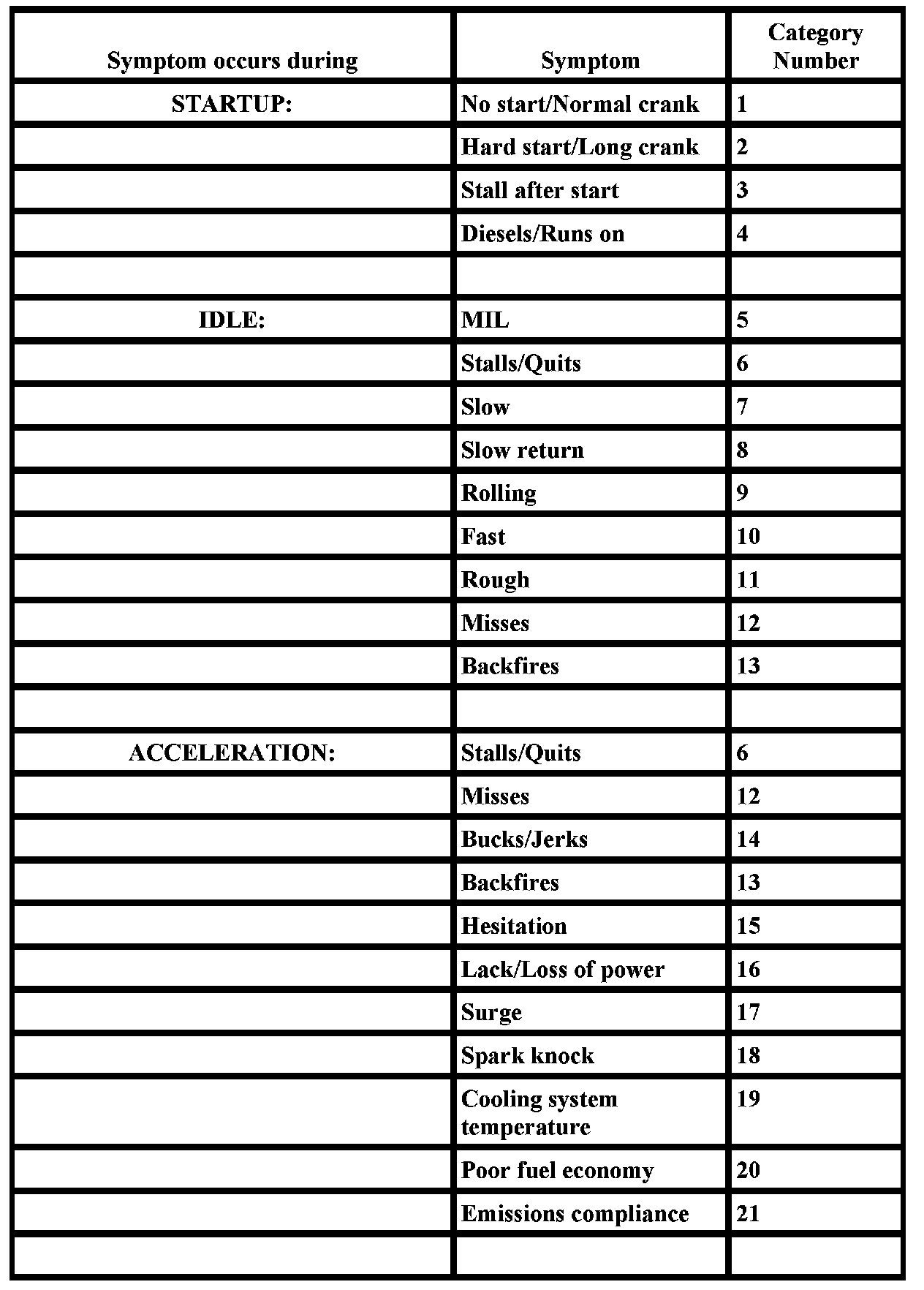

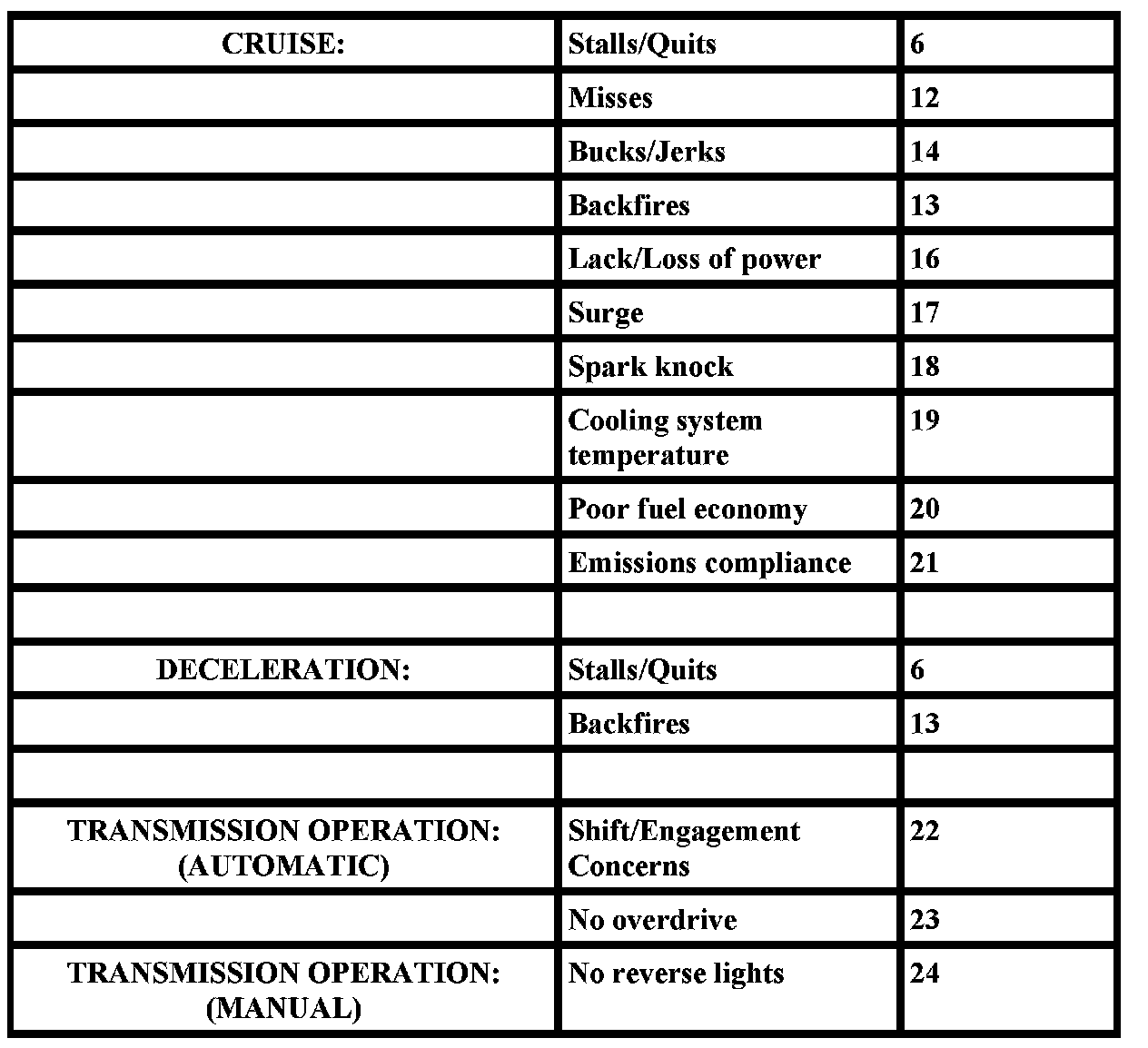

Symptom Chart
