Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

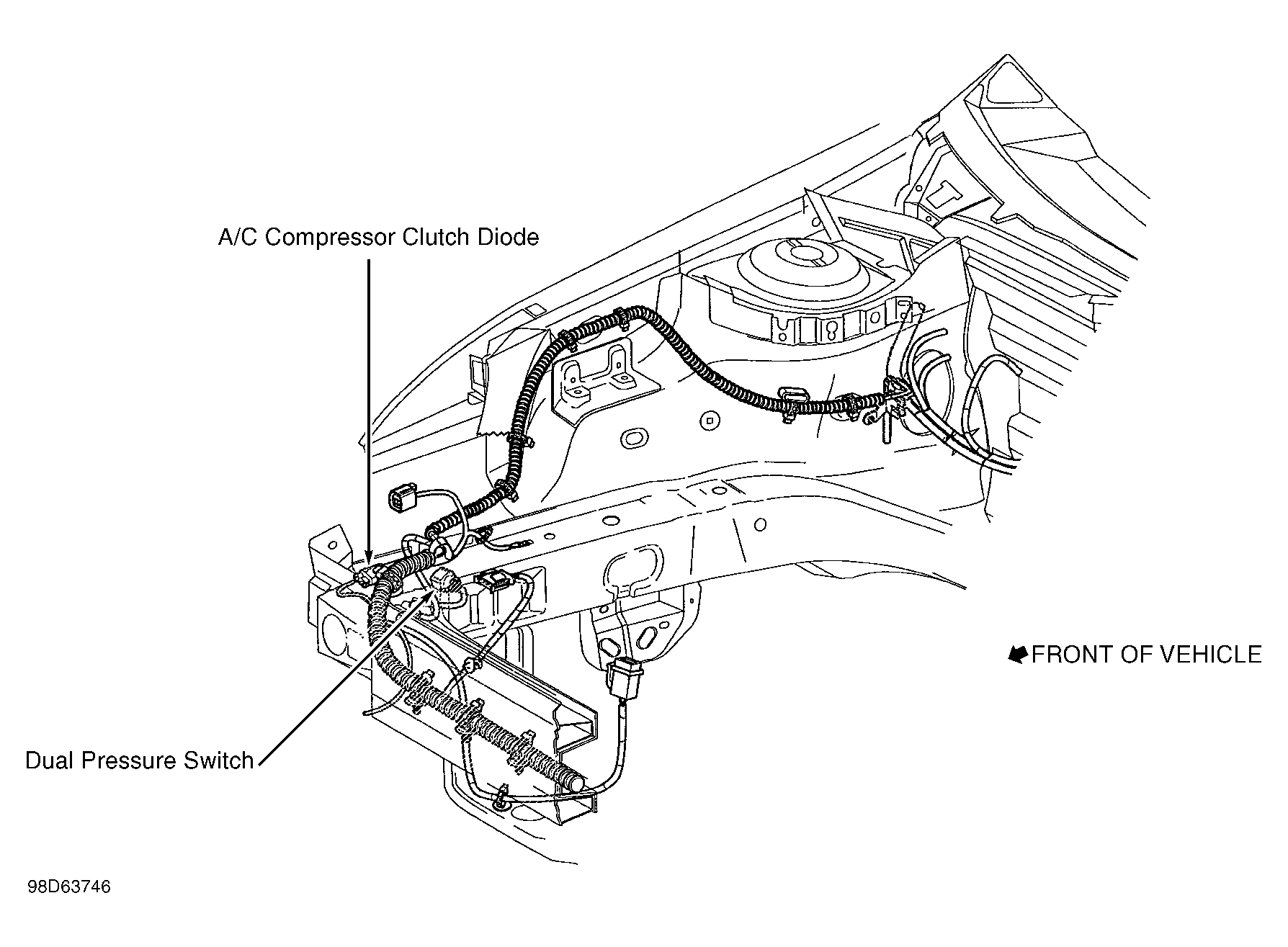

| A/C Compressor Clutch Diode | In right front corner of engine compartment. See Figure. |

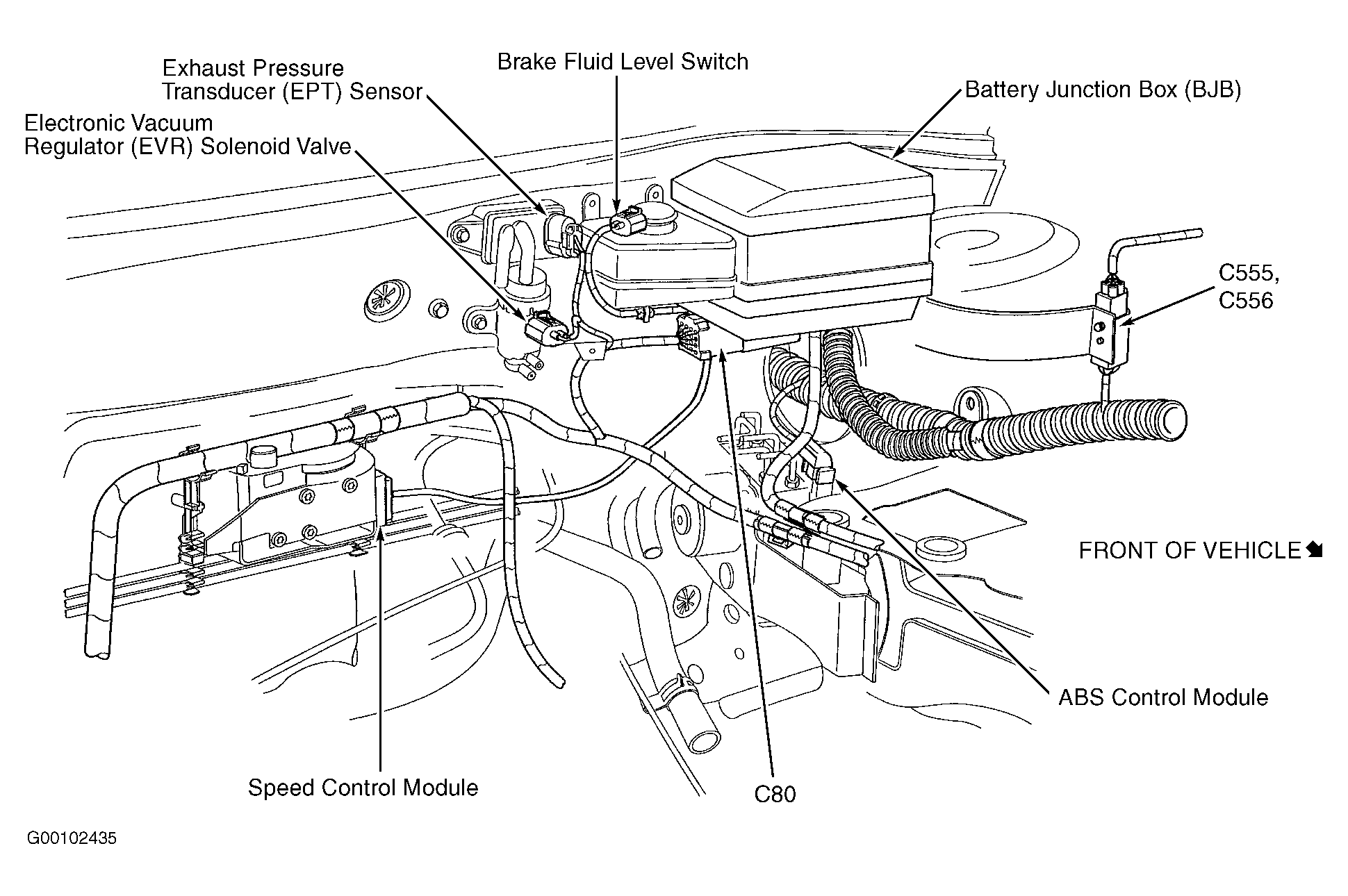

| Battery Junction Box (BJB) | In left rear corner of engine compartment. See Figure. |
| Central Junction Box (CJB) | Behind left side of dash. |
| Diode | In battery junction box. |
