Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | In left rear corner of engine compartment, under master cylinder. See Figure. |
| Air Bag Diagnostic Monitor | Under center console, forward of park brake lever. |
| Central Timer Module | On rear of central junction box. |

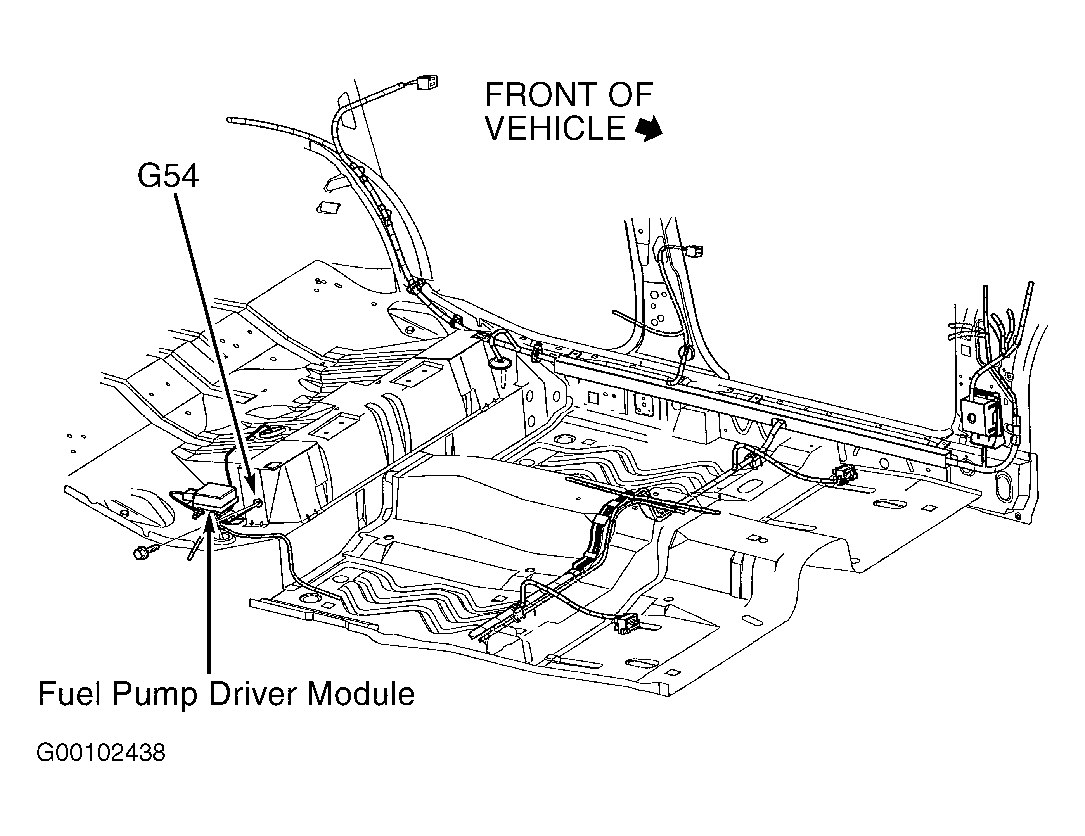

| Fuel Pump Driver Module | Under right rear seat. See Figure. |

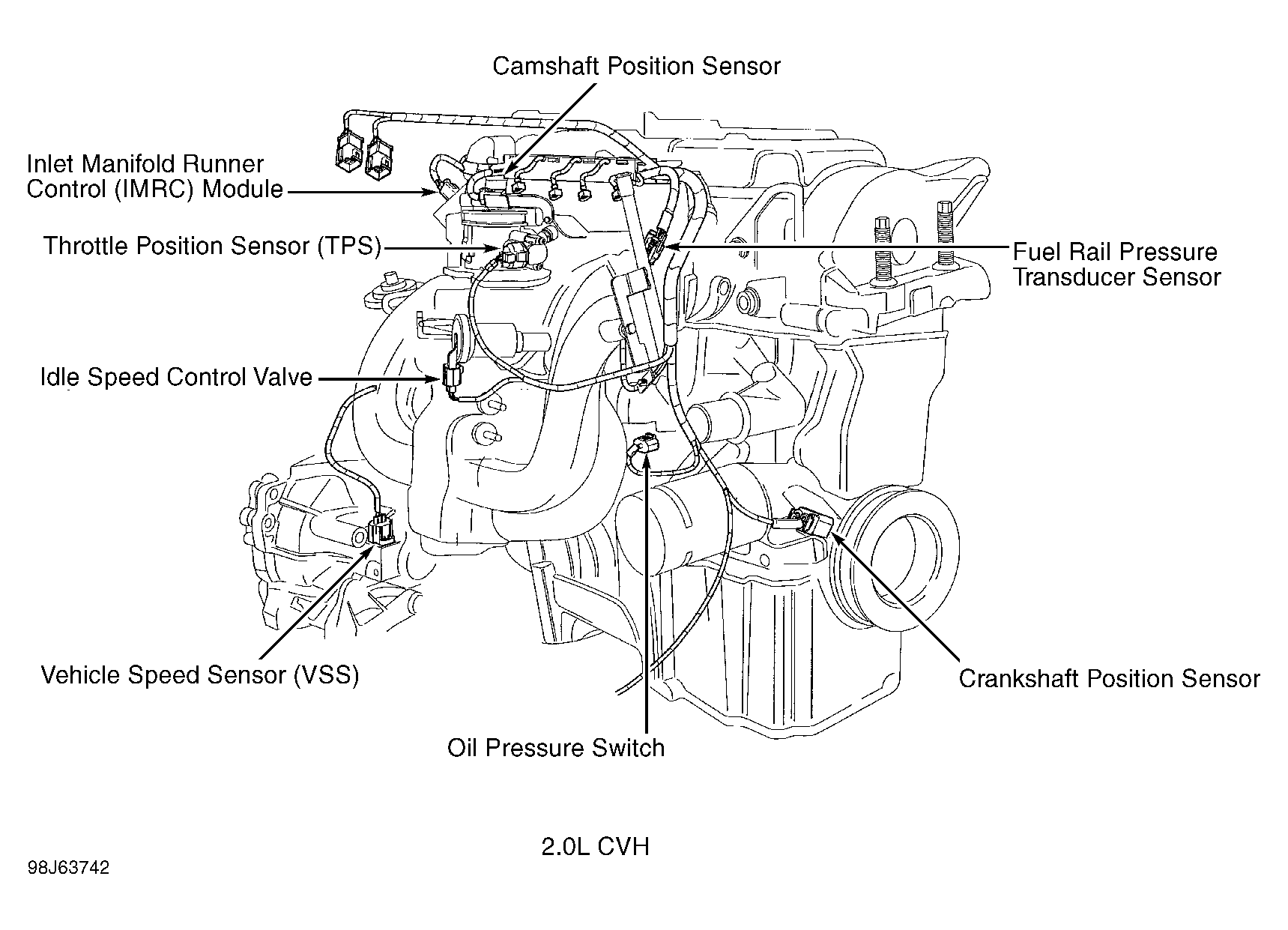

| Inlet Manifold Runner Control (IMRC) Module (2.0L CVH) | On right rear of engine. See Figure. |
| Passive Anti-Theft Transceiver Module | On upper right side of steering column. |
| Powertrain Control Module (PCM) | Behind right side of dash, at base of "A" pillar. |
| Side Air Bag Module (Left) | Under left front seat. |
| Side Air Bag Module (Right) | Under right front seat. |
| Speed Control Module | On center of firewall. See Figure. |
